C. To secure lower sash in place, attach right angle sash
lockwith3/4″(19mm)or1/2″(12.7mm)screwas
shown (Fig. 9).
D. Cut window sash seal foam and insert it in the space
between the upper and lower sashes (Fig. 10).
IF AC IS BLOCKED BY A
STORM WINDOW
Add wood as shown in Fig.11, or remove storm window
before air conditioner is installed.
If storm window frame must remain, be sure the
drainholesorslotsarenotcaulkedorpaintedshut.
Accumulated rain water or condensation must be
allowed to drain out.
REMOVING AC FROM WINDOW
● TurnACo,anddisconnectpowercord.
● Removesashsealfrombetweenwindows,and
unscrewsafetysashlock.
● Removescrewsinstalledthroughframeand
frame-lock.
● Close(slide)sideaccordionpanelsintoframe.
● Keepingarmgriponairconditioner,raisesashand
carefully remove.
● Becarefulnottospillanyremainingwater
while lifting unit from window. Store parts WITH
air conditioner.

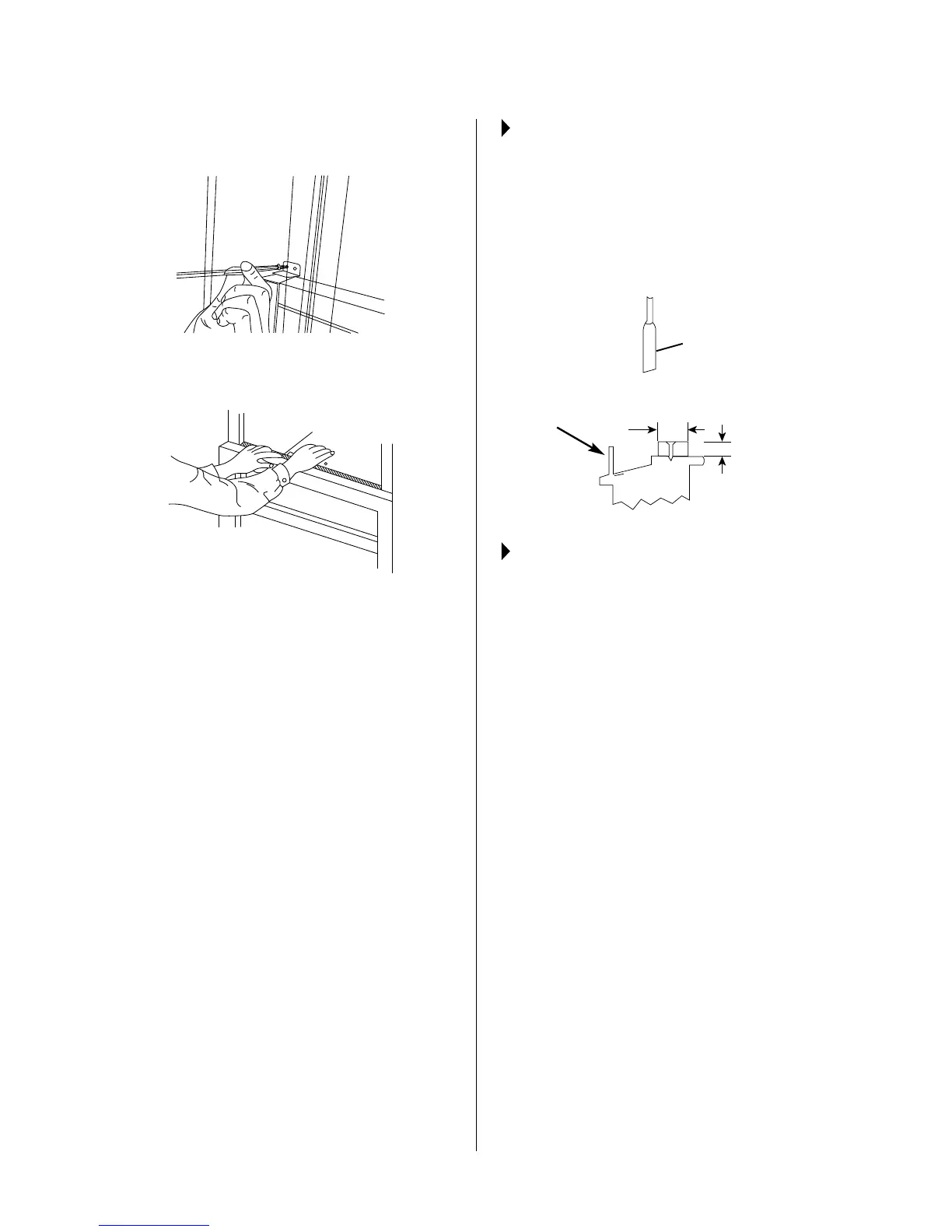

FIG. 9
FIG. 10
Foam Seal
FIG. 11
Sash
Storm window
frame or other
obstruction.
1½″ min
(38 mm)
Board thickness
as required, for
proper pitch to
rear, along entire
sill. Fasten with
nails or screws.
