BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT- Save these instructions.
IMPORTANT-Observeallgoverningcodes
and ordinances.
Note to Installer- Be sure to leave these instructions with
the Consumer.
Note to Consumer- Keep these instructions for future
reference.
Skill level-Installationofthisappliancerequiresbasic
mechanicalskills.
Completion time- Approximately 1 hour.
We recommend that two people install this product.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the Warranty.
YouMUSTuseallsuppliedpartsanduseproper
installation procedures as described in these
instructions when installing this air conditioner.

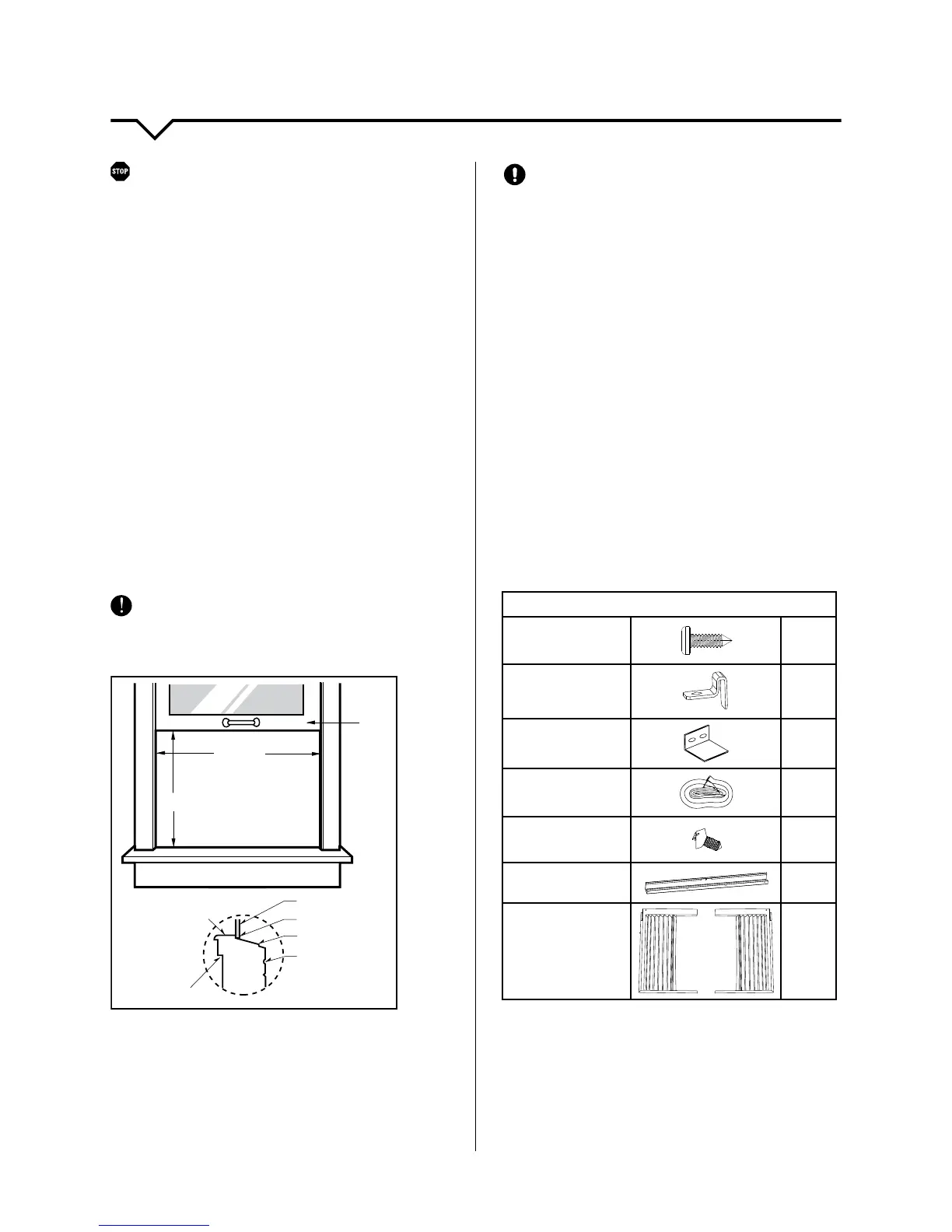

WINDOW REQUIREMENTS
Yourairconditionerisdesignedtoinstallinstandard
double hung windows with opening widths of 23 to 36
inches (584 mm to 914 mm).
Inner sill
Offset
Window
Sill
Exterior
Interior wall
23–36 in.
14 in.
Sash
CAUTION
DO NOT, under any circumstances, cut or remove the
third (ground) prong from the power cord.
DO NOT change the plug on the power cord of the air
conditioner.
Aluminum house wiring may present special problems-
consultaqualiedelectrician.
When handling unit, be careful to avoid cuts from sharp
metaledgesandaluminumnsonfrontandrearcoils.
TOOLS YOU WILL NEED
● PhillipsScrewdriver
● Level
TOOLS YOU MAY NEED
● FlatheadScrewdriver
● Pencil
● RulerorTapeMeasure
● ScissorsorKnife
HARDWARE
Included-packedwiththeunit.
(Included - Packed with the Unit)
3/4ʺ(or1/2ʺ)
Screws
3/4ʺ (or 1/2ʺ)
Screws (7 pcs)
Lock Frame
(2 pcs)
Sash Lock
(1 pc)
Window
Sash Seal
Foam (1 pc)
Weather Stripping
10ʺx
3
/4ʺx
1
/12ʺ
(5 pcs)
7 pcs
LockFrame
3/4ʺ (or 1/2ʺ)
Screws (7 pcs)
Lock Frame
(2 pcs)
Sash Lock
(1 pc)
Window
Sash Seal
Foam (1 pc)
Weather Stripping
10ʺx
3
/4ʺx
1
/12ʺ
(5 pcs)
2 pcs
SashLock
1 pc
Window Sash Seal
Foam
3/4ʺ (or 1/2ʺ)
Screws (7 pcs)
Lock Frame
(2 pcs)
Sash Lock
(1 pc)
Window
Sash Seal
Foam (1 pc)
Weather Stripping
10ʺx
3
/4ʺx
1
/12ʺ
(5 pcs)
1 pc
3/8ʺScrews
3/8" Screws
(4 pcs)
Top Rail
(1 pc)
Insulation
Panels (2 pcs)
4 pcs
Top Rail
3/8" Screws
(4 pcs)
Top Rail
(1 pc)
Insulation
Panels (2 pcs)
1 pc
Accordion Panels
(one left, one right)
1 set
