PABX TC-2000 A - Page 5

- 3 -
Model: TC-2000H

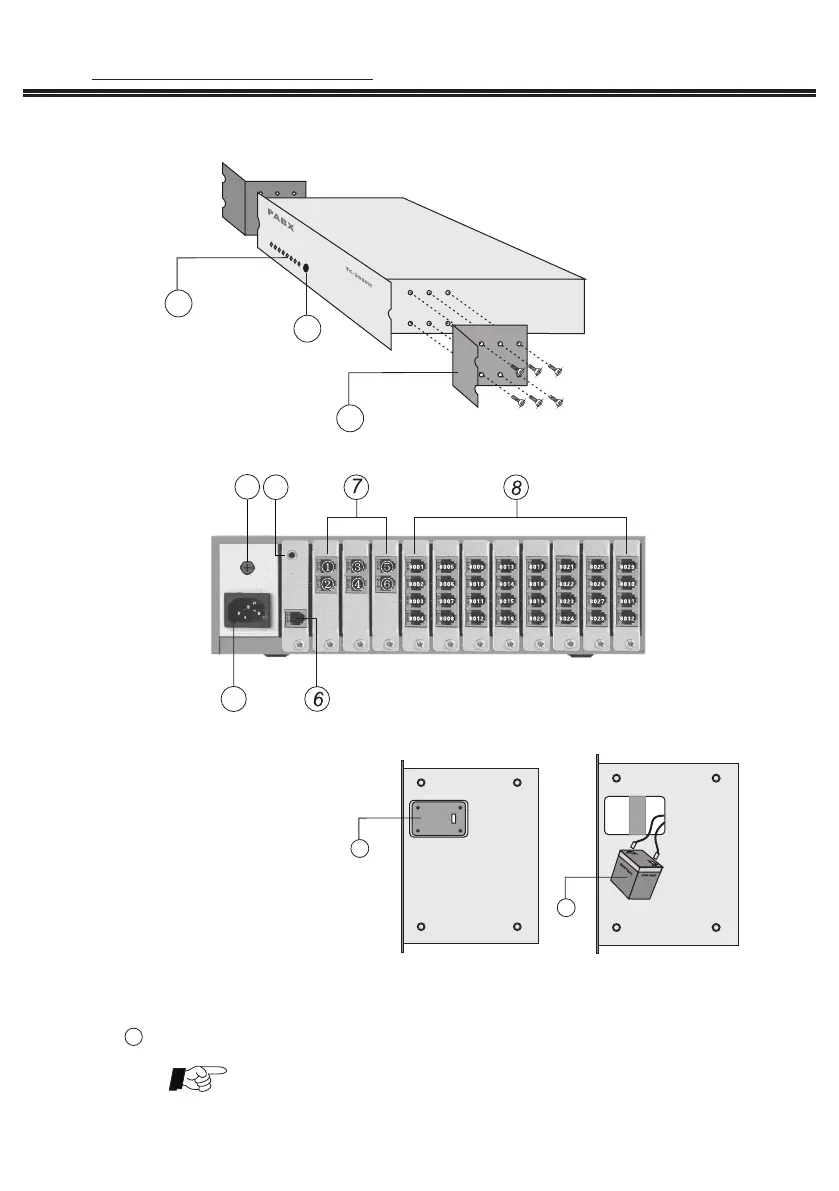

Side View
2
1
9
①----LED
②----Power Switch
③----Power Socket
④----Power fuse
⑤----External Music Input Port
⑥----COM Port
⑦----CO lines
⑧---- Extensions
⑨---- Expandable panel for rack mount (optional)
⑩---- Back up battery box
---- 6v 4.5A/h Battery ( optional)
11
+
-
10
11
Bottom View
Chapter 1: Brief Introduction
Model TC-2000H is support our PC Billing software, please install
supplied software to learn details.
Back view
3
4
5
