Maintenance Procedures
Centrifugal Bypass Oil Filter
Installation
6. Tighten
the screw cap by hand
until it reaches the end position.
WARNING!
Lubricating oil can cause skin irrita-
tion or skin injury. To prevent skin in-
jury, avoid unnecessary contact with
the lubricating oil. Wear protective
clothing, eye wear and gloves when
handling lubricating oil. Failure to
comply may result in personal injury.
7. Tighten the screw cap to 354 lb-in
(40 Nm). Use a hexagonal socket
to avoid damaging the oil lter cap.
1. Lightly lubricate
the O-ring (1) with
engine oil.
2. Fit the
new O-ring (1) onto the cap
(2).

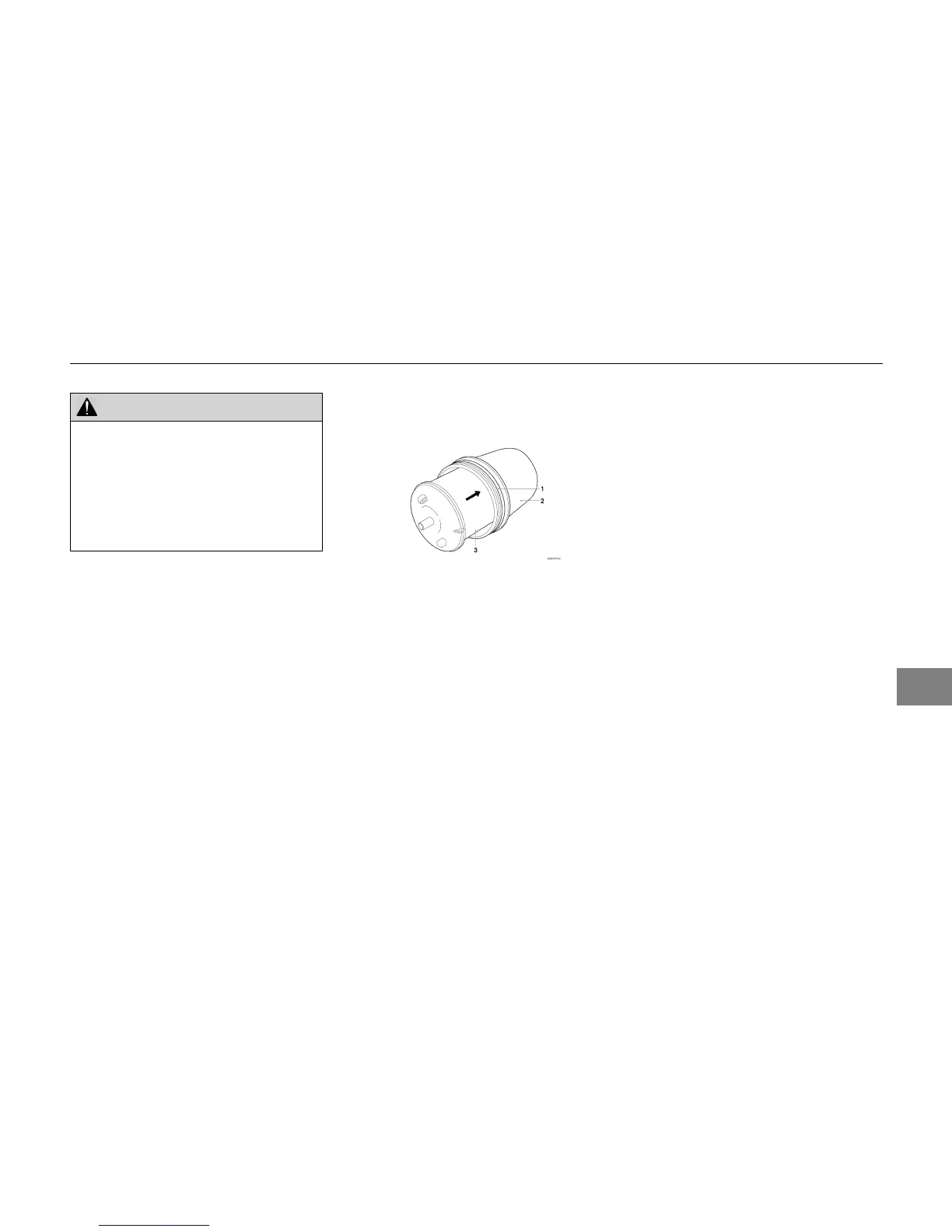

3. Mount the
centrifugal lter (3) with
its top side in the bearing of the
screw cap (2).
4. Check to
ensure the centrifugal
lter (3) can rotate freely.
5. Position the
screw cap carefully
onto the oil module.
5
5-27
