10
SPNE 190913-24

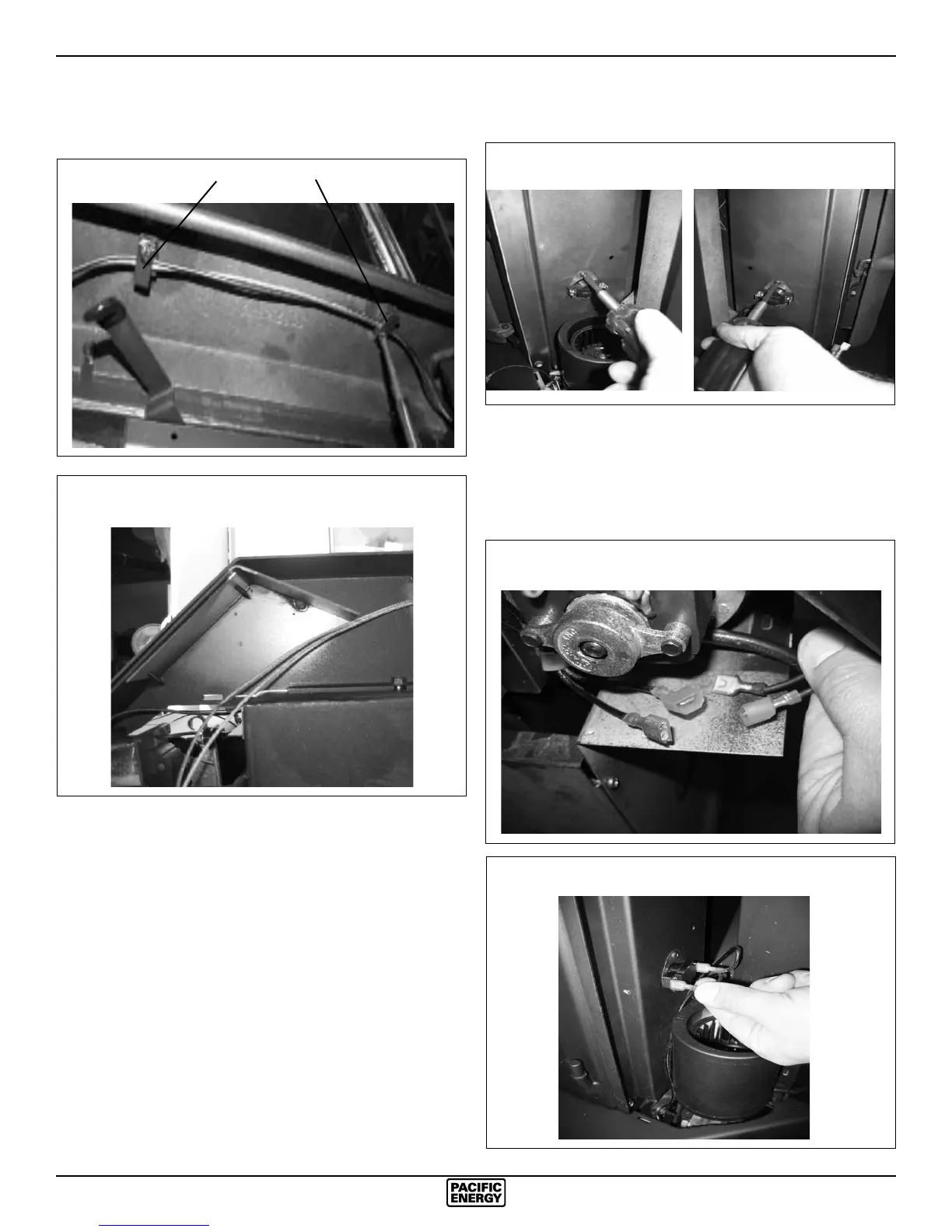

7) Remove Thermal switch from right hand fan mounting
bracket and relocate to left hand fan mounting bracket.
Fig #13&14
8) Reconnect the wires to the fans (Fig.15) and thermal snap
switch (Fig.16), re t ash lip, sides and top. Ensure that
the power cable is correctly routed through the surround
and it is not touching the rebox side. Wire placement is
important to prevent damage to wires.
6) Route cable from speed control to fan and reattach wire
support tabs on the underside of the ash lip. Note wire
positions. (Fig.11 & Fig.12)
WIRE SUPPORT TABS
Fig. # 11
Fig. # 12
Fig. # 14Fig. # 13
Fig. # 15
Fig. # 16
