9
SPNE 190913-24

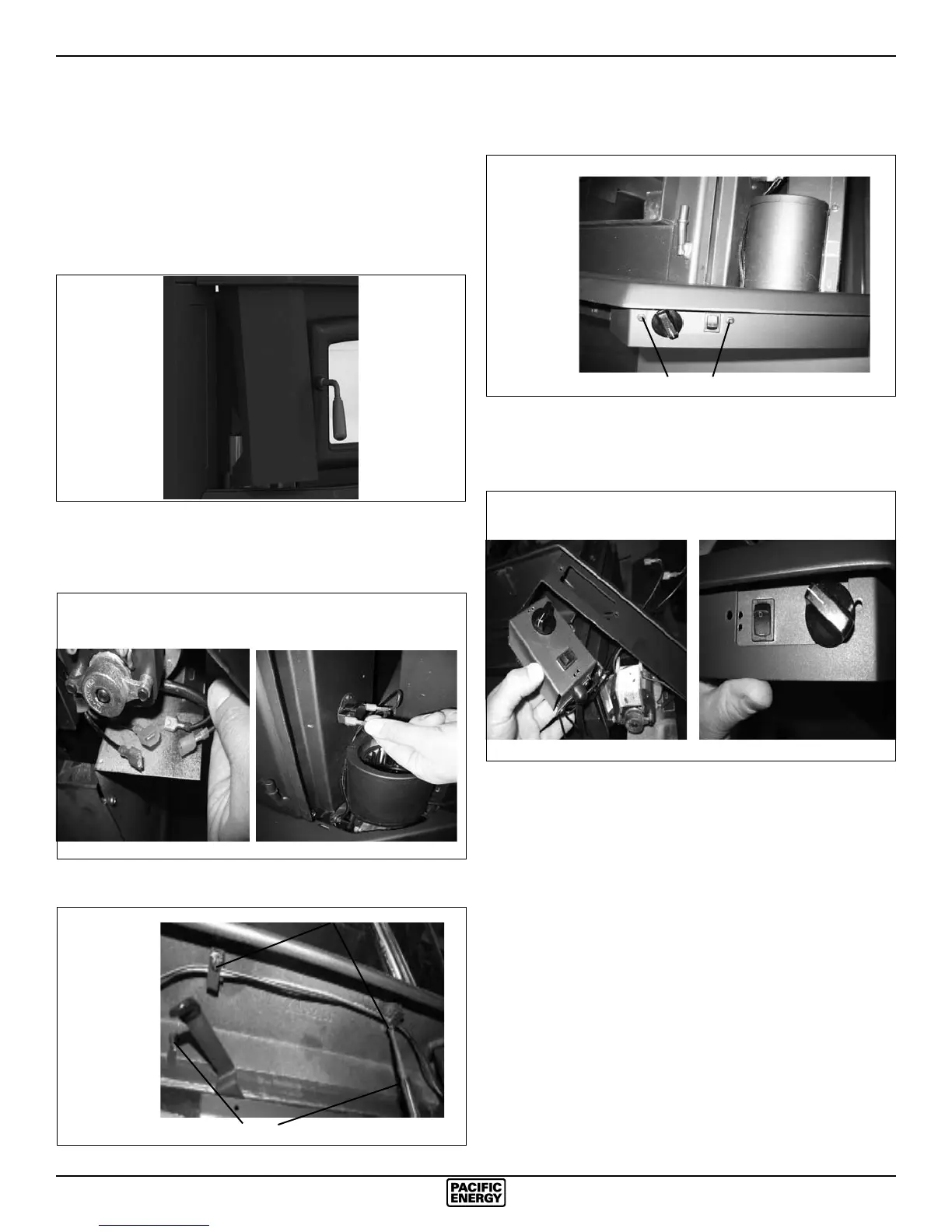

Fan Speed Controller Relocation
The fan speed controller is factory installed under the ash lip
on the right hand side. If required, it can be relocated to the
left side by following the instructions below. To make this as
easy as possible, it is suggested that this be done prior to
tting the surround and installation into the replace:
1) Lift up on each panel and remove. Set aside to prevent
damage.
2) Disconnect the wires from the fans (LHS & RHS) and
thermal snap switch. Take note of where the wires are
routed and secured. They must be positioned correctly to
avoid damage.
`
3) Loosen the two bolts that secure the ash lip to the rebox,
carefully lift up the ash lip and remove from the rebox and
unscrew the wire support tabs
4) Remove the two screws securing the speed controls as-
sembly to the ash lip. The cover plate on the opposite side
can also be removed at this time
5) Remove the control assembly from the right hand side of
the ashlip. Flip it over and reattach on the left hand side of
the ashlip. Use the upper screw holes for best alignment.
BOLTS
SCREWS
SCREWS
Fig. # 5
Fig. # 6
Fig. # 7
Fig. # 8
Fig. # 9 Fig. # 10
