Pacific energy SUPER INSERT DESIGN-E SPNE - Firebrick Installation

20
SPNE 190913-24
ITEM SIZE PART NUMBER
N. America
A 9” X 4 1/2” X 1 1/4” (230 mm x 115 mm x 32 mm) 5096.99
B 7 1/4” X 4 1/2” X 1 1/4” (184 mm x 115 mm x 32 mm) 245.0
Super Insert
Firebrick Installation

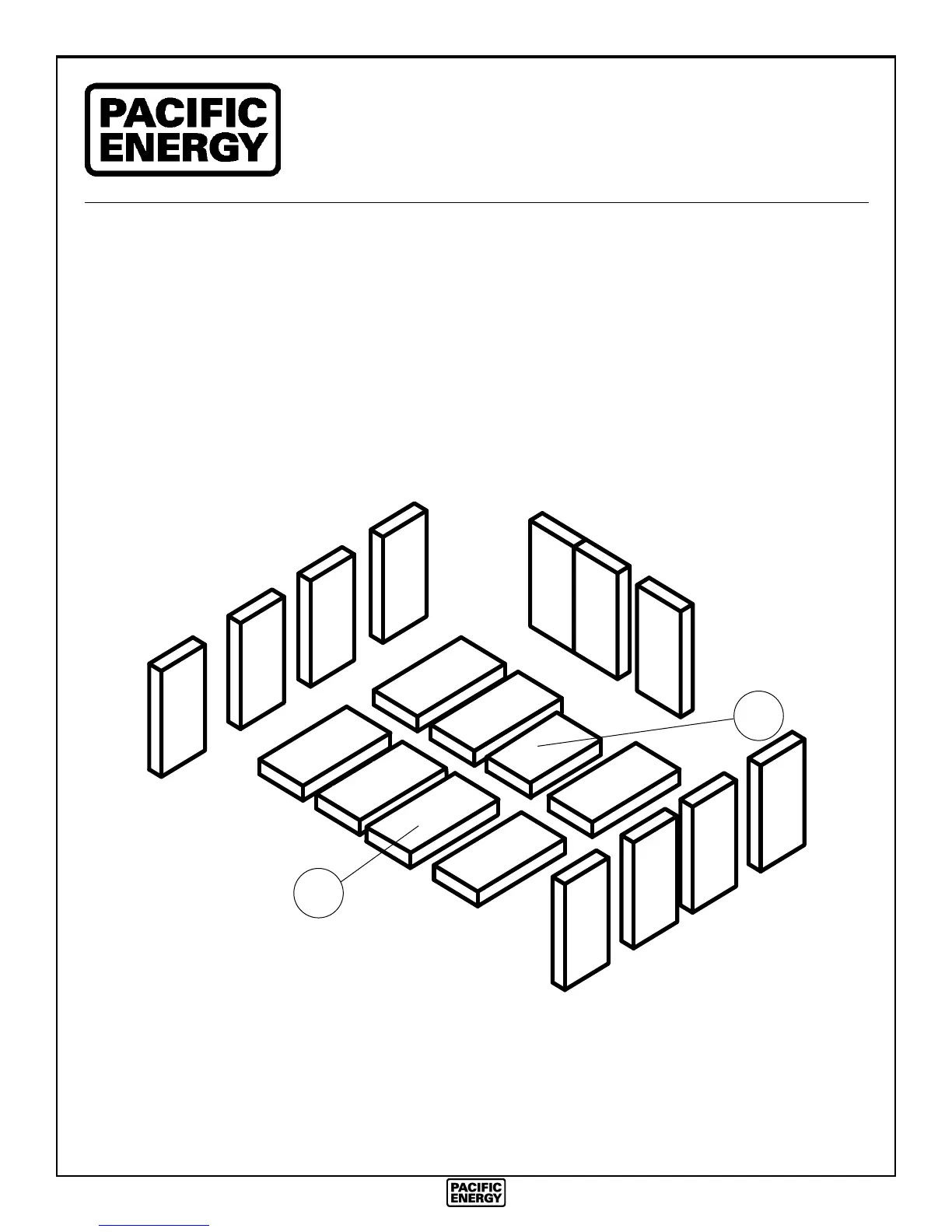

This package contains 18 full-size fi rebricks, as well as 1 cut-size brick.
With the heater in the upright position, install fi rebricks as follows:
- Place fi rebricks on the bottom of the heater fi rst. Total of 7 full-size and 1cut
brick.
- Next, install the side fi rebricks, 4 full-size each side.
- Lastly, install 3 full-size fi rebricks against the rear wall.
080500-2 WINDBRICK 5055.104
B
A
