Packard Bell 300 - Page 7

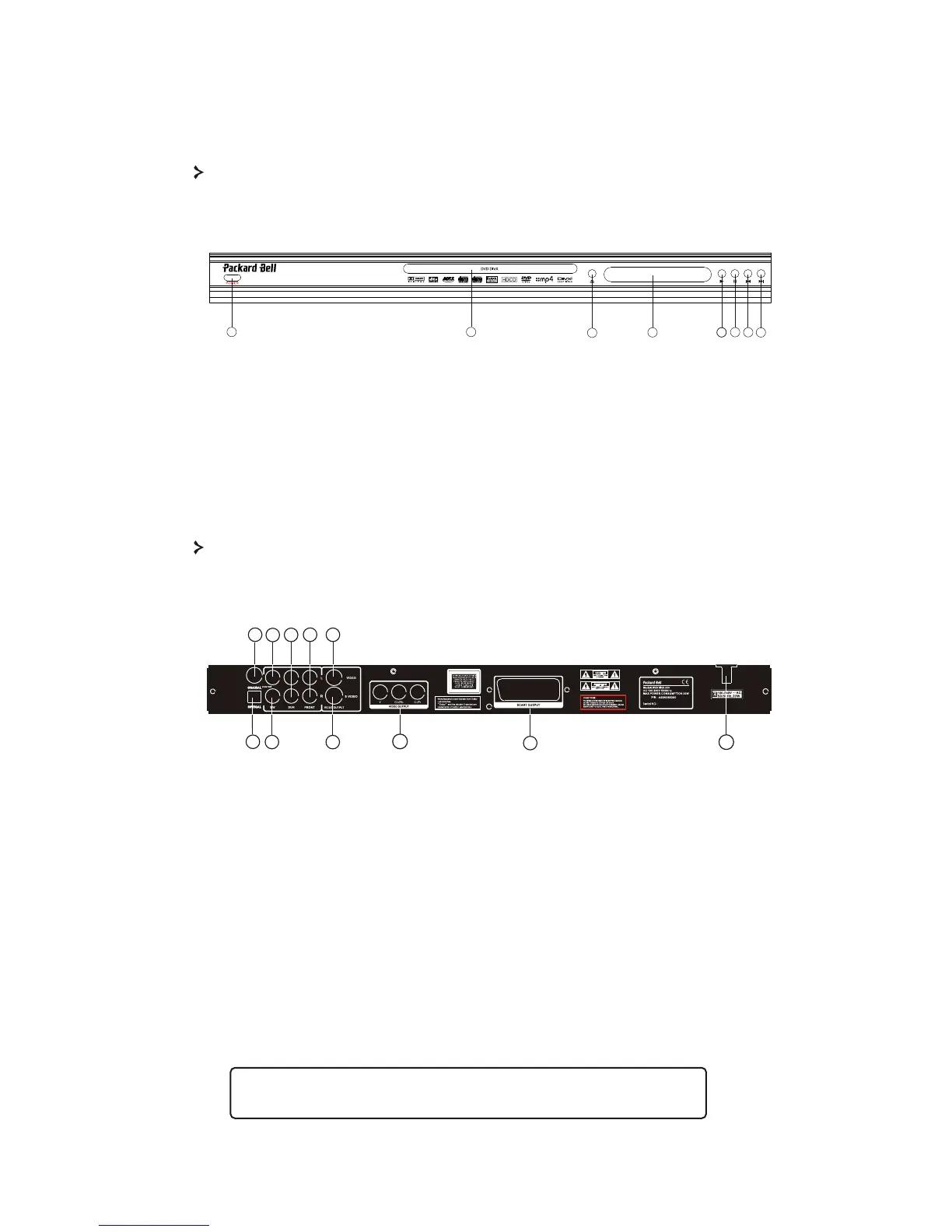

Front panel diagram (DVD DivX 350) :
WEIGHT: 2.5kg
SIZE: 430mmX38mmX255mm
Back panel diagram (DVD DivX 350):
1. Optical output jack
2. Coaxial output jack
3. Center output jack
4. Sub-woofer output jack
5. Left and right surround output jack
6. Left and right front output jack
7. Video output jack
8.S-video output jack
9.Y Cb/Pb Cr/Pr
10.Scart output jack
11.Power cable
4-1
4. VFD display
7. Prev button
5. Play button
8. Next button
6. Stop button
1. Power button
2. DVD disc holder
3. Open/Close button
2
3
5
6
7
1
4
8
9
11
10
1
2
3
6
4
7
8
