Packo REM/DIB Series - Table for levelling OM;DX

33/78 06/02/2008
1.00
Table for levelling OM/DX
Introduction
The table for levelling your OM/DX milk cooling tank can be found below. In the chapter
"Levelling the tank", you can find how to use the table.

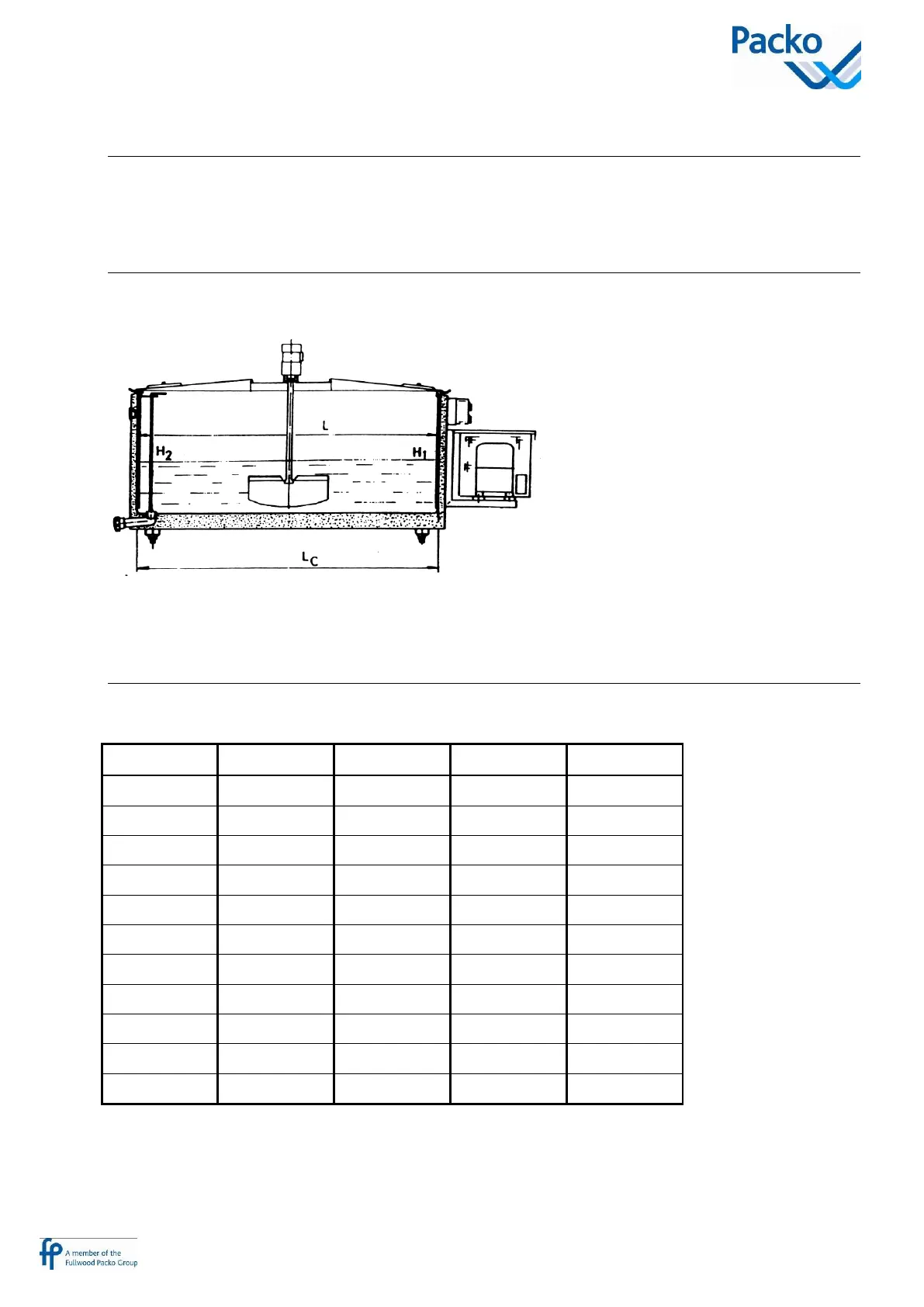

Figure
LR = measuring rod length
LC = inside dimensions milk tank
L = distance between mounting studs of the dipsticks
Table
Type
H2-H1 (mm)
LR (mm)
LC (mm)
L (mm)
300
0
607
723,5
715,5
450
0
607
1097,5
1089,5
600
0
607
1447,5
1439,5
800
0
607
1497
1489
1000
0
607
1847
1839
1200
0
607
2197
2189
1500
0
697
1862
1854
1800
0
697
2246
2238
2300
0
720
2595
2589
2750
0
720
3096
3090
3400
0
720
3096
3090
Type = nominal contents of the tank
