Ohjekirja Palax combi M 2004.1 En
24
29
1
3
4
5
6
2
7
8
30
A

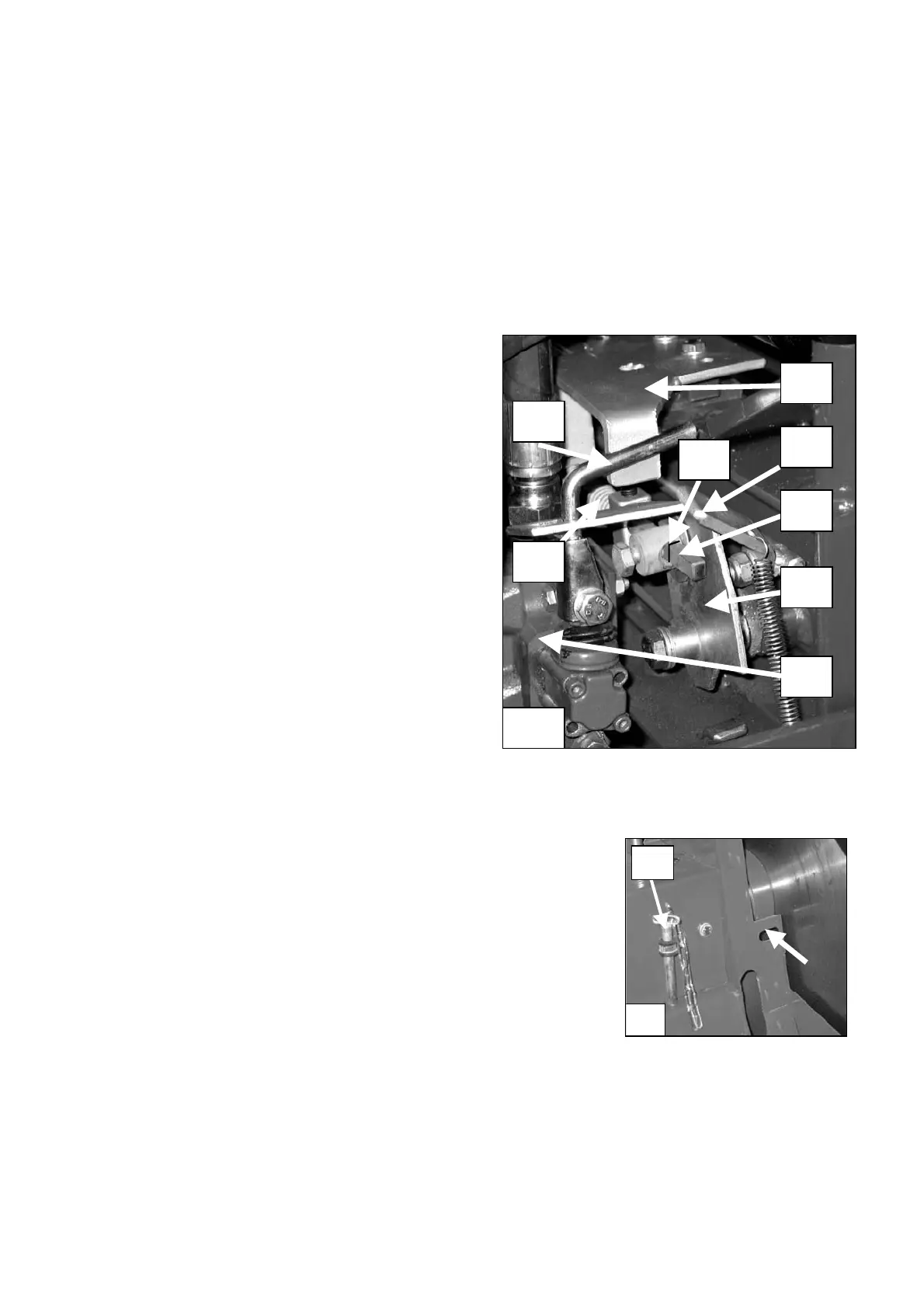

Controls of the hydraulic valve
Tightener, part 1
Stops and reverses the splitting cylinder, stops the valve in free-circulation and tightens
the launching spring 6 for a new movement.
Locking lever, part 2
As the net cage of the splitting-trough is lifted up, the safety wedge 2 will shift the
locking rod 1 (Figure 27) into a position where it will impede the movement of the
launching rod 7 (Figure 29).
Launching rod, part 3
Control lever, part 4
Hydraulic valve, part 5
Launching spring, part 6
Launching lever, part 7
Adjustment mark, 8
The mark at the end of the launch rod 8
makes it easy to place the launching rod in
the correct position.
7 Maintenance of the machine
Note! Always stop the machine before
servicing.
7.1 Cross-cut saw-blade
Removing the cross-cut saw-blade, Figure 30
Remove the sawdust trough side plate (17 mm spanner).
Remove the side plate of the saw-blade cover (13 mm
spanner).
Put pin A into the hole indicated by the arrow to prevent the
saw-blade from rotating and open the saw-blade nut (right-
hand thread, 36 mm spanner).
The thread on the nut is M 24 x 2.
Carefully clean the surfaces of the flanges before re-
installation of the blade.
Before installing the blade, make sure that the pin, which prevents the saw-blade from
rotating, is in place.
Sharpening the blade, hard-metal blade
The hard-metal blade can be sharpened "lightly" using a diamond file.
Depending on the cleanliness of the wood, as many as 500...1,000 bulk cubic metres of
wood can be processed with a hard-metal saw-blade without resharpening.
