Paloform caldera CIF-E-18 - PARTS LIST AND IDENTIFICATION; Keyed Parts List

16
CALDERA E CORTEN FIRE PIT | Owner and Installation Manual

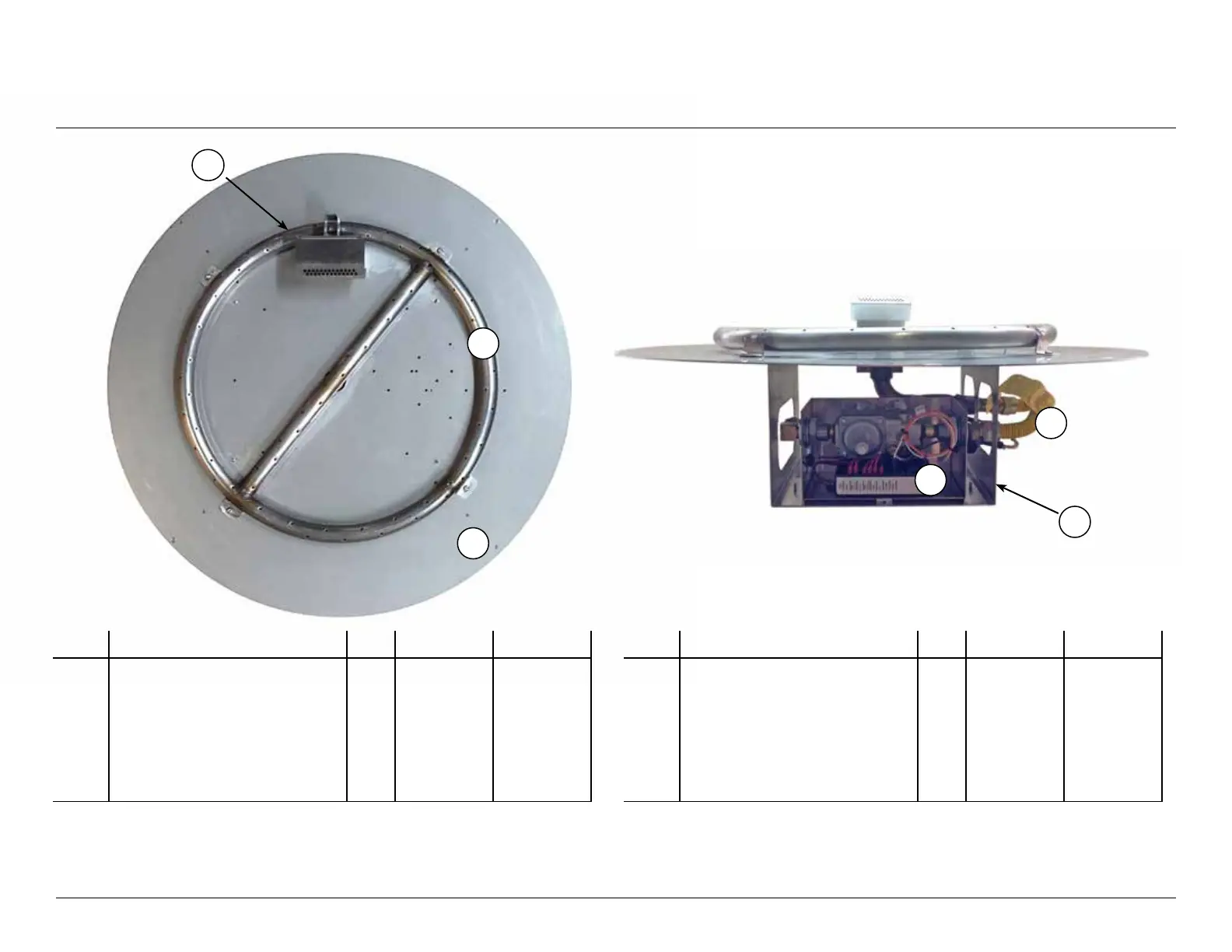

ILLUSTRATED PARTS LIST
2
1
WARNING:
Failure to position parts in accordance with diagrams or failure to use parts specically approved for this appliance may result in property damage or personal injury.
REPLACEMENT PARTS ARE AVAILABLE THROUGH THE MANUFACTURER
KEY # DESCRIPTION QTY CIR/F-E-18 CIR/F-E-18P
1
2
3
4
5
6
7
8
Burner Ring 18” diameter
Burner Pan (CIF-18)
Venturi
Orice
Control Box (c/w Cover)
Chassis
Flex Connector
Power Adapter 24 VAC, 750 mA
(not shown)
1
1
1
1
1
1
1
2
1
RBP018
PAN025
FLAT25
VNA017
O33018
CBCIR
CHACIR
FC6812
AC24-750
RBP018
PAN025
FLAT25
VLP017
O33037
CBCIR
CHACIR
FC6812
AC24-750
KEY # DESCRIPTION QTY CIR/F-E-18 CIR/F-E-18P
9
10
11
12
13
14
15
16
Main Gas Valve
Ignition Control Board
Wire Harness
Pilot Assembly
Pilot Shroud
Pilot Cover
Burner Media - Glass (NG only)
Burner Media - Lava Rock (LP only)
1
1
1
1
1
1
1
1
GVBGD258
CC-9120-30
AUCE-WH-01
NA361
EPSCIR
EPCCIR
GC3C18
GVBGD258P
CC-9120-30
AUCE-WH-01
NA361P
EPSCIR
EPCCIR
LA3C18
6
7
5
14
