TECHNICAL DATA
CIR-E-18(P)

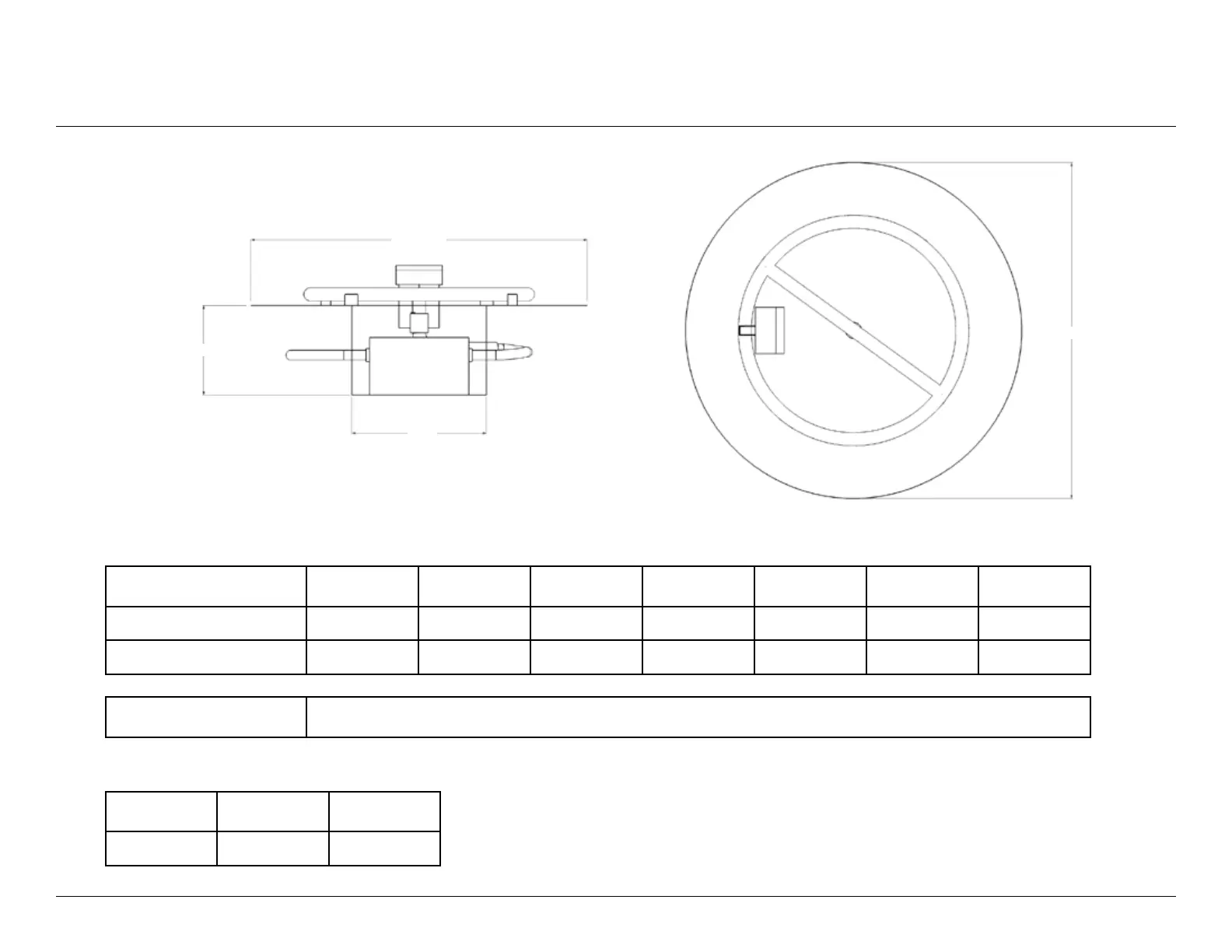

Burner Dimensions
Minimum Clearances to Combustible Materials:
Burner Specications:
ABOVE SIDE BELOW
72” 18” 0”
MODEL # MAX INPUT
Btu/Hr
INLET
PRESSURE MIN
INLET
PRESSURE MAX
MANIFOLD
PRESSURE
ORIFICE SIZE BURNER PORTS PORT SIZE
CIF-E-18 69,000 4.5” W.C. 10.5” W.C. 3.5” W.C. 18 68 1/8”
CIF-E-18P 60,000 11.0” W.C. 13.0” W.C. 10.0” W.C. 37 68 1/8”
ELECTRICAL (ALL MODELS)
120V 15A OUTDOOR RECEPTACLE - DEDICATED CIRCUIT WITH WALL SWITCH. BURNER CONNECTS VIA AN AC ADAPTER.
MUST BE INSTALLED AND GROUNDED IN ACCORDANCE WITH LOCAL CODES
26.375”
26.375”
7”
10.5”
