Paloform CIR-E-18 - ILLUSTRATED PARTS LIST; Wiring Diagram

15
BENTO 42 E | Owner and Installation Manual
1 2 3 4 5 106 7 118 9
MAIN GND (VALVE) PILOT GND (BURNER) GND 24V SENSE SPARK
AC POWER ADAPTER
INPUT: AC 120V 60 Hz 8A
OUTPUT: 24 VAC, 750 mA
CHASSIS GROUND
PILOT: NA410 OR LP410
IGNITION CONTROL BOARD: CC-9120-30
GAS VALVE: GVBGD258
ILLUSTRATED PARTS LIST

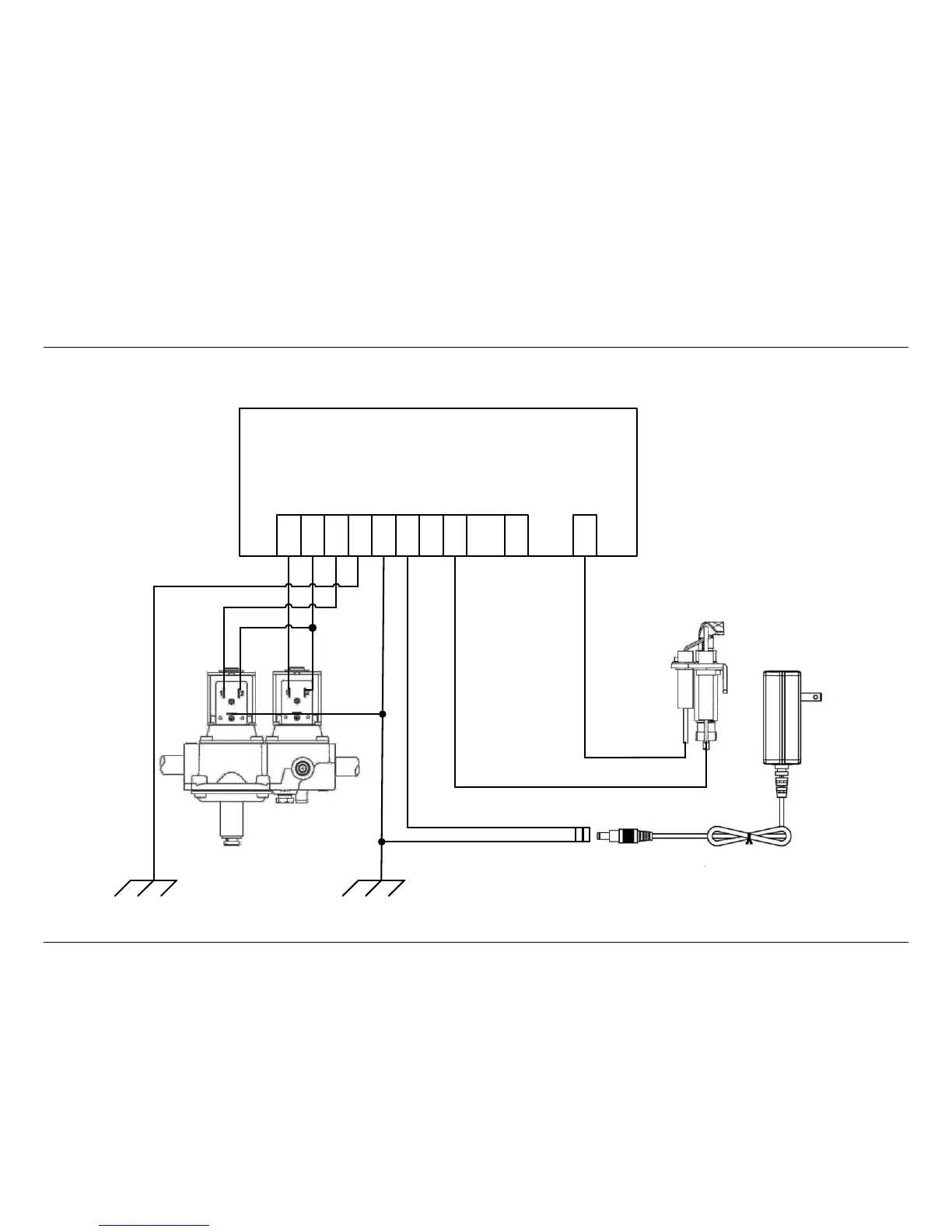

Wiring Diagram
