BENTO 42 E | Owner and Installation Manual

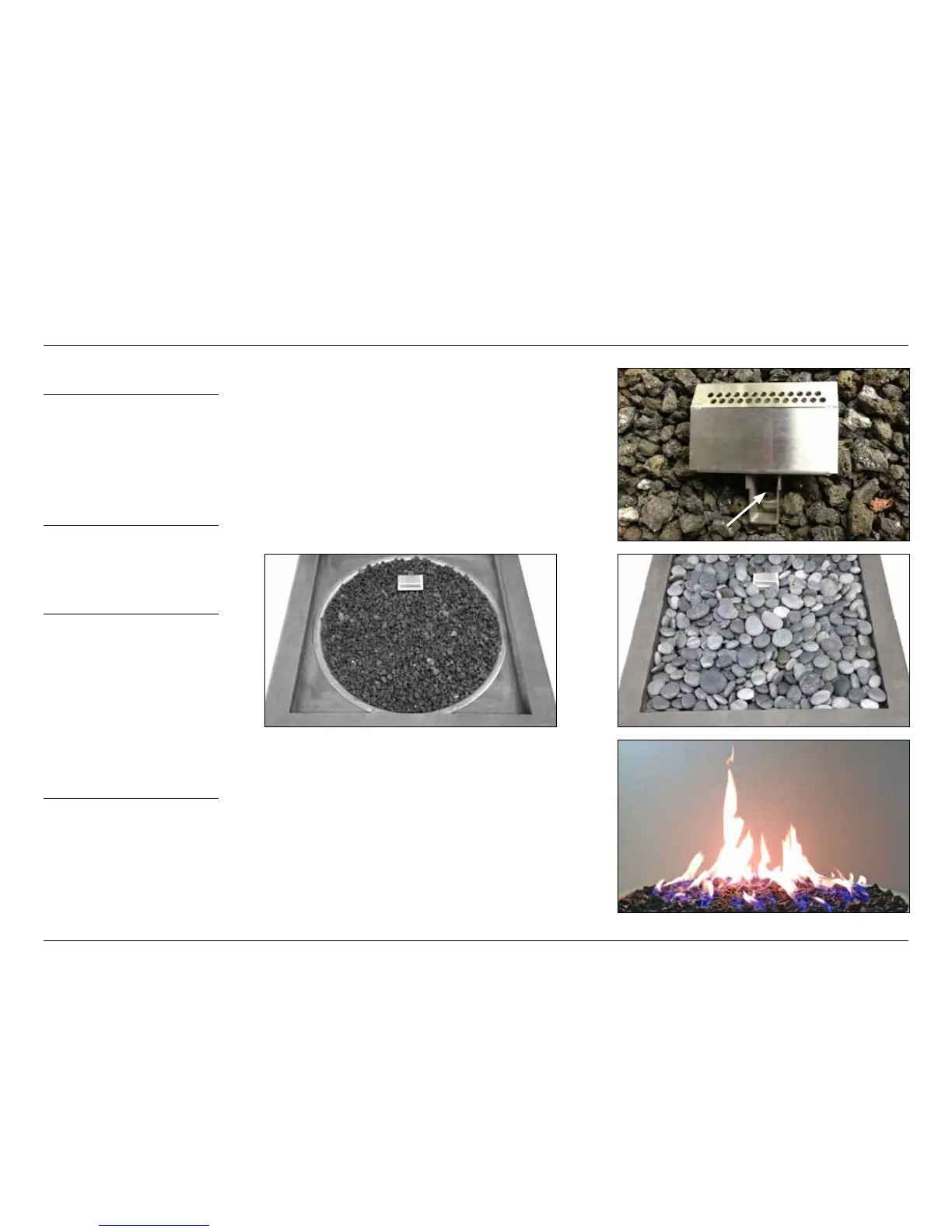

BURNER ASSEMBLY
TO ASSEMBLE THE BURNER
1. Connect the Burner Assembly to the gas/propane supply
using the supplied ex connector and following the
instructions on page 8.
2. Carefully leak test all connections following the procedure
on page 8.
3. Fill the burner pan evenly with burner media (crushed
glass for NG, lava rock for LP) fully covering burner ring.
Media should be level with the top rim of the pan. Do not
obstruct lighting port with burner media!
4. Follow the Initial Lighting Instructions on page 10.
Make sure that the ame carries to all parts of the
burner. Turn OFF the appliance and let it cool before
proceeding to the next step.
5. Place and evenly distribute decorative topping (river
stones, crushed glass or lava rock) on top of burner media.
An uneven or excessively thick layer of topping can result
in an uneven ame.
6. Do not cover pilot shield. Keep the lighting port open
and free of media. Do not use any media not supplied
by the manufacturer!
WARNING:
Failure to position parts in
accordance with these diagrams
and instructions and/or failure to
use parts specically approved
for use with this appliance may
result in property damage or
personal injury.
CAUTION:
Do not remove the metal data
plates attached to the Outdoor
Fire Pit Burner. These plates
contain important information.
NOTICE:
Installation and repair should
be done by a qualied service
person. The appliance should
be inspected before use and at
least once annually by a qualied
service person. More frequent
cleaning may be required as
necessary. It is imperative that
control compartment, burner and
circulating air passageways of
the appliance be kept clean.
LIGHTING PORT
