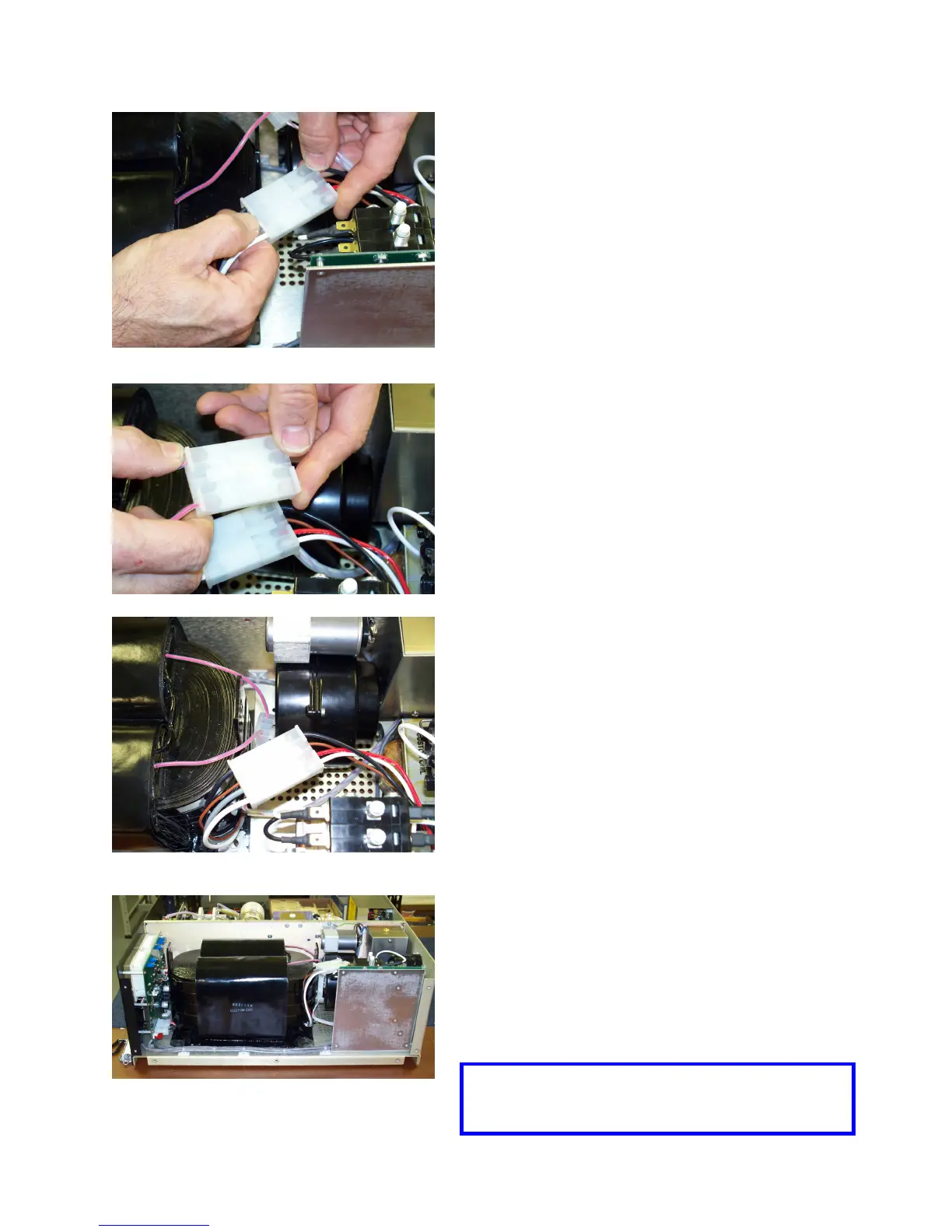

Plug the second connector on the transformer
into the mating one that comes from the AC
control board. It is keyed so that it cannot be
plugged in backwards. Make sure that the
connector halves are pressed together until the
lock tabs snap in place.
This completes HF-2500 EXPORT
transformer installation.
Plug the first connector on the transformer into
the mating one on the chassis wiring harness. It
is keyed so that it cannot be plugged in back-
wards. Make sure that the connector halves are
pressed together until the lock tabs snap in place.
Dress the wires and connectors down out of
the way as shown.
View of the completed transformer installa-
tion
