IF THERE IS MAINTENANCE REQUIRED IT WILL MOST
LIKELY BE RELATED TO MECHANICAL ISSUES:
l ROLLER SHAFT: the wheel rides should be lubricated
with our factory-made conductive grease.
This grease is available from Palstar at NO CHARGE.
l DIOXIT-D5 spray is always very useful for cleaning the
wire on the roller coil. Do not use the spray directly. Put
a small amount on a cotton cloth and hand wipe the
roller once a year while turning the roller crank.
l All set screws are the CAP POINT type and take care to
carefully tighten these screws with a 5/16” allen key
wrench, which is available from any hardware outlet.
REPAIR OR REPLACEMENT MODULES
l All PC Boards are removeable with standard American
tools in case of failure.
l The rear panel (relay PCB) has custom S0-239
connectors that can be loosened witha 3/4“ socket and
4 x 6-32 keps nuts. Remove these nuts and two
connections from the variable and the entire relay PC
Board is removable without a soldering iron.
l Both the front and rear panels can be lowered by
removing the 3 countersink screws from the bottom edge
of each panel.
MAINTENANCE REQUIREMENTS
Page 10 PALSTAR

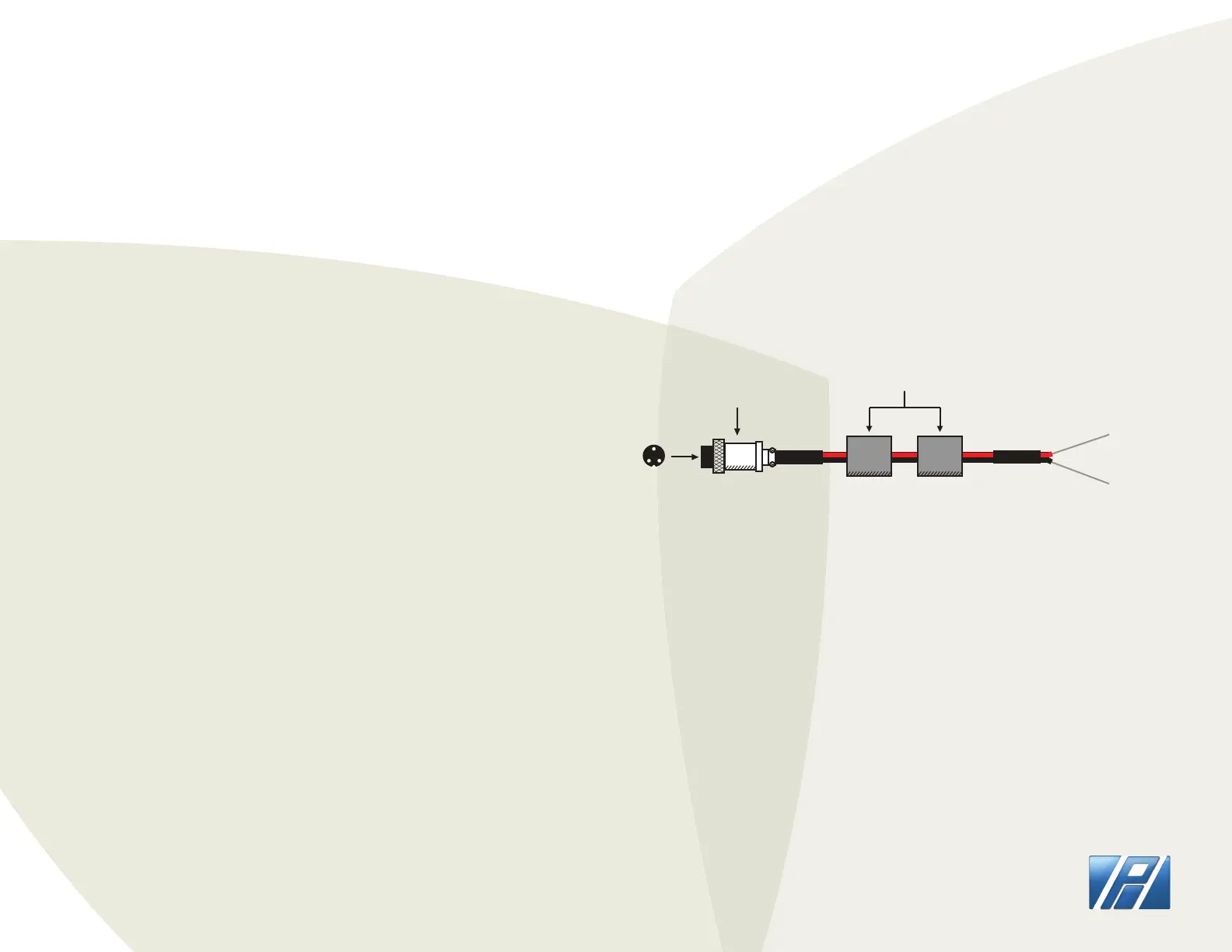

HF-AUTO POWER CABLE
+
-
To 12-13.8v
Power Supply
4 Amps Peak
3 PIN AMPHENOL
type plug
FERRITE BEADS
HF-AUTO DC POWER CORD
+
-
