VT300 User Manual
19

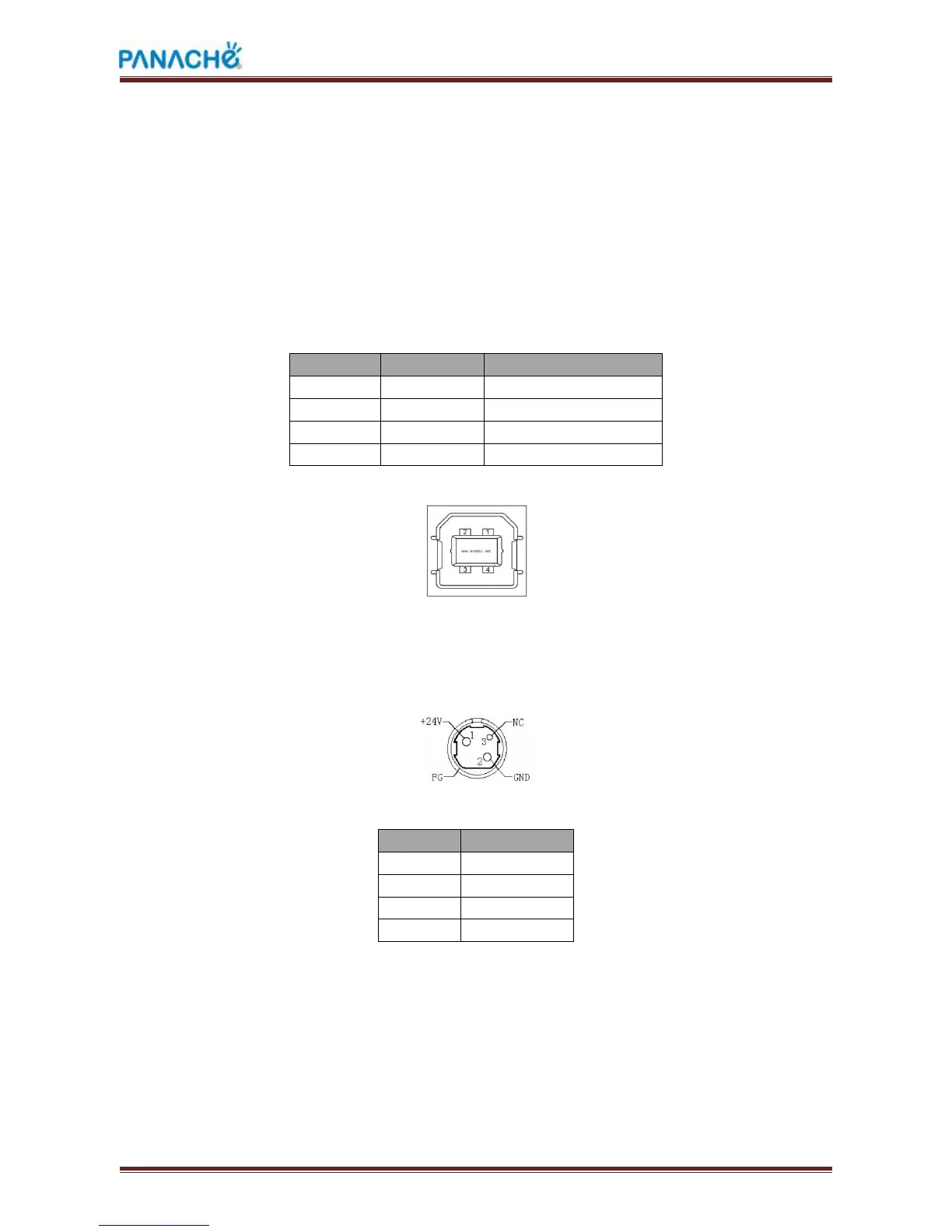

5 Interfaces Signal
Printer VT300 supports cash drawer interface and many other various communicate
interfaces, such as Serial interface, USB interface, and Ethernet interface. The printer
has the communication board with the default USB interface and cash drawer
interface, and the other communication boards with the Ethernet interface, and
RS232 interface are optional.
5.1 USB interface
Pin definition
PIN No.
Signal name
Classic wire color
1
VBUS
Red
2
D-
White
3
D+
Green
4
GND
Black
Figure 5.1.1
5.2 Power Supply interface definition
1) Pin definition
2) Interface type
Printer end-Unetop DC-002 or similar products, user end-Unetop DC-002 or similar
products
PIN No.
Signal Name
1
+24V
2
GND
3
N.C
SHELL
F.G
