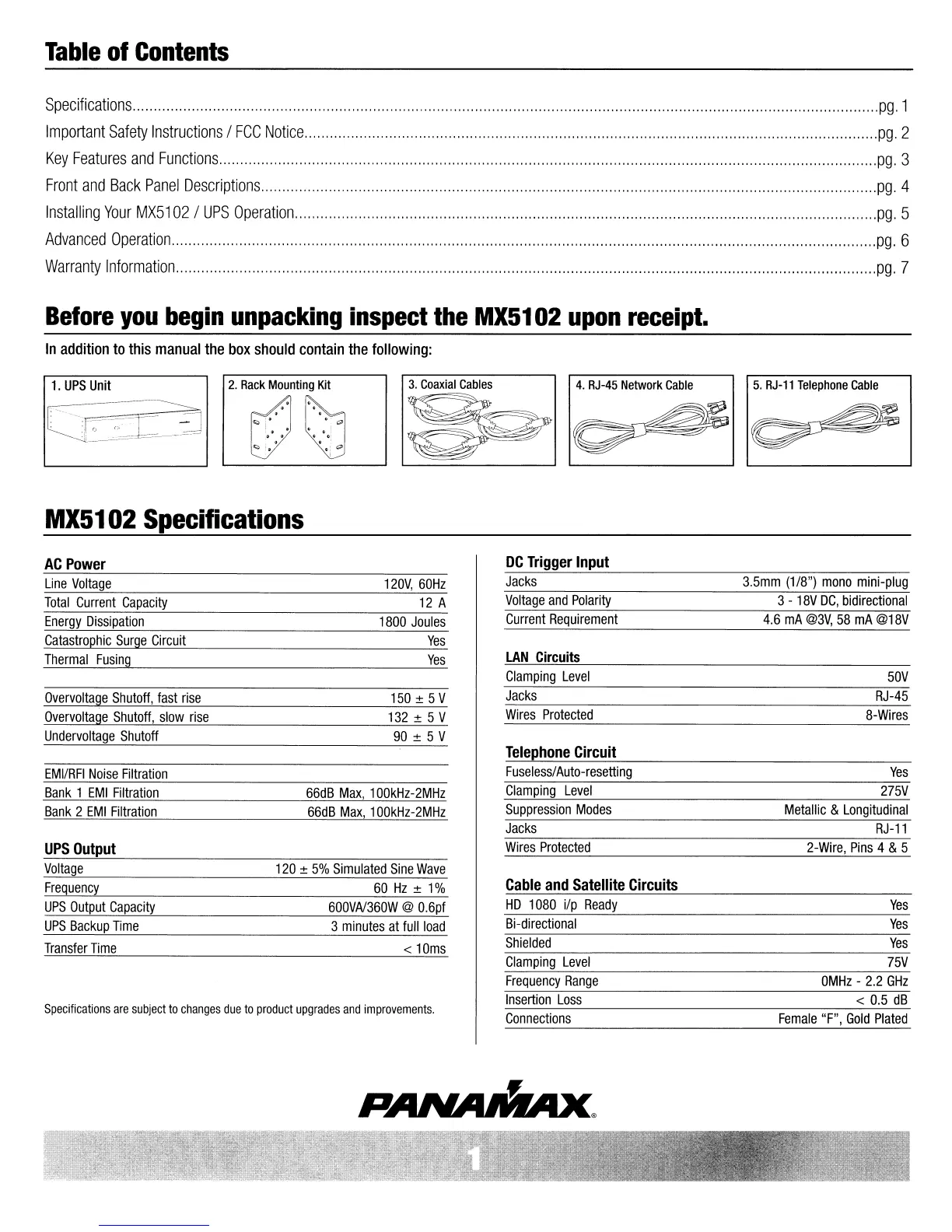

Panamax MX5102 - Table of Contents; Before You Begin Unpacking Inspect the MX5102 Upon Receipt; MX5102 Specifications

Table of Contents
Specifications pg. 1
Important Safety Instructions / FCC Notice pg. 2
Key Features and Functions pg. 3
Front and Back Panel Descriptions ,." , pg. 4
Installing Your MX5102 / UPS Operation , pg. 5
Advanced Operation , .. , pg. 6
Warranty Information , pg. 7
Before you begin unpacking inspect the MX5102 upon receipt.
In addition to this manual the box should contain the following:
1. UPS Unit
2. Rack Mounting Kit
Dt
' ,
. .
~:" fI (;;)
lo" Oil fill llfl
II fI '
~ III ell ~
3. Coaxial Cables
4. RJ-45 Network Cable 5. RJ-11 Telephone Cable
MX5102 Specifications
AC Power
Line Voltage
Total Current Capacity
Energy Dissipation
Catastrophic Surge Circuit
Thermal Fusing
Overvoltage Shutoff, fast rise
Overvoltage Shutoff, slow rise
Undervoltage Shutoff
EMI/RFI Noise Filtration
120V. 60Hz
12 A
1800 Joules
Yes
Yes
150 ± 5 V
132 + 5 V
90 ± 5 V
DC Trigger Input
Jacks
Voltage and Polarity
Current Requirement
LAN Circuits
Clamping Level
Jacks
Wires Protected
Telephone Circuit
Fuseless/Auto-resetting
3.5mm (1/8") mono mini-plug
3 - 18V DC, bidirectional
4.6 mA @3V, 58 mA @18V
50V
RJ-45
8-Wires
Yes
Bank 1 EMI Filtration
Bank 2 EMI Filtration
UPS Output
Voltage
Frequency
UPS Output Capacity
UPS Backup Time
Transfer Time
66dB Max, 100kHz-2MHz
66dB Max, 100kHz-2MHz
120 ± 5% Simulated Sine Wave
60Hz±1%
600VAl360W @ 0.6pf
3 minutes at full load
< 10ms
Clamping Level
Suppression Modes
Jacks
Wires Protected
Cable and Satellite Circuits
HD 1080 ilp Ready
Bi-directional
Shielded
Clamping Level
Frequency Range
275V
Metallic & Longitudinal
RJ-11
2-Wire, Pins 4 & 5
Yes
Yes
Yes
75V
OMHz - 2.2 GHz
Specifications are subject to changes due to product upgrades and improvements.
Insertion Loss
Connections
< 0.5 dB
Female "F", Gold Plated
