6

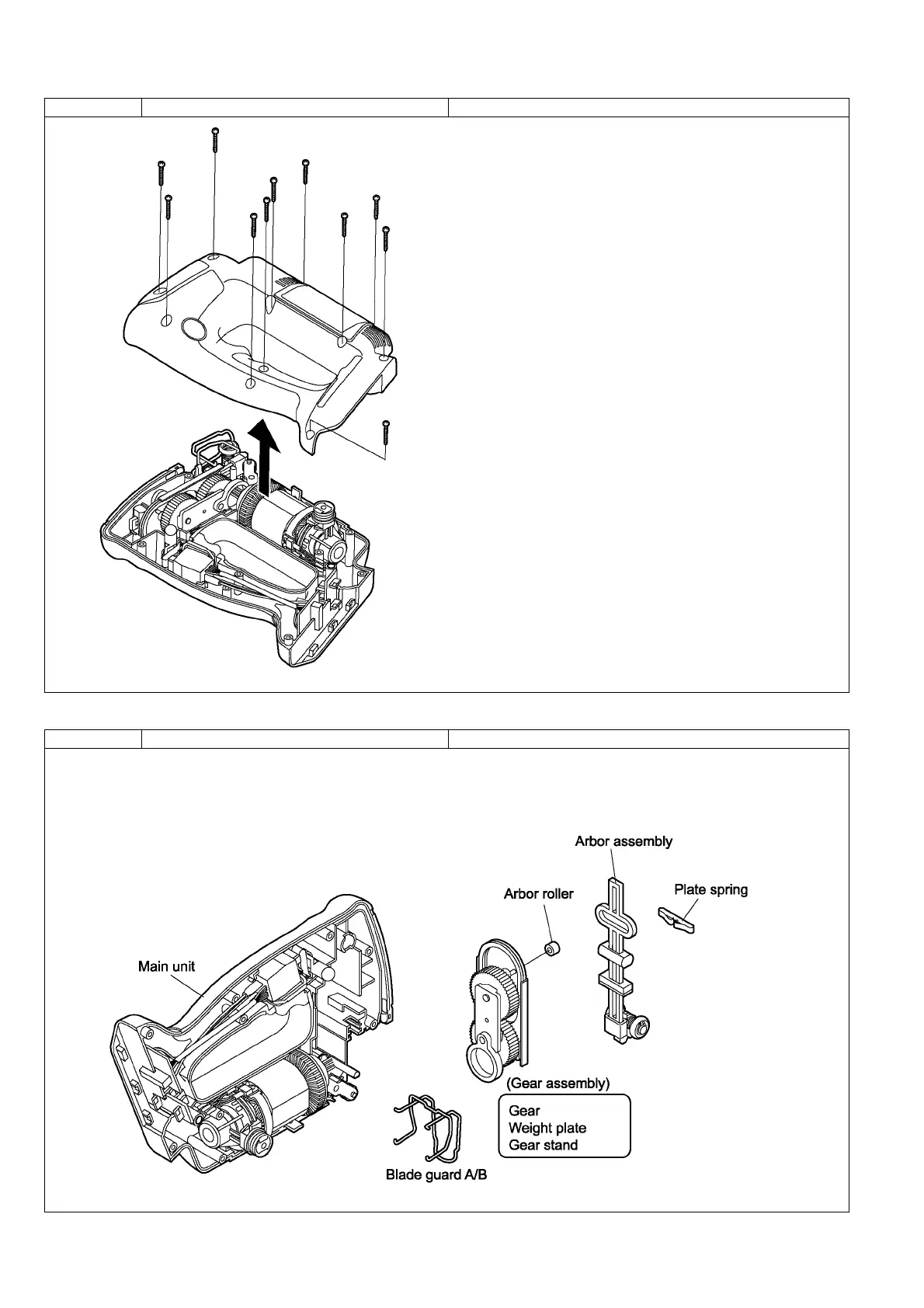

Ref. No. 1C Procedure 1A → 1B → 1C Removal of the housing.
1. Loosen 11 housing screws.
2. Hold the housing A and take the housing B up vertically.
Ref. No. 1D Procedure 1A → 1B → 1C → 1D Removal of driving block.
1. Take out the arbor assembly together with the plate spring.
2. Remove the arbor roller.
3. Remove the gear assembly including the gear, weight plate and gear
stand.
To Next Page
