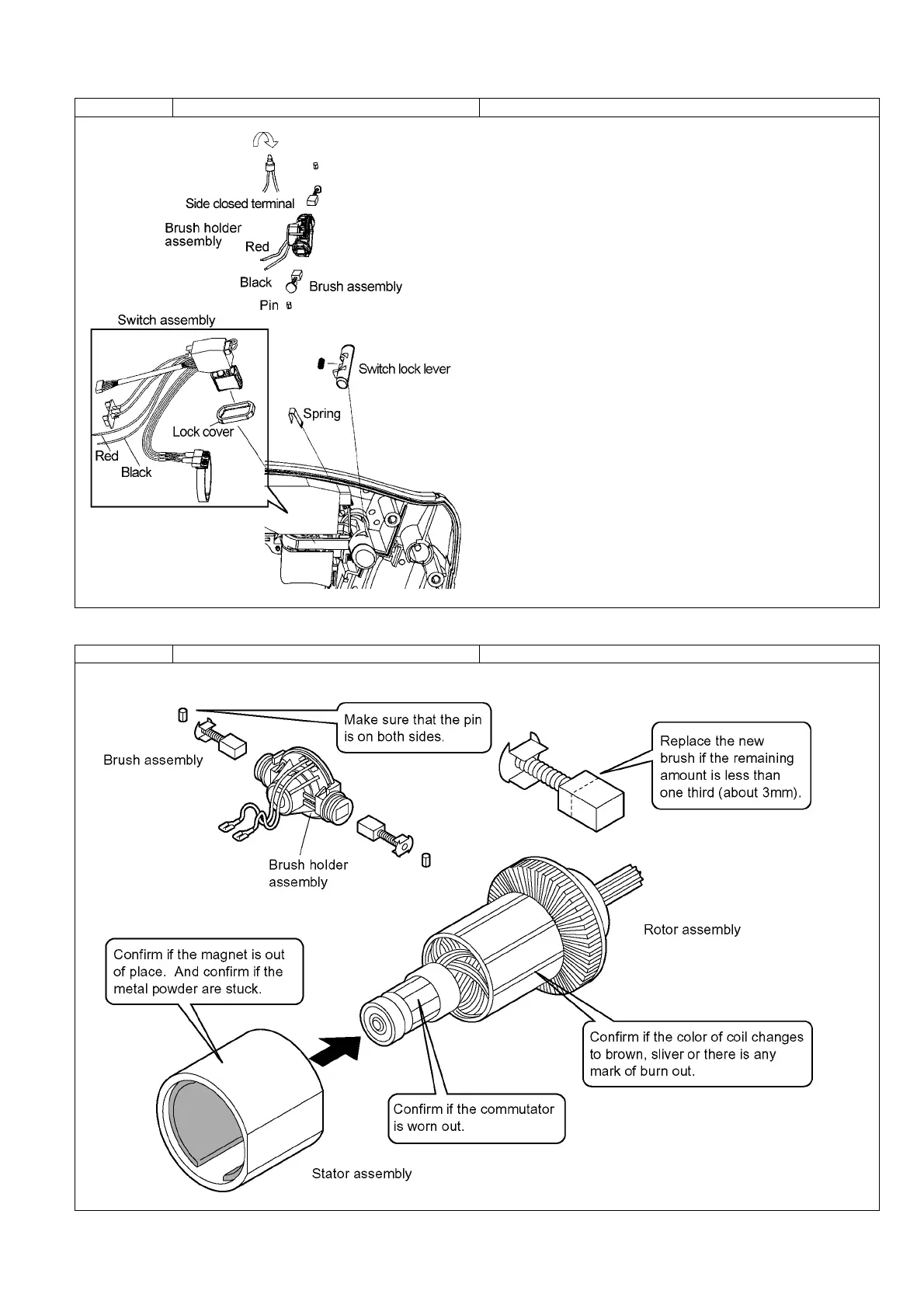

Ref. No. 1E Procedure 1A → 1B → 1C → 1D → 1E Removal of the switch.
1. Pull out the lead wires from the side closed terminal.
(for reassembly)
1. Connect the same color of lead wires (black or red) from switch and
brush assembly with the side closed terminals.
Ref. No. 1F Procedure 1A → 1B → 1C → 1D → 1E → 1F Removal of the brush assembly.
1. Remove the motor assembly from the housing.
2. Take out the rotor assembly from the stator.
