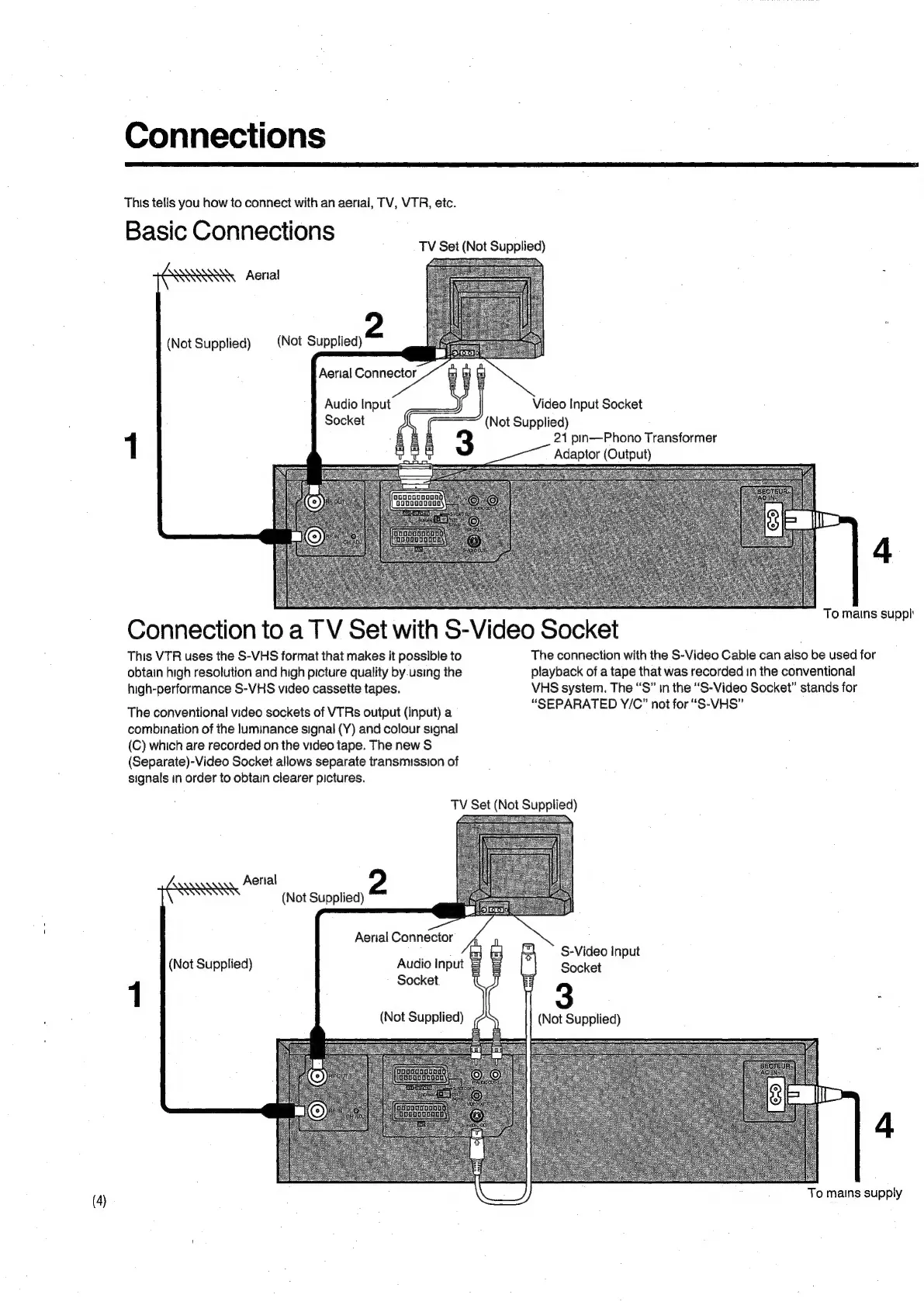

Connections
This teils you how to connect with an aerial, TV, VTR, etc.
Basic Connections
TV Set (Not Supplied)
Aerial
(Not Supplied) (Not Supplied)
Aerial Connector
Audio Input Video Input Socket
(Not Supplied)
21 pin—Phono Transformer
Adaptor (Output)
4
To mains suppl
Connection to a TV Set with S-Video Socket
This VTR uses the S-VHS format that makes it possible to The connection with the S-Video Cable can also be used for
obtain high resolution and high picture quality by.using the playback of a tape that was recorded in the conventional
high-performance S-VHS video cassette tapes. VHS system. The “S” in the “S-Video Socket” stands for
The conventional video sockets of VTRs output (input) a SET ARSTED Wie J0tlor Sins
combination of the luminance signal (Y) and colour signal
(C) which are recorded on the video tape. The new S
(Separate)-Video Socket allows separate transmission of
signals in order to obtain clearer pictures.
TV Set (Not Supplied)
Aerial
(Not Supplied)
Aerial Connector
S-Video Input
Socket
(Not Supplied) Audio Input =
Socket
(Not Supplied) (Not Supplied)
4
To mains supply
