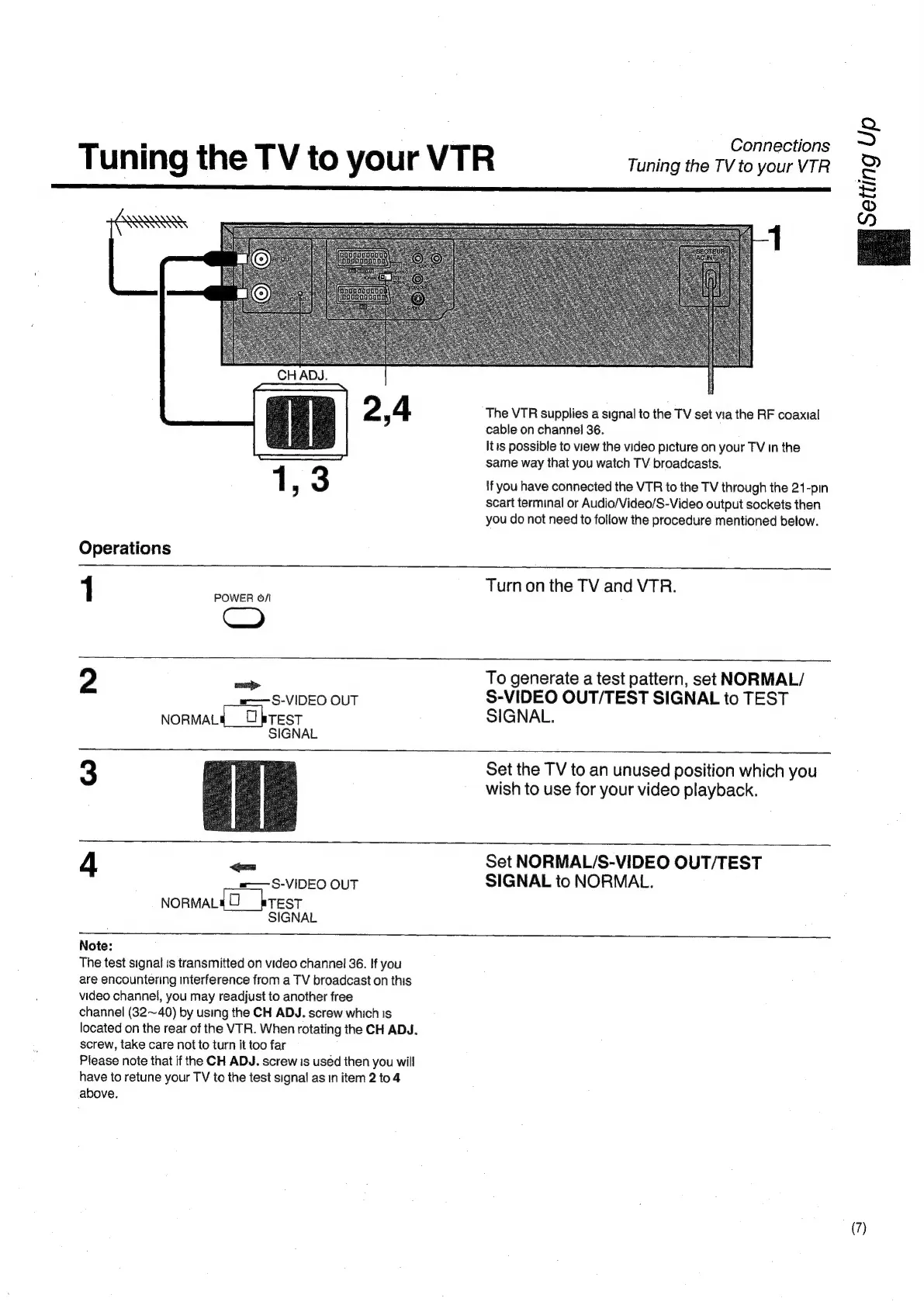

Tuning
the
TV
to
your
VTR
Tuning
the
TV
to
your
VIR
The
VTR
supplies
a
signal
to
the
TV
set
via
the
RF
coaxial
cable
on
channel
36.
It
s
possible
to
view
the
video
on
your
TV
in
the
same
way
that
you
watch
TV
broadcasts.
If
you
have
connected
the
VTR
to
the
TV
through
the
21-pin
scart
terminal
or
Audio/Video/S-Video
output
sockets
then
you
do
not
need
to
follow
the
procedure
mentioned
below.
Operations
1
Turn
on
the
TV
and
VTR.
POWER
O/!
Co
2
To
generate
a
test
pattern,
set
NORMAL/
yee
VIDEO
OUT
S-VIDEO
OUT/TEST
SIGNAL
to
TEST
Set
the
TV
to
an
unused
position
which
you
wish
to
use
for
your
video
playback.
4
Set
NORMAL/S-VIDEO
OUT/TEST
poole
VIDEO
OUT
SIGNAL
to
NORMAL.
NORMALAG
test
SIGNAL
Note:
The
test
signal
is
transmitted
on
video
channel
36.
If
you
are
encountering
interference
from
a
TV
broadcast
on
this
video
channel,
you
may
readjust
to
another
free
channel
(82~40)
by
using
the
CH
ADJ.
screw
which
is
located
on
the
rear
of
the
VTR.
When
rotating
the
CH
ADJ.
screw,
take
care
not
to
turn
it
too
far
Please
note
that
if
the
CH
ADJ.
screw
is
used
then
you
will
have
to
retune
your
TV
to
the
test
signal
as
in
item
2
to
4
above.
Up
