Panasonic CF-AX2 Series

12
Getting Started

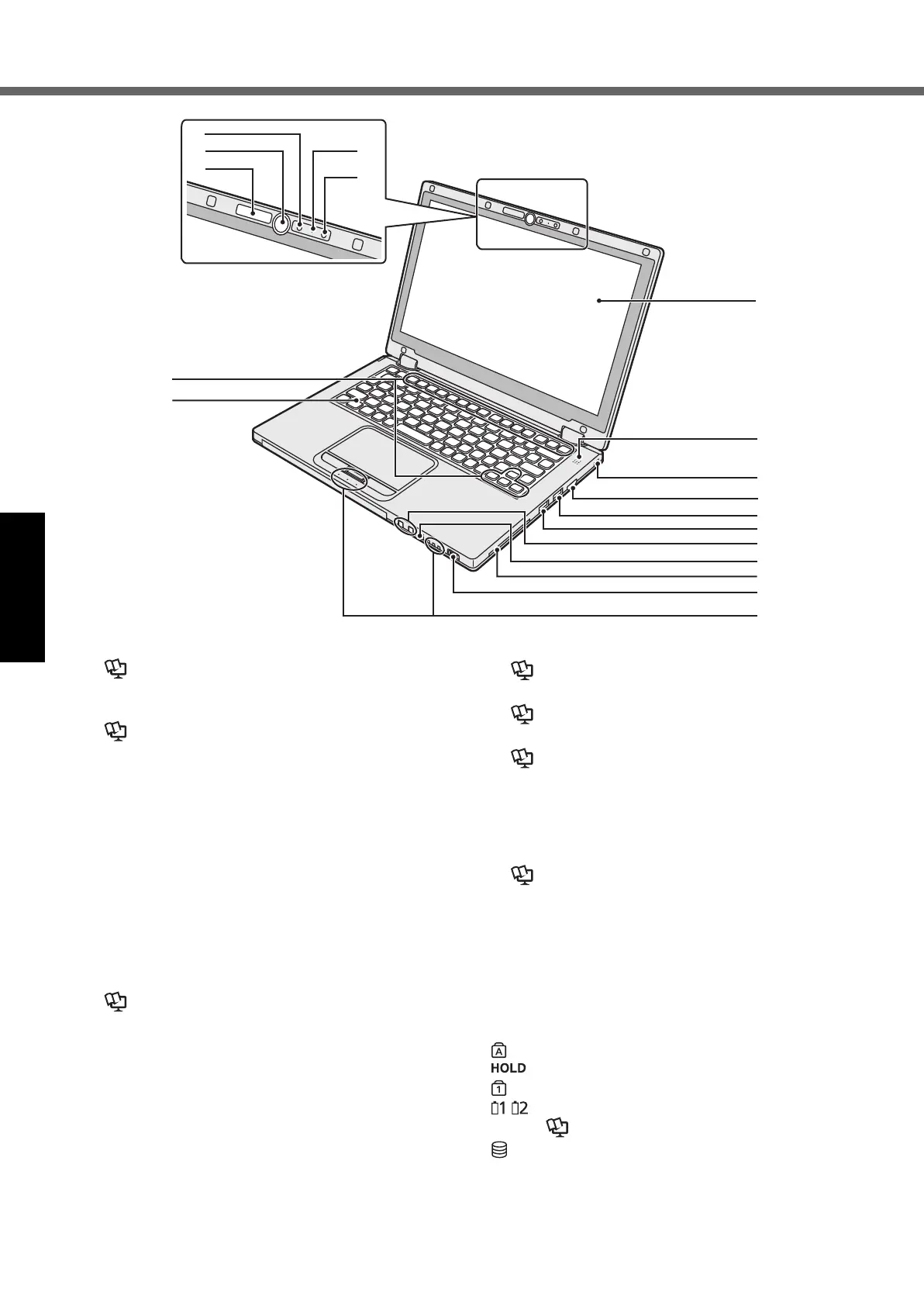

Description of Parts
A : Function key
Î Reference Manual “Key Combinations”
B : Keyboard
C : Camera
Î Reference Manual “Camera”
D : Windows button
Press this button to return to the Start screen, either in
the Laptop mode or Tablet mode.
E : Camera indicator
Lights when the built-in camera is operating.
F : Microphone
Inputs audio.
G : Ambient light sensor
The ambient light sensor is equipped with an auto-
matic brightness adjustment function that adjusts the
display screen. (Î page 21)
H : LCD
I : Speaker
Î Reference Manual “Key Combinations”
J : Security lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
The security lock and cable is a theft prevention
device. Panasonic Corporation will bear no responsi-
bility in the event of theft.
K : HDMI port
Î Reference Manual “External Display”
L : USB 3.0 port
Î Reference Manual “USB Devices”
M : USB 3.0 port (with continuous charging function)
Î Reference Manual “USB Devices”
N : Volume adjustment buttons
– : Decreases volume
+ : Increases volume
O : Rotation lock button
Locks the screen display. (Only in the Tablet mode)
Î Reference Manual “Display Rotation”
P : Smart Card Slot
<Only for model with Smart Card Slot>
Q : Power switch
Power status indicator
• Off: Power off/Hibernation
• Green: Power on
• Blinking green: Sleep
R : LED indicator
: Caps Lock
: HOLD mode
: Numeric key (NumLk)
: Battery status
Î Reference Manual “Battery Power”
: Drive status
H
I
J
K
L
M
N
P
Q
R
B
E
C
F
G
A
D
O
