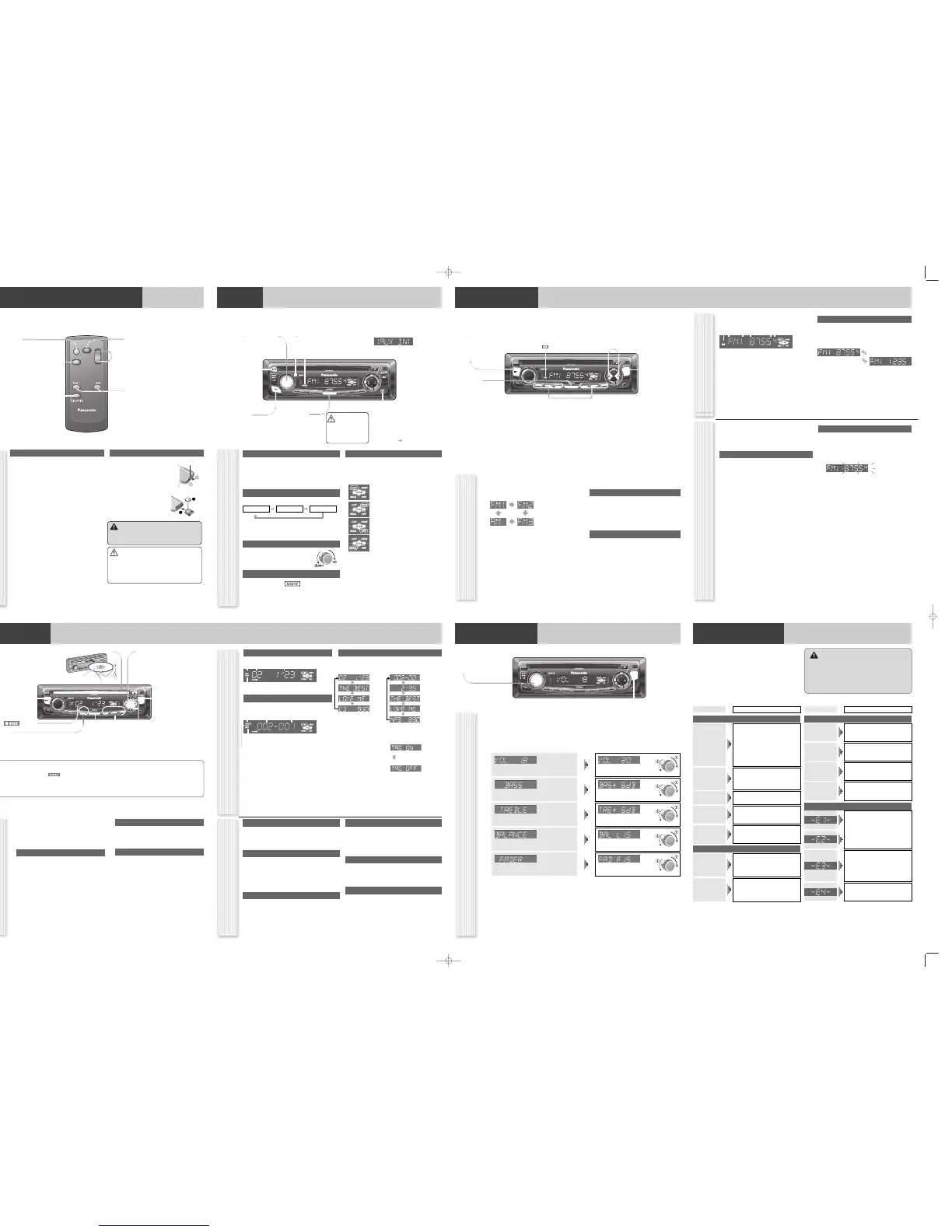

Remote Control Unit (Option)
Functions Only on Main Unit
The following functions are not available on remote control
unit.
¡SQ selection
¡Scroll
¡Disc eject
Battery Replacement
Functions
q Remove the battery holder with the
remote control unit placed on a flat
surface.
q Stick your thumbnail into the
groove, and push the holder in
the direction of the arrow at the
same time.
w
Pull it out in the direction of the
arrow using a tough pointed object.
w Put a battery in the case with (+)
side facing up.
e Put the case back.
Warning
¡Keep batteries away from children to avoid the risk of
accidents. If an infant ingests a battery, please seek
immediate medical attention.
Caution
¡ Remove and dispose of an old battery immediately.
¡ Do not disassemble, heat or short a battery. Do not
throw a battery into a fire or water.
¡ Follow local regulations when disposing of a battery.
¡Improper use of batteries may cause overheating, an
explosion or ignition, resulting in injury or a fire.
Notes: Battery Information:
Battery Type: Panasonic lithium battery (CR2025) (Included
in the remote control)
Battery Life: Approximately 6 months under normal use (at
room temperature)
Tough pointed object
Back side
¡ This instruction manual explains operations for use with the buttons on the main unit. (Different operations excluded)
Notes: The optional remote control unit is available from your local dealer. (CA-RC80N)
[PWR] (Power)
toggles power on/off.
[MODE]
Selects a mode (source).
[BAND]
Selects a band in the radio
source, toggls pause/play in the
player souce, and executes APM
in the radio source. (Hold down
it for more than 2 seconds.)
[MUTE]
toggles mute on/off.
[VOL{][VOL}]
adjust the volume.
[TUNE]][TUNE[]
down/up the frequency. (Hold down it for
more than 0.5 seconds for seek tuning.)
[TRACK6][TRACK7]
skip to the previous/next track/file in the
player mode.
Hold down it for fast reverse/fast for-
ward.
General Operations
Power On/Off
Set your car’s ignition switch to the ACC or ON position.
Power on: Press [SRC] (PWR).
Power off: Hold down [SRC] (PWR) for more
than 1 second.
Source Selection
Press [SRC] to change the source.
Volume Adjustment
(Setting Range: 0 to 40, Default: 18)
Turn [VOL].
Mute
ON: Press [MUTE]. ( lights.)
OFF: Press [MUTE] again.
SQ (Sound Quality)
SQ is a function that can call up various sound types at
the touch of button in accordance with your listening
music type.
Press [SQ] to select the sound type as follows:
Note: Settings of SQ, bass and treble are influenced one
another. If such an influence causes distortion to the audio
signal, readjust bass/treble or volume.
(FLAT) flat frequency response:
does not emphasize any part. (Default)
(ROCK) speedy and heavy sound:
exaggerates bass and treble.
(POP) wide-ranged and deep sound:
slightly emphasizes bass and treble.
(VOCAL) clear sound:
emphasizes middle tone and slightly empha-
sizes treble.
Radio
Disc Player AUX IN
V
O
L
SRC
/
PWR
1
2
3
4
5
6
CQ-C1405W
T
U
N
E
/
T
R
A
C
K
F
O
L
D
E
R
S
C
R
O
L
L
R
A
N
D
O
M
S
C
A
N
R
E
P
E
A
T
AUX
P
U
S
H
S
E
L
SQ
SRC/PWR
[MUTE]
toggles mute on/off.
Remote Control Sensor
for an optional remote control unit (CA-RC80N).
[VOL] (Volume)
adjusts the volume.
[SQ] (Sound Quality)
selects a sound type (SQ).
*
[SRC] (Source)
selects a source.
[PWR] (Power)
toggles power on/off.
*[AUX] (AUX IN)
to a line output of an external
sound/audio device.
(ex. Silicon audio player, HDD audio
player, etc)
(for details Installation Instructions)
Caution
Set the volume level to
low enough before the
AUX connection is com-
pleted.
*AUX IN mode:
lights when mute is on.
Radio (FM/AM)
Operation Flow
1
Press [SRC] to select the radio source.
2
Press [BAND] to select a band.
3
Select a station.
Frequency adjustment
[TUNE]]: Lower
[TUNE[]: Higher
Note: Hold down either of them for more than 0.5 sec-
onds and release it for seek tuning.
Preset station selection
Press the corresponding preset button from [1] – [6] to
tune in a preset station.
V
O
L
SRC
/
PWR
1
2
3
4
5
6
CQ-C1405W
T
U
N
E
/
T
R
A
C
K
F
O
L
D
E
R
S
C
R
O
L
L
R
A
N
D
O
M
S
C
A
N
R
E
P
E
A
T
AUX
P
U
S
H
S
E
L
SQ
APM
BAND
DISP
1
2
3
4
5
6
SRC/PWR
[TUNE ]] [TUNE []
Down/up the frequency. (Hold it
down for more than 0.5 seconds
and release it for seek tuning.)
[BAND]
selects a band in the radio source.
(APM) (
Auto Preset Memory)
executes APM in the radio source. (Hold it
down for more than 2 seconds.)
[DISP] (Display)
switches the informa-
tion on the display.
[SRC] (Source)
selects a source.
Preset buttons [1] – [6]
selects a preset station in the radio source,
and presets the current station. (Hold it down
for more than 2 seconds.)
(Stereo) indicator
Station Preset
Up to 6 stations can be preset in AM, FM1, FM2, and FM3
respectively.
Preset stations can be simply called up by pressing [1] –
[6].
Auto Preset Memory (APM)
With this operation, stations with good receiving conditions
can be automatically stored in the preset memory.
1
Select a band.
2
Hold down [BAND] (APM) for more than 2
seconds.
The preset stations under best receiving conditions are
received for 5 seconds each after presetting the stations
(SCAN). To stop scanning, press one of the buttons
from [1] – [6].
Note: New stations overwrite existing saved stations.
Manual station preset
1
Tune into a station.
2
Hold down one of the preset buttons from
[1] – [6] for more than 2 seconds.
(blinks once)
Note: New stations overwrite existing saved stations.
lights while receiving an FM stereo signal
Frequency Preset Number
Band
Display change
Press [DISP] to change the display.
Radio mode display (Default)
Radio Source Display
Clock display
Operation Flow
1
Press [SRC] to select the Disc Player
source.
2
Select a desired portion.
Track/file selection
Press [6] / [7].
Note: To perform fast forward/reverse, hold down
either of them.
Disc Player (CD-DA disc):
Previous/next track
Disc Player (MP3 disc):
Previous/next file
Folder selection (MP3)
Disc Player (MP3 disc):
Press [{] / [}].
Skip to the previous/next folder.
Pause
Press [BAND] (
y
/
5
).
Press again to cancel.
Caution
¡ Do not insert a disc when the indicator lights.
¡ Refer to the section of “Notes on Discs” and “Notes
on MP3.
¡ This unit does not support 8 cm discs.
¡ If you insert an 8 cm disc and cannot eject it, turn the ignition
key to the ACC OFF position once and turn the key to the ACC
ON position again, then press [u] (Eject).
¡Do not insert foreign objects into the disc slot.
V
O
L
SRC
/
PWR
1
2
3
4
5
6
CQ-C1405W
T
U
N
E
/
T
R
A
C
K
F
O
L
D
E
R
S
C
R
O
L
L
R
A
N
D
O
M
S
C
A
N
R
E
P
E
A
T
AUX
P
U
S
H
S
E
L
SQ
APM
BAND
3
4
5
6
SRC/PWR
DISP
Disc slot
takes a disc in with the printed side facing up.
Notes:
¡ The power will be turned on automatically when
a disc is loaded.
¡ A disc which has both CD-DA data and MP3
data on it may not be reproduced normally.
(
y
/
5
) (Pause/Play)
toggles pause/play in the
player source.
[DISP] (Display)
switches the information
on the display.
[6] [7]
skip to the previous/next
track/file in the player mode.
Hold down either of them for
fast reverse/fast forward.
[SRC] (Source)
selects a source.
[3] (SCROLL)
scrolls the information on display.
[
{] [}]
skip to the previous/next folder in MP3 mode.
[u] (Eject)
ejects the disc.
indicator
[4] (RANDOM)/[5] (SCAN)/[6] (REPEAT)
toggles on/off each play mode.
Printed side up
Random, Repeat, Scan
Random play
All the available tracks/files are played in a random sequence.
Press [4] (RANDOM).
Press again to cancel.
Folder random play (MP3)
All the available files in current folder are played in a random
sequence.
Hold down [4] (RANDOM) for more than 2
seconds.
Hold down again to cancel.
Repeat play
The current track/file is repeated.
Press [6] (REPEAT).
Press again to cancel.
Folder repeat play (MP3)
The current folder is repeated.
Hold down [6] (REPEAT) for more than 2
seconds.
Hold down again to cancel.
Scan play
The first 10 seconds of each track/file is played in sequence.
Press [5] (SCAN).
Press again to cancel.
Folder scan play (MP3)
From the next folder, the first 10 seconds of the first file in
each folder is played in sequence.
Hold down [5] (SCAN) for more than 2 sec-
onds.
Hold down again to cancel.
Display change
Press [DISP] to change.
Player Source Display
Disc title
Normal
Track title
Clock
Disc Player (CD-DA disc)
Disc Player (MP3 disc):
Play time
Normal
Folder name/
Album*
File name/
Title, artist*
Clock
Notes:
¡ For scrolling text, press [3] (SCROLL) .
¡ “NO TEXT” is displayed when there is no information on the
disc.
*ID3 Tag On/Off
Hold down [3] for more
than 2 seconds.
album title and song title
/artist name are displayed.
(Default)
folder name/file name are
displayed.
CD-DA mode display
Track number
Random indicator
Play time
Repeat indicator
MP3 mode display
Folder number
lights when folder random/repeat/scan is on.
File number
Repeat indicator
Random indicator
Audio Menu
Note: If the fader is set to front, the pre-amp. output
(rear) is decreased.
1
Press [VOL]
(PUSH SEL)
to display the audio menu display.
Note: If no operation takes place for more than 5 seconds in the audio menu (2 seconds in Main volume adjustment),
the display returns to the regular mode.
2
Press
[VOL]
(PUSH SEL) to select a
mode to be adjusted.
3
Turn [VOL] clockwise or counterclock-
wise to adjust.
(Setting Range: 0 to 40, Default: 18)
q : Up
w : Down
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
q : Increased
w : Decreased
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
q : Increased
w : Decreased
(Setting Range: 15 levels each, Default CNT (cen-
ter))
q : Right enhanced
w : Left enhanced
(Setting Range: 15 levels each, Default CNT (cen-
ter))
q : Front enhanced
w : Rear enhanced
Volume
Bass
Treble
Balance
Fader
V
O
L
SRC
/
PWR
1
2
3
4
5
6
CQ-C1405W
T
U
N
E
/
T
R
A
C
K
F
O
L
D
E
R
S
C
R
O
L
L
R
A
N
D
O
M
S
C
A
N
R
E
P
E
A
T
AUX
P
U
S
H
S
E
L
SQ
DISP
[DISP] (Display)
exits from the audio menu.
[VOL]
selects a value in the audio menu.
(PUSH SEL) (Push to Select)
selects items in the audio menu.
Troubleshooting
Trouble
Check point
No power
●
Start the engine. (Or turn the ignition
switch to the ACC position.)
● Verify the wiring. (battery lead, power
lead, ground lead, etc.)
● Fuse blown (Contact the nearest
Panasonic Service Center.)
● Ask a professional for fuse replacement.
● Be sure to use the same rated fuse.
No sound
●
Disable the mute function.
● Verify the wiring.
●
Wait until the dew disappears before
turning on the unit.
Noise
● Make sure that grounding is established
properly.
Common
Frequent
noise
●
Tune in to another station of high-inten-
sity waves.
● Make sure that the antenna mounted
point is grounded properly.
Radio
Preset data
deleted
●
The preset memory is cleared to return
to the original factory setting when the
power connector or battery is discon-
nected.
No sound, or disc
is automatically
ejected
●
Load the disc correctly.
●
Clean the disc.
Disc Player
Sound skip,
poor sound
quality
●
Clean the disc.
Sound skip
due to
vibration
● The maximum permissible tilt angle is
30°.
● Secure the unit.
Disc
unejectable
●
Press
[u].
If the disc is still not
ejected, contact the nearest Panasonic
Service Center.
No sound from
left, right, front,
or rear speaker
●
Adjust the balance and fader.
● Verify the wiring.
Trouble
Check point
Left and right
sounds are
reversed
● Connect the speaker lead correctly.
Error Display Messages
No operation by some cause.
●
If normal operation is not restored, con-
sult your dealer or the nearest Service
Center to ask for repairs.
Cannot read the file
●
Check the file.
If You Suspect Something Wrong
Check and take steps as described below.
If the described suggestions do not solve the problem, it is recom-
mended to take the unit to your nearest authorized Panasonic Service
center. The product should be serviced only by qualified personnel.
Please refer the checking and the repair to professionals. Panasonic
shall not be liable for any accidents arising out of neglect of checking
the unit or your own repair after your checking.
Warning
¡ Do not use the unit in an irregular condition, for example, with-
out sound, or with smoke or a foul smell, which can cause
ignition or electric shock. Immediately stop using the unit and
consult your dealer.
¡ Never try to repair the unit by yourself because it is dangerous
to do so.
Never take measures especially for those other than indicated by
italic
letters in “Check point” described below because those are
too dangerous for users to handle themselves.
(The disc is ejected automatically.)
The disc is dirty, or is upside down.
The disc has scratches.
●
Check the disc.
CQ-C1405WOIEng(90%) 11/06/2006 03:05 PM ›¶›– 2
To Next Page
Loading...
