2 Specifications
2.1. Specifications*

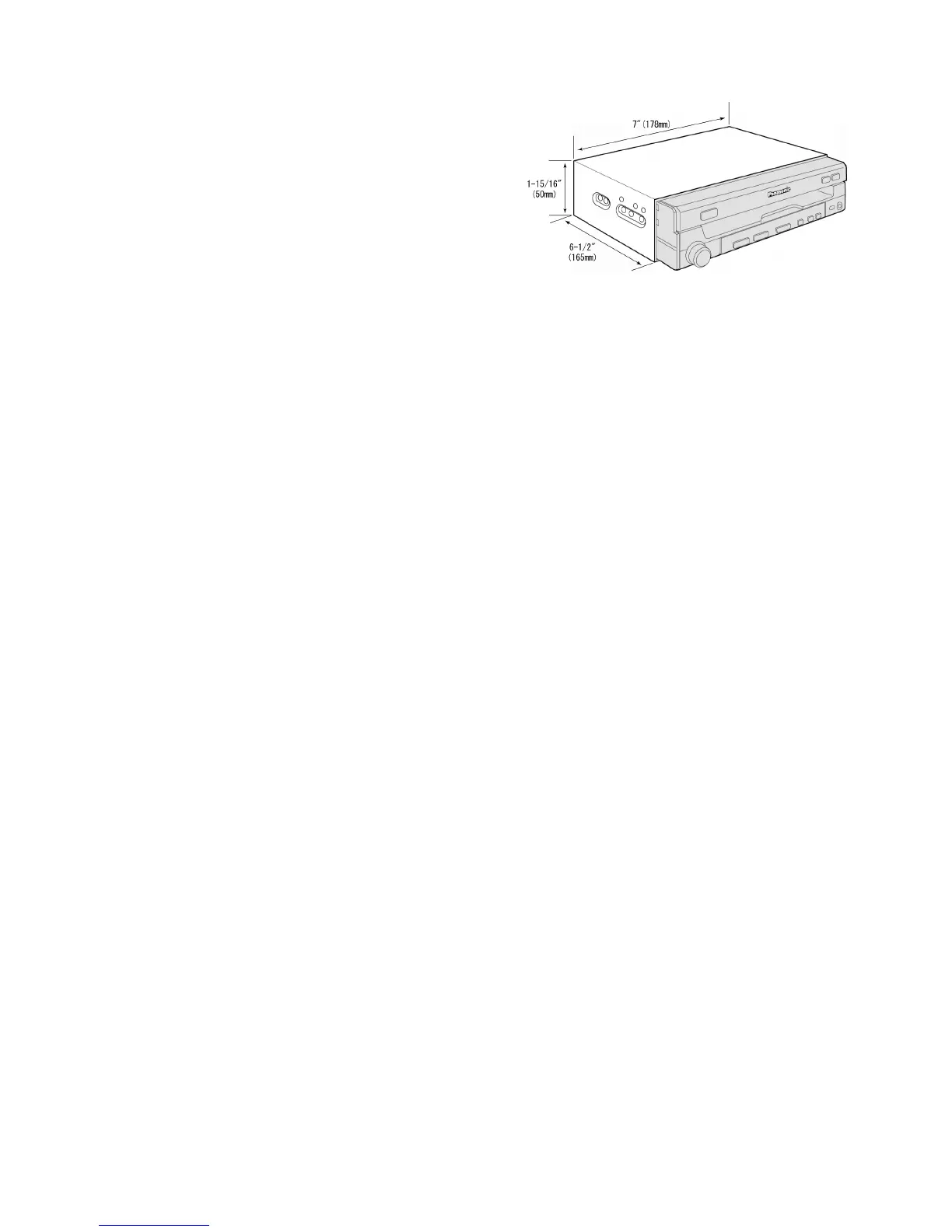

2.2. Dimensions
General
Power Supply DC 12V (11V - 16V)
Test Voltage 14.4V
Negative Ground
Current Consumption Less than 10A (during disc playback)
Maximum Power Output 45 W x 4CH
Power Output 18 W x 4CH
Compatible Speaker Imped-
ance
4 Ω
Video Input Signal Composite video signal, 1.0 Vp-p (75
Ω)
Audio Input Sensitivity 2 Vrms
Video Output Signal Composite video signal, 1.0 Vp-p (75
Ω)
Pre-Amp Output Voltage 2 Vrms
Pre-Amp Output Impedance Less than 600 Ω
Dimensions (W×H×D)** 178×50×165mm (7”×1-15/16"×6-1/2")
Weight** 2.4 kg {5 lbs. 5 oz.}
Front AV input (AV1 IN)
Input Impedance 47 kΩ
Allowable External Input 2.0 V
Connector 3.5 mm stereo mini pin (Equipped with
video input terminal)
Audio Input Sensitivity 2 Vrms
Video Output Signal Composite video signal, 1.0 Vp-p (75
Ω)
FM stereo radio
Frequency Range 87.9 MHz - 107.9 MHz
Usable Sensitivity 12.2 dBf
Stereo Separation 30 dB (at 1 kHz)
S/N ratio 62 dB
AM Radio
Frequency Range 530 kHz - 1710 kHz
Usable Sensitivity 28 dB/µV
Image Rejection Ratio 50 dB
Audio section
Output Voltage/Impedance 2 Vrms/600 Ω
Frequency Characteristics 20 Hz-20 kHz (±1 dB)
Dynamic Range 96 dB (during CD playback)
S/N ratio 95 dB (during CD playback)
Monitor
Liquid Crystal Panel 7” wide
Screen
Dimensions (W×H×D)**
154×87×177 mm (6-1/16”×3-7/16"×6-
15/16")
Number of Pixels 336 960 pixels (234 vertical × 480 hor-
izontal × 3)
Valid Pixel Ratio Over 99.99%
Display Method Transparent color filter format
Drive Method TFT (Thin Film Transistor) active
matrix format
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
*** Above specifications comply with EIA standards.
