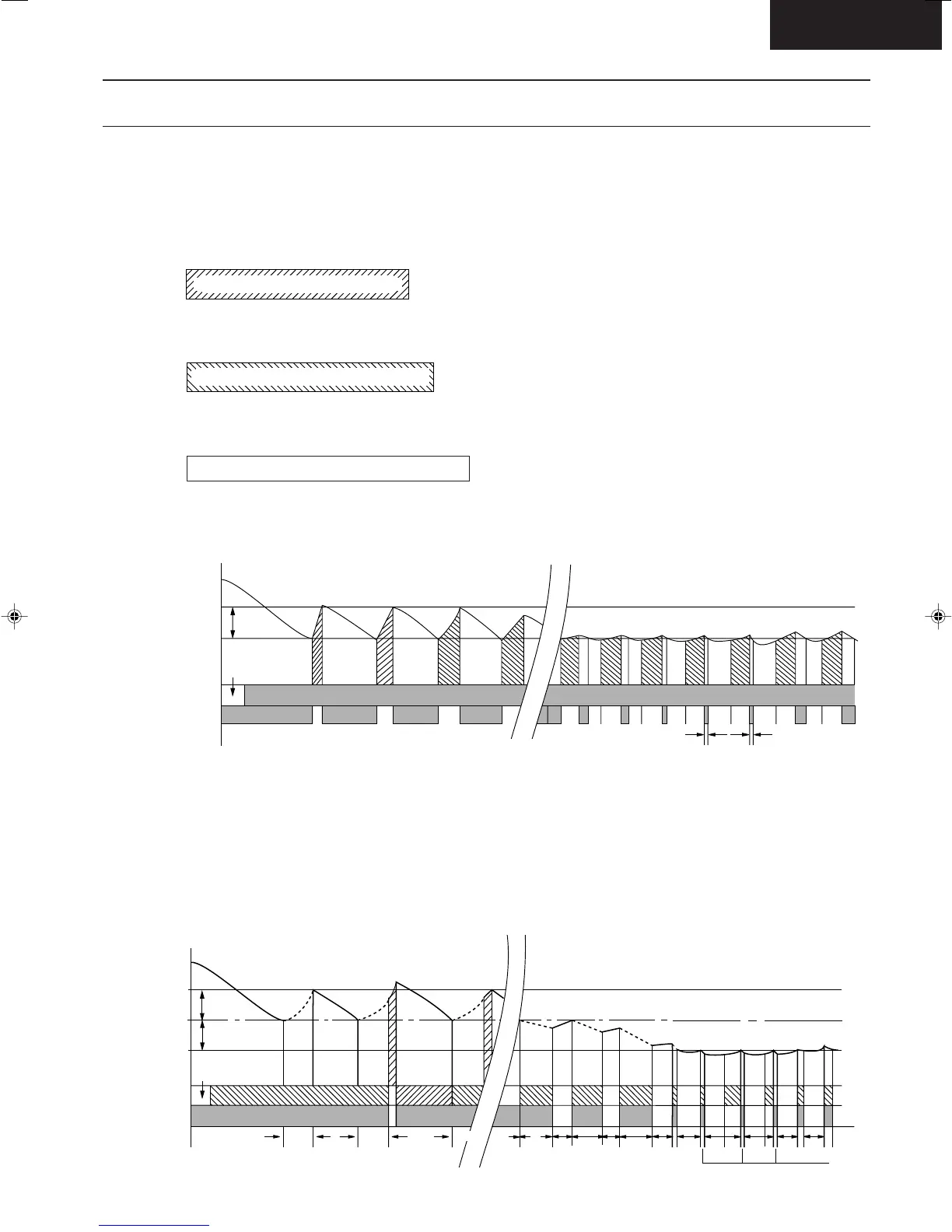

1) Cooling Mode Operation
When selecting the Cooling ( d ) Mode Operation, the unit will operate according to the setting by the Remote Control
and the operation is as the following.
3 min. ---The Compressor is ceased for 3 minutes to balance the pressure in the refrigeration cycle.
(Protection of compressor)
7 min. ---The unit will automatically operate in 7 minutes even if the room temperature is not reached.
(Prevention of raising the humidity)
30 sec. ---The compressor is switched ON at once, it is to be operated for 30 seconds.
(Protection of compressor)
30sec
6min
6min6min
6min
6min
10min
10min
10min
10min 10min 10min
6min6min 6min
6min
INDOOR FAN
COMPRESSOR
Soft Dry Off
(Comp. OFF)
Cooling OFF
(Set Temp.)
Comp. ON
Room Temp.
1.5°C
1.5°C
2) Soft Dry Mode Operation
When selecting the Soft Dry ( f ) Mode Operation, the operation will be cooling until the Room Temperature
reaches the Set Temp on the remote control, and then Soft Dry will activate.
(During Soft Dry operation, the fan of the indoor unit will operate at Low fan speed and operation will be switched on
and off for up to 10 minutes on and 6 minutes off.)
COMPRESSOR
Room Temp.
Comp. ON
Comp. OFF
(Set Temp.)
INDOOR FAN
1.5°C
30 sec
30 sec
Time Delay Safety Control
Automatic Restarting Control
Compressor Forced Operation Control
Starting Current
Control (1.6 sec
delay)
Starting Current
Control (1.6 sec
delay)
