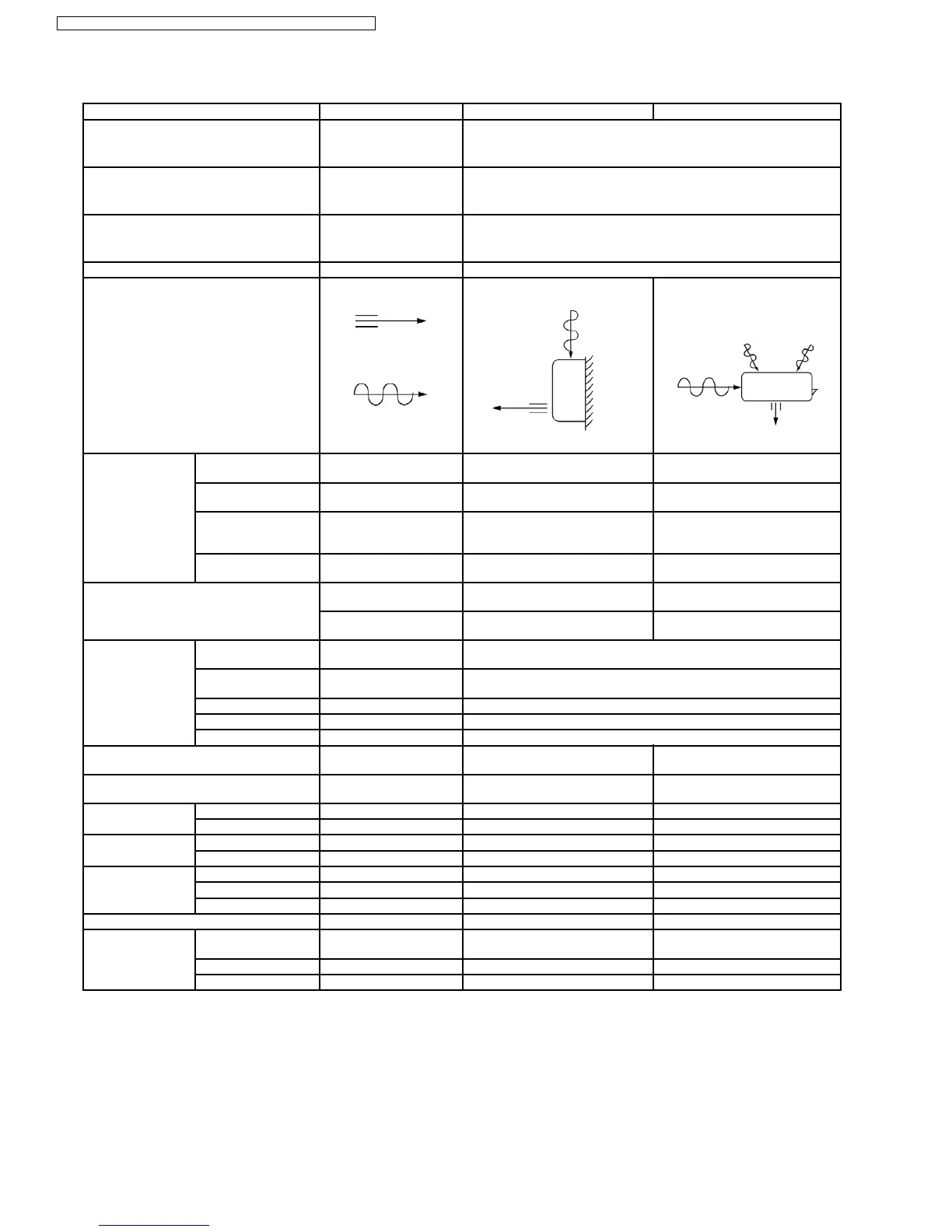

3.2. CS-A9DKD CU-A9DKD
Unit Indoor Unit Outdoor Unit
Power Source (Phase, Voltage, Cycle) ø, V, Hz Single, 220 - 230, 50
Cooling Capacity kW (BTU/h) 2.65 -2.65 (9,040 - 9,040)
Heating Capacity kW (BTU/h) 2.80 - 2.85 (9,550 - 9,720)
Moisture Removal l/h (Pint/h) 1.6 (3.4)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) Cooling; 5.8 (204) - 5.8 (204)
Heating; 6.2 (220) - 6.2 (220)
—
Me m
3
/min (cfm) Cooling; 7.1 (251) - 7.1 (251)
Heating; 7.1 (251) - 7.1 (251)
—
Hi m
3
/min (cfm) Cooling; 8.6 (300) - 8.6 (300)
Heating; 9.4 (330) - 9.4 (330)
Cooling; 29.5 (1,040) - 30.0
(1,060)
SHi m
3
/min (cfm) Cooling; 9.4 (333) - 9.4 (333)
Heating; —
—
Noise Level dB (A) Cooling; High 36 - 36, Low 26 - 26
Heating; High 38 - 38, Low 28 - 28
Cooling; High 48 - 49
Heating; High 48 - 49
Power level dB Cooling; High 49 - 49
Heating; High 51 - 51
Cooling; High 63 - 64
Heating; High 64 - 65
Electrical Data Input Power kW Cooling; 0.83 - 0.86
Heating; 0.70 - 0.74
Running Current A Cooling; 3.9 - 3.9
Heating; 3.3 - 3.3
EER W/W (BTU/hW) Cooling; 3.19 - 3.08 (10.9 - 10.5)
COP - (BTU/hW) Heating; 4.00 - 3.85 (13.6 - 13.1)
Starting Current A 18.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (1.5 mm
2
) —
Dimensions Height inch (mm) 11 - 1/32 (280) 20 - 3/32 (510)
Width inch (mm) 31 - 15/32 (799) 25 - 19/32 (650)
Depth inch (mm) 7 - 7/32 (183) 9 - 1/16 (230)
Net Weight lb (kg) 20 (9.0) 60 (27)
Compressor Description — Rotary (1 cylinder)
rolling piston type
Motor Type — Induction (2-poles)
Rated Output W — 750
8
CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /
