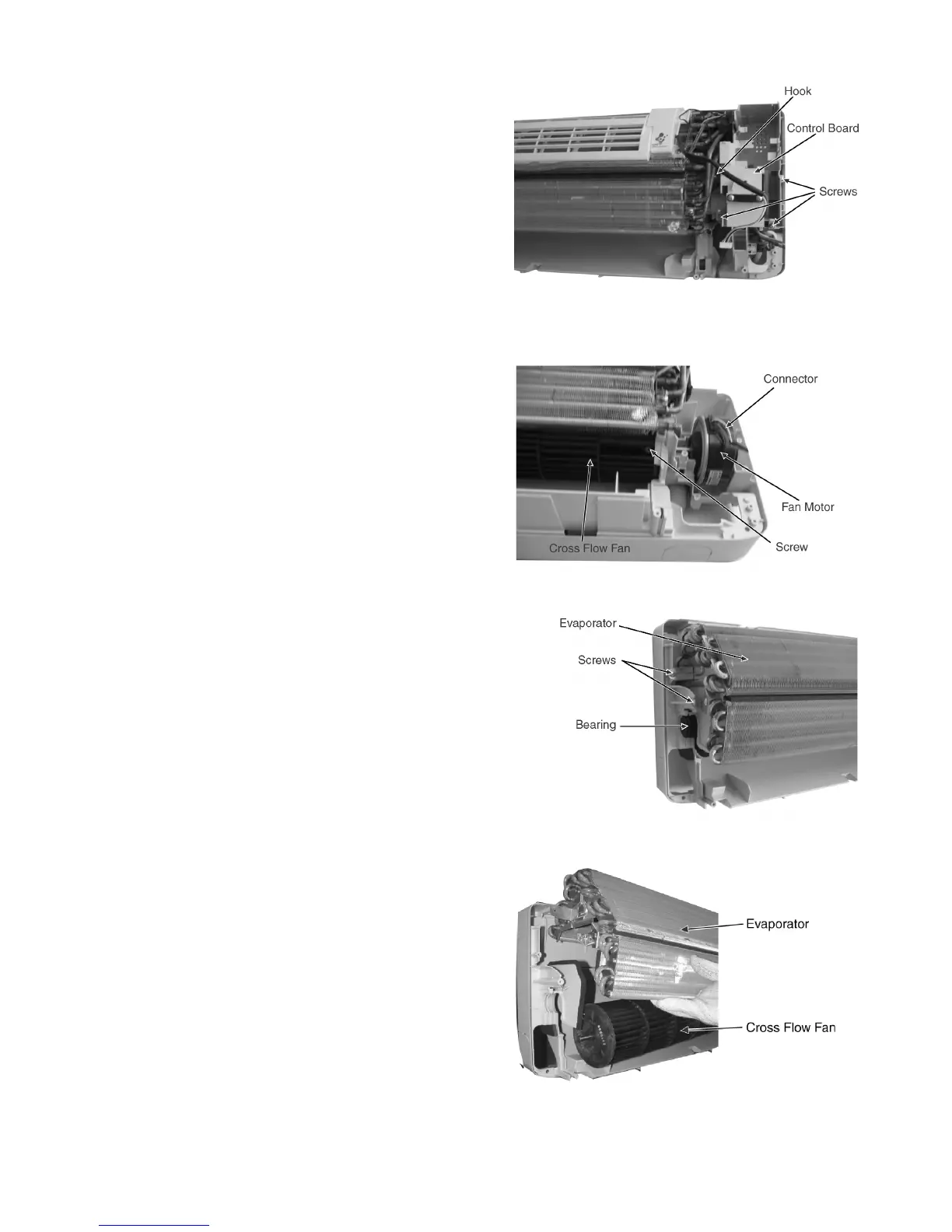

14.1.5. To remove the Control Board
• Release the 3 screws. (Fig. 9)
• By pressing down the hook at the left, you will be able to
remove the Control Board. (Fig. 9)
Fig. 9
14.1.6. To remove the Cross Flow Fan and Indoor Fan Motor
• Remove the screw at the Cross Flow Fan. (Fig. 10)
Reminder:-
To reinstall the Fan Motor, please adjust the connector
location is positioned 90° with Fan Motor before fixing
Control Board. (Fig. 10)
• Remove the Bearing. (Fig. 11)
• Remove the screws at the left of the Evaporator. (Fig. 11)
• Push up the Evaporator and pull out the Cross Flow Fan
from shaft. By then, Fan Motor can be taken out. (Fig. 12)
Fig. 10
Fig. 11
Fig. 12
