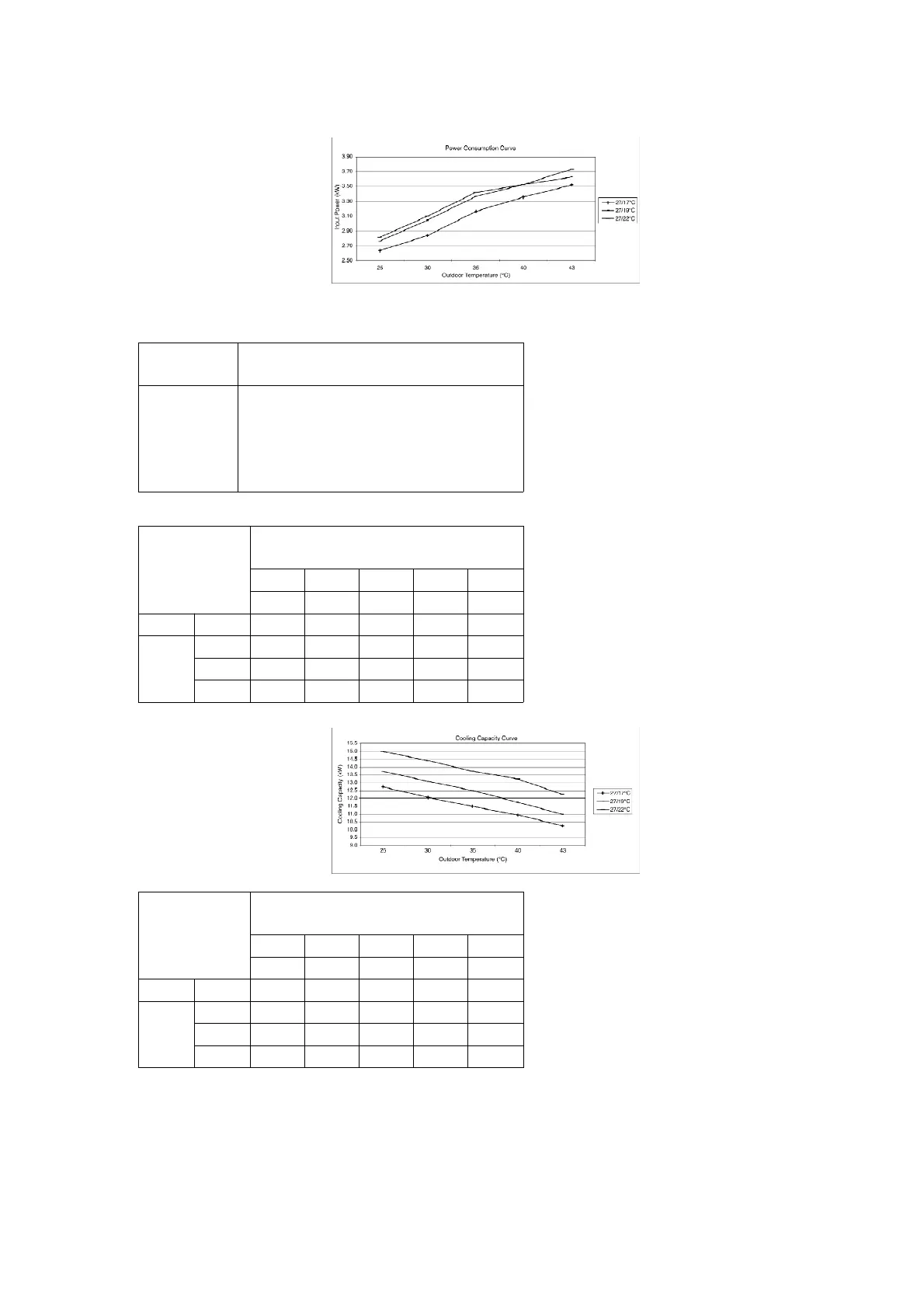

Panasonic CS-A24BB4P Service Manual

TC = Total Cooling Capacity
IPT = Power Consumption
Model Cooling capacities are based on
conditions below.
CS-
A43BB4P
Cooling
capacity
12.5 kW
3 phase, 50Hz, 400V / Indoor
temperature 27°C D.B. 19°C W.B. /
Outdoor temperature 35°C D.B. /
Standard air volume 30m
3
/min
Entering Temperature Air Entering
Condenser (°C D.B.)
Air 25 30 35 40 43
Temperature TC TC TC TC TC
D.B. W.B. kW kW kW kW kW
17 12.7 12.1 11.5 10.9 10.2
27 19 13.8 13.1 12.5 11.8 11.0
22 15.0 14.3 13.7 13.2 12.2
Entering Temperature Air Entering
Condenser (°C D.B.)
Air 25 30 35 40 43
Temperature IPT IPT IPT IPT IPT
D.B. W.B. kW kW kW kW kW
17 3.39 3.71 4.04 4.39 4.70
27 19 3.63 3.91 4.25 4.62 4.90
22 3.88 4.18 4.55 4.80 5.04
93
