Attached accessories
Applicable: Flaring piping kit CZ-52F
SELECT THE BEST LOCATION
INDOOR UNIT
•
There should not be any heat source or steam near the
unit.
•
There should not be any obstacles blocking the air
circulation.
•
A place where air circulation in the room is good.
•
A place where air drainage can be easily done.
•
A place where noise prevention is taken into
consideration.
•
Do not install the unit near the door way.
•
Ensure the spaces indicated by arrows from the wall,
ceiling, or other obstacles.
•
Indoor unit of this room air conditioner shall be installed
on the wall in a height of at least 2.5 m.
OUTDOOR UNIT
•
If an awning is built over the unit to prevent direct
sunlight or rain, be careful that heat radiation from the
condenser is not obstructed.
•
There should not be any animal or plant which could be
affected by hot discharged air.
•
Keep the spaces indicated by arrows from wall, ceiling,
fence or other obstacles.
•
Do not place any obstacles which may cause a short
circuit of the discharged air.
•
If piping length is over 10 m, additional refrigerant
should be added as shown in the table.
Piping length and the elevation
Pipe size Max.
Piping
Length
A (m)
Max.
Elevation
B (m)
Rated Additional
Refrigerant
(g/m)
Model Gas Liquid Length Elevation
W28BKP5 5/8”
1/4”
30 25 7.5 5 40
Example:
If the unit will be installed at a 12 m distance, the quantity of

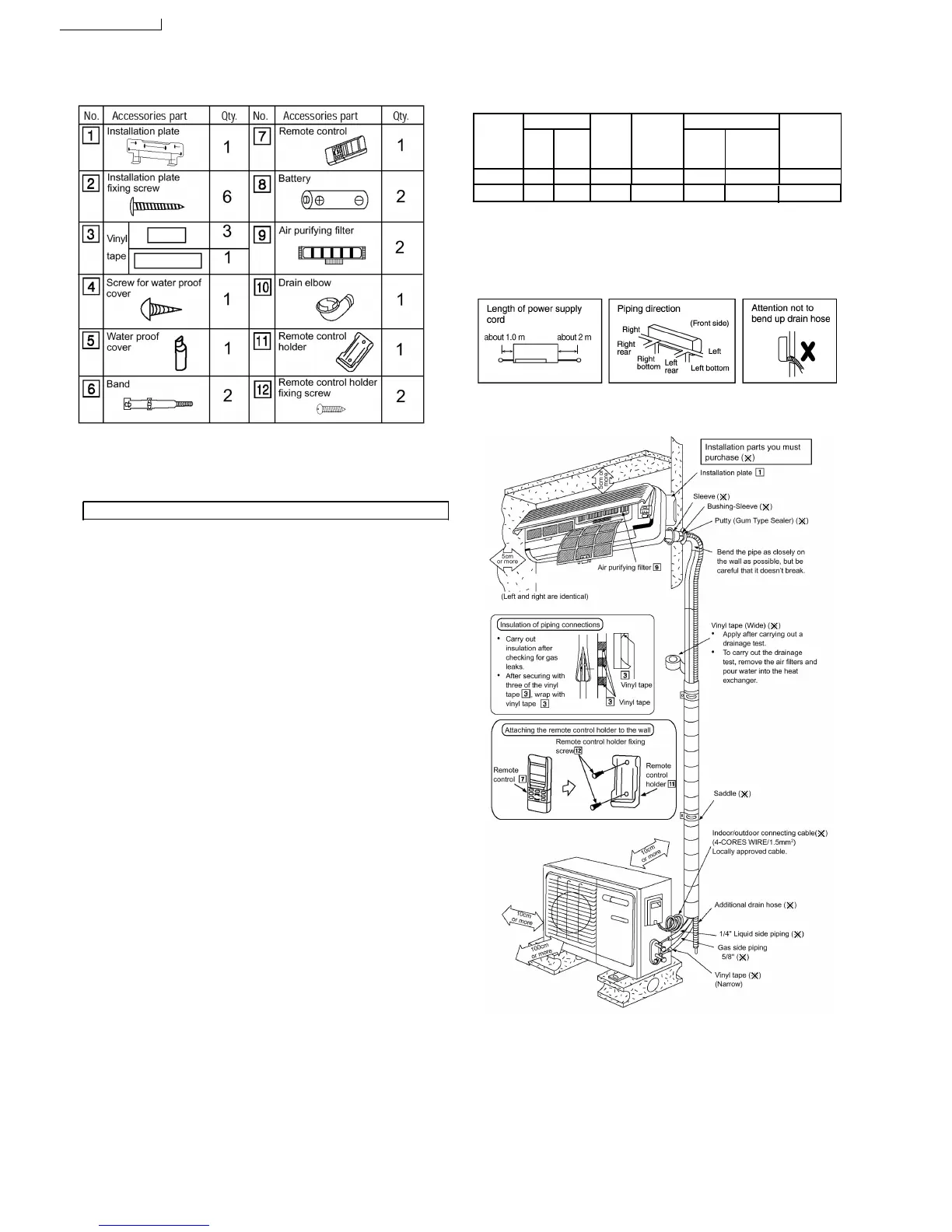

Indoor/Outdoor unit installation diagram
•
This illustration is for explanation purposes only.
The indoor unit will actually face a different way.
44
CS-A28BKP5/CU-A28BKP5
additional refrigerant should be 80 g...(12-10 m) × 40 g/m = 80g
A28BKP5 5/8”
1/4”
30
25
7.5 5 40
