Panasonic CS-A90KE User Manual

CS-A70KE

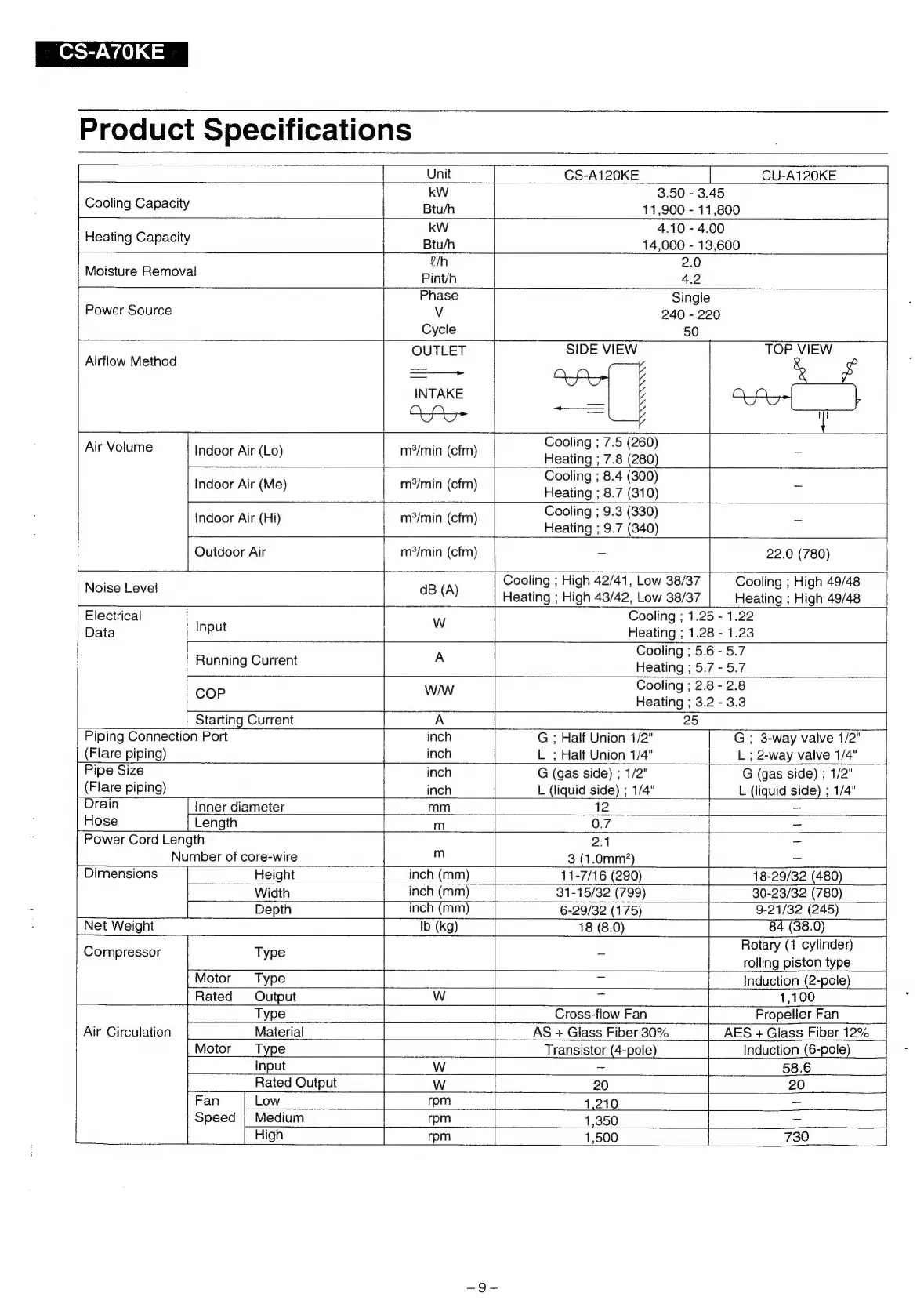

Product Specifications
Unit CS-A120KE CU-A120KE
kW 3.50 - 3.45
Cooling
Capacity
Btu/h
11,900
-
11,800
: : kw 4.10 - 4.00
Heating
Capacity
Btu/h
14,000
-
13,600
£/h 2.0
Moisture
Removal
Pint/h
4.2
Phase Single
Power
Source
Vv
240
-
220
Cycle 50
OUTLET SIDE VIEW TOP VIEW
Airflow Method —
INTAKE _
rus
Cooling ; 7.5 (260
Air Volume Indoor Air (Lo) m/min (cfm) Heating :7.8 aa 7
Indoor Air (Me) m/min (cfm) care te eee ~
dcpes aii Cooling ; 9.3 (330)
Indoor Air (Hi) m/min (cfm) Heating : 9.7 (340) -
Outdoor Air m/min (cfm) ~ 22.0 (780)
; Cooling ; High 42/41, Low 38/37 Cooling ; High 49/48
Norse eve dB (A) Heating ; High 43/42, Low 38/37 | _ Heating ; High 49/48
Electrical Ww Cooling ; 1.25 - 1.22
Data Input Heating ; 1.28 - 1.23
Running Current A He ihe =
Cooling ; 2.8 - 2.8
COP mM Heating ; 3.2 -3.3
Starting Current A 25
Piping Connection Port inch G ; Half Union 1/2" G; 3-way valve 1/2"
(Flare piping) inch L ; Half Union 1/4" L ; 2-way valve 1/4"
Pipe
Size
inch
G
(gas
side)
;
1/2"
G
(gas
side)
;
1/2"
(Flare piping) inch L (liquid side) ; 1/4" |___L (liquid side) ; 1/4"
Drain
Inner
diameter
mm
12
=
Hose
Length
m
0.7
=
Power
Cord
Length
2.1
|
=
Number
of
core-wire
-
3
(1.0mm?)
=
Dimensions Height inch (mm) 11-7/16 (290) | 18-29/32 (480)
Width inch (mm) 31-15/32 (799) 30-23/32 (780)
Depth inch (mm) 6-29/32 (175) 9-21/32 (245)
Net Weight Ib (kg) 18 (8.0) 84 (38.0)
Rotary (1 cylinder)
OMBISSSor ype 7 rolling piston type
| Motor Type = Induction (2-pole)
Rated Output WwW a 1,100
Type Cross-flow Fan Propeller Fan
Air Circulation Material AS + Glass Fiber 30% AES + Glass Fiber 12%
Motor Type Transistor (4-pole) Induction (6-pole)
Input W = 58.6
Rated Output Ww 20 20
Fan Low rom 1,210 =
Speed | Medium rpm 1,350 a
High rpm 1,500 730

Panasonic CS-A90KE Specifications

General

Brand	Panasonic
Model	CS-A90KE
Category	Air Conditioner
Language	English
