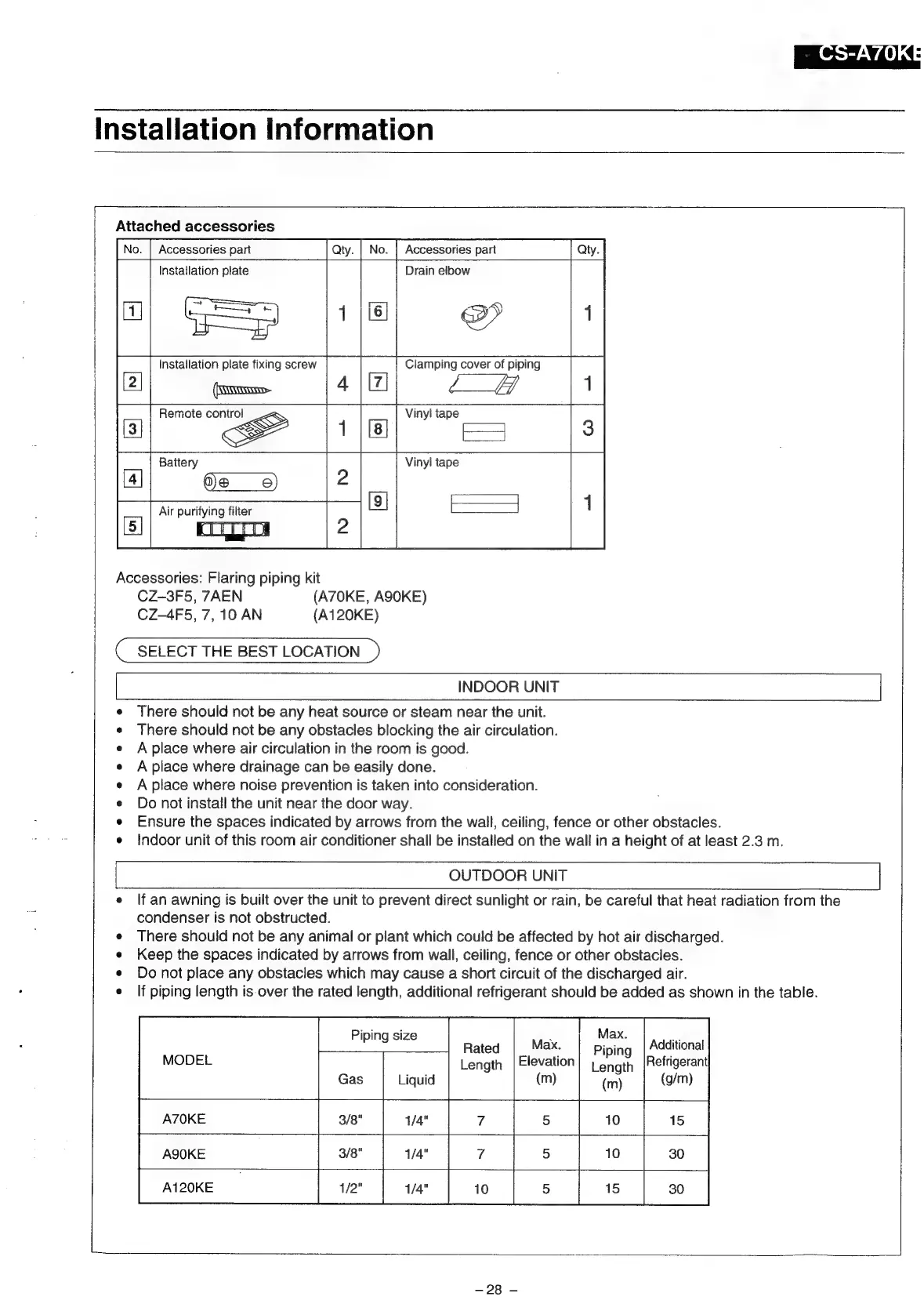

installation Information
Mees
Attached accessories
Accessories part
Accessories part
Installation plate
[ry]
Installation plate fixing screw
(MD
A] | fe]
Remote control
SA
Drain elbow
>
Clamping cover of piping
Vinyl tape
Battery
Air purifying filter
Vinyl tape
Booed
Accessories: Flaring piping kit
CZ-3F5, 7AEN (A70KE, A90KE)
CZ—4F5, 7, 10 AN (A120KE)
SELECT THE BEST LOCATION
INDOOR UNIT
¢ There should not be any heat source or steam near the unit.
e There should not be any obstacles blocking the air circulation.
e Aplace where air circulation in the room is good.
¢« A place where drainage can be easily done.
¢ A place where noise prevention is taken into consideration.
e Do not install the unit near the door way.
e Ensure the spaces indicated by arrows from the wall, ceiling, fence or other obstacles.
e Indoor unit of this room air conditioner shall be installed on the wall in a height of at least 2.3 m.
OUTDOOR UNIT
e If an awning is built over the unit to prevent direct sunlight or rain, be careful that heat radiation from the
condenser is not obstructed.
e There should not be any animal or plant which could be affected by hot air discharged.
e Keep the spaces indicated by arrows from wall, ceiling, fence or other obstacles.
¢ Do not place any obstacles which may cause a short circuit of the discharged air.
e
If piping length is-over the rated length, additional refrigerant should be added as shown in the table.
Piping
size
Additional
Length | Elevation Refrigerant
(m) (g/m)
A70KE
ASOKE
15
30
A120KE
30
—28 -
