Panasonic CS-A90KE - Supplement - Wiring Diagram Updates; Revised Wiring Diagram (CS-A90 KE;A120 KE)

Previous Diagram.
(Page : 16)

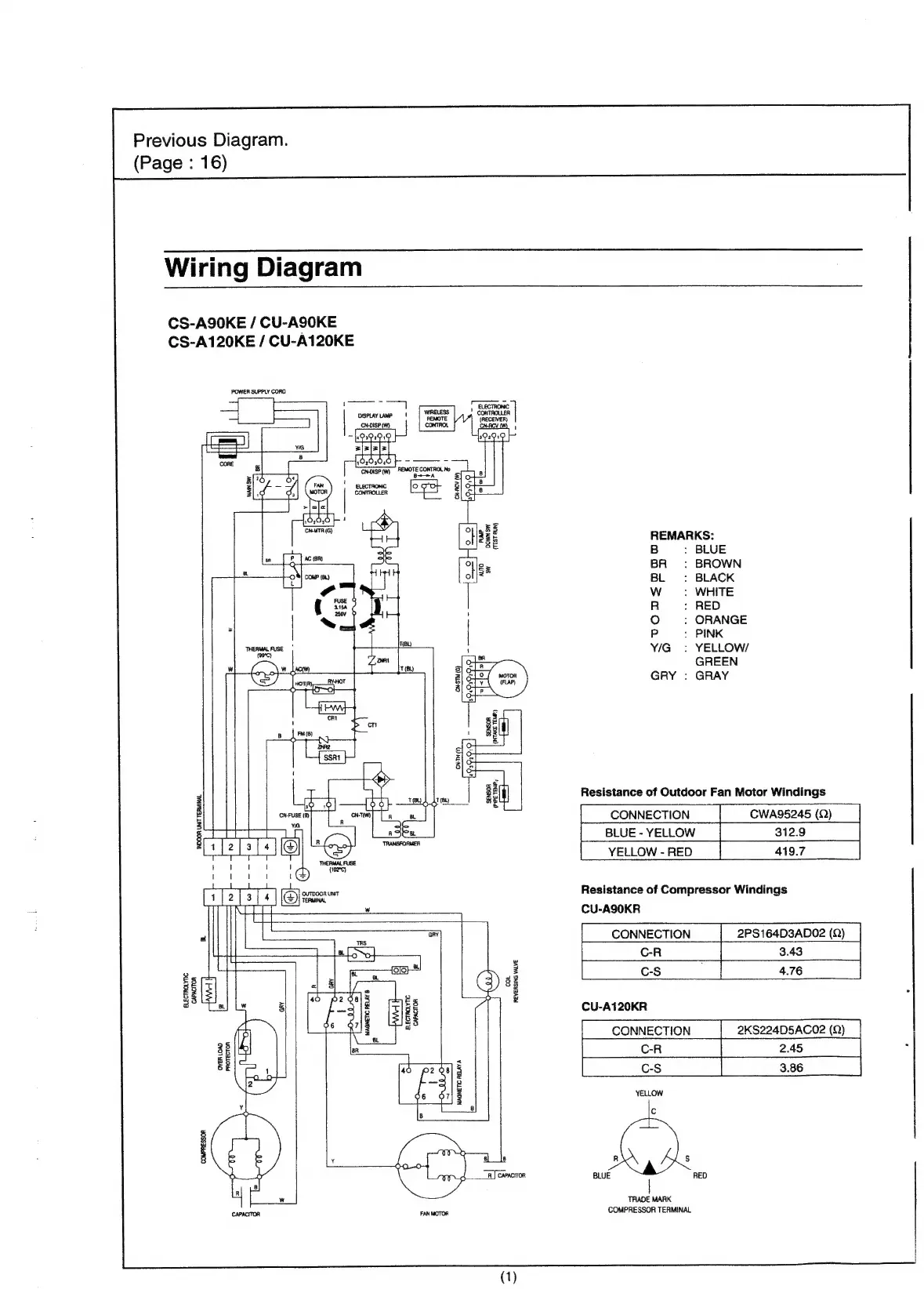

Wiring Diagram
CS-A90KE / CU-ASOKE
CS-A120KE / CU-A120KE
REMARKS:
B : BLUE
BR : BROWN
BL : BLACK
W : WHITE
R : RED
10) : ORANGE
P : PINK
YIG : YELLOW/
GREEN
GRY : GRAY
Resistance of Outdoor Fan Motor Windings
CONNECTION CWAQ95245 (Q)
BLUE - YELLOW 312.9
YELLOW - RED 419.7
Resistance of Compressor Windings
CU-AS0KR
CONNECTION 2PS164D3AD02 (Q)
CU-A120KR
CONNECTION 2KS224D5AC02 (Q)
YELLOW
c
R S
BLUE RED
TRADE MARK
COMPRESSOR TERMINAL
(1)
