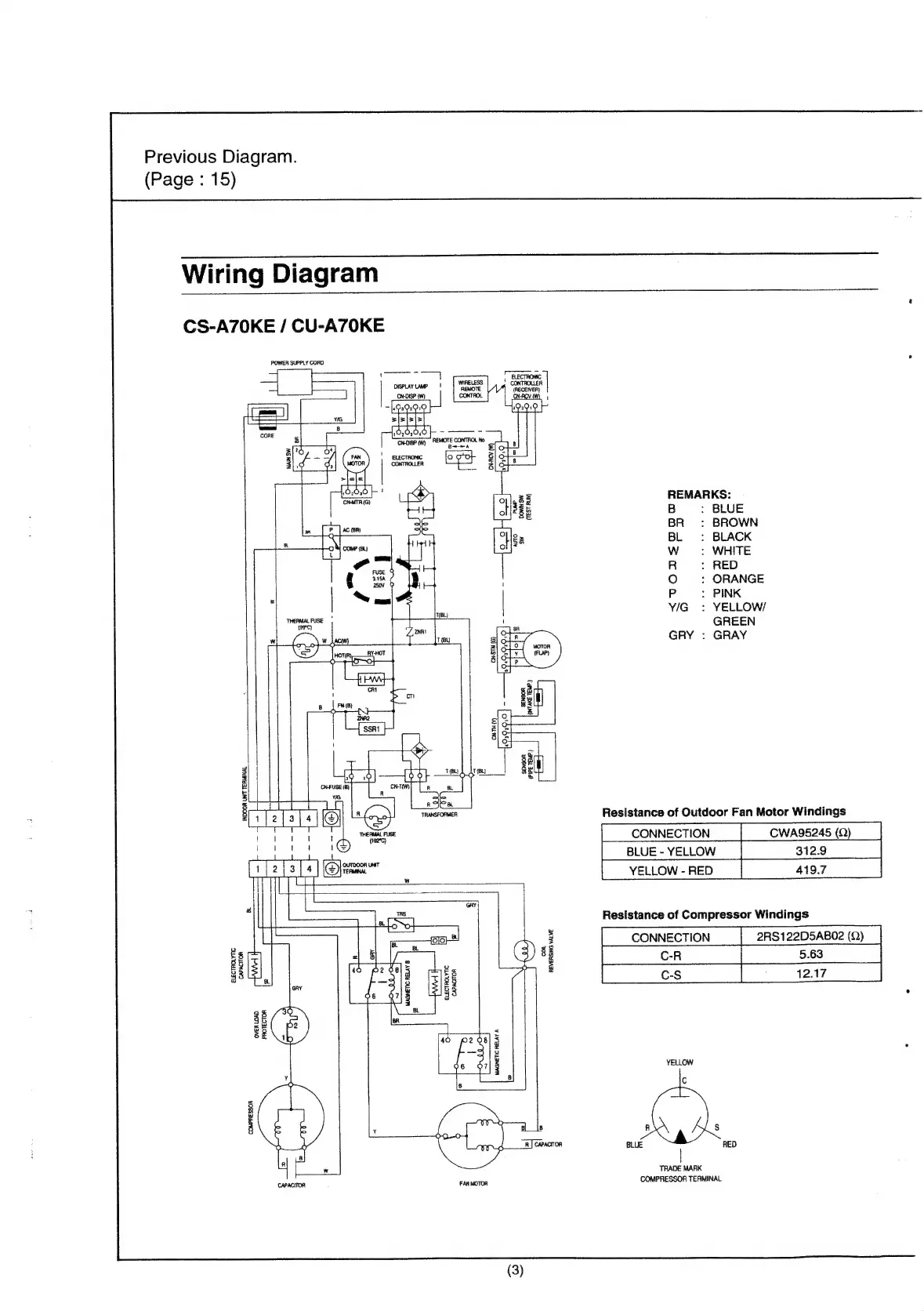

Wiring Diagram
CS-A70KE / CU-A70KE
REMARKS:
B : BLUE
BR : BROWN
BL : BLACK
W : WHITE
R : RED
oO : ORANGE
P : PINK
Y/G : YELLOW/
GREEN
GRY : GRAY
Resistance of Outdoor Fan Motor Windings
CONNECTION CWAQ5245 (Q
BLUE - YELLOW 312.9
YELLOW - RED 419.7
Resistance of Compressor Windings
CONNECTION 2RS122D5AB02 (Q)
pcr Ts
12.17
YELLOW
c
R s
BLUE RED
RADE MARK
COMPRESSOR TERMINAL
:
:
(3)
