Panasonic CS-A9DKD

To Next Page

To Previous Page

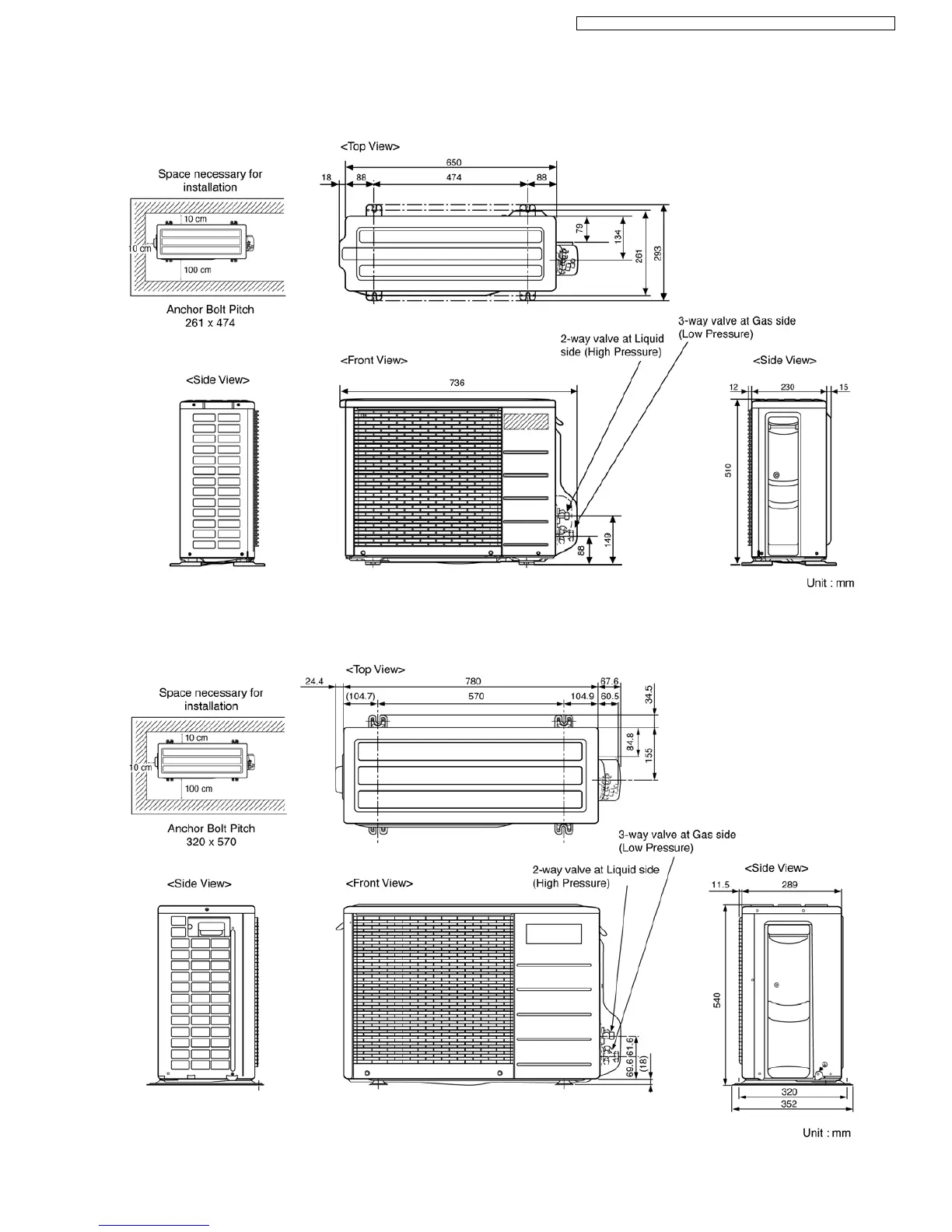

4.2. Outdoor Unit

4.2.1. CU-A7DKD / CU-A9DKD

4.2.2. CU-A12DKD

CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /

Main Page

Default Chapter1
- Table of Contents1
1 Features2
2 Functions3
- Remote Control3
- Indoor Unit4
- Outdoor Unit5
3 Product Specifications6
- Cs-A7Dkd Cu-A7Dkd6
- Cs-A9Dkd Cu-A9Dkd8
- Cs-A12Dkd Cu-A12Dkd10
4 Dimensions12
- Indoor Unit & Remote Control12
- Outdoor Unit13
5 Refrigeration Cycle Diagram14
6 Block Diagram15
7 Wiring Diagram17
8 Operation Details19
- Heating Operation19
- Cooling Operation20
- Soft Dry Operation21
- Powerful Operation33
- Quiet Operation35
- Ionizer Operation37
- Timer Control38
- Random Auto Restart Control38
- Remote Control Signal Receiving Sound38
9 Operating Instructions39
10 Installation Instructions45
- Safety Precautions45
- Attached Accessories47
- Select the Best Location47
- Indoor/Outdoor Unit Installation Diagram47
- Indoor Unit48
- Outdoor Unit51
- 11 2-Way, 3-Way Valve56
  - Air Purging of the Piping and Indoor Unit57
12 Servicing Information63
- Distinction of Lead Free (Pbf) Printed Circuit Board63
- Indoor Electronic Controllers Removal Procedures63
- Indoor Fan Motor and Cross Flow Fan Removal Procedures64
22 12.3. Indoor Fan Motor and Cross Flow Fan Removal65
- Auto OFF/ON Button65
- Remote Control Reset66
13 Troubleshooting Guide67
- Refrigeration Cycle System67
- Relationship between the Condition of the Air Conditioner and Pressure and Electric Current68
- Diagnosis Methods of a Malfunction of a Compressor and 4-Way Valve68
14 Technical Data69
- Thermostat Characteristics69
- Operation Characteristics70
15 Exploded View (Indoor Unit)73
- Cs-A7Dkd Cs-A9Dkd Cs-A12Dkd73
16 Replacement Parts List (Indoor Unit)74
17 Exploded View (Outdoor Unit)75
- Cu-A7Dkd Cu-A9Dkd75
18 Replacement Parts List (Outdoor Unit)77
19 Electronic Circuit Diagram79
- Indoor Unit & Outdoor Unit79
- Remote Control85
- Print Pattern Indoor Unit Printed Circuit Board86
- Print Pattern Indicator & Receiver Printed Circuit Board88
