Panasonic CS-A9DKD

8 Operation Details
8.1. Heating Operation
• Heating operation can be set using remote control.
• This operation is applied to warm the room temperature reaches the setting temperature set on the remote control.
• The remote control setting temperature, which takes the reading of intake air temperature sensor, can be adjusted from 16°C
to 30°C.
• During heating operation, the compressor will stop running and restart as shown in below figure.

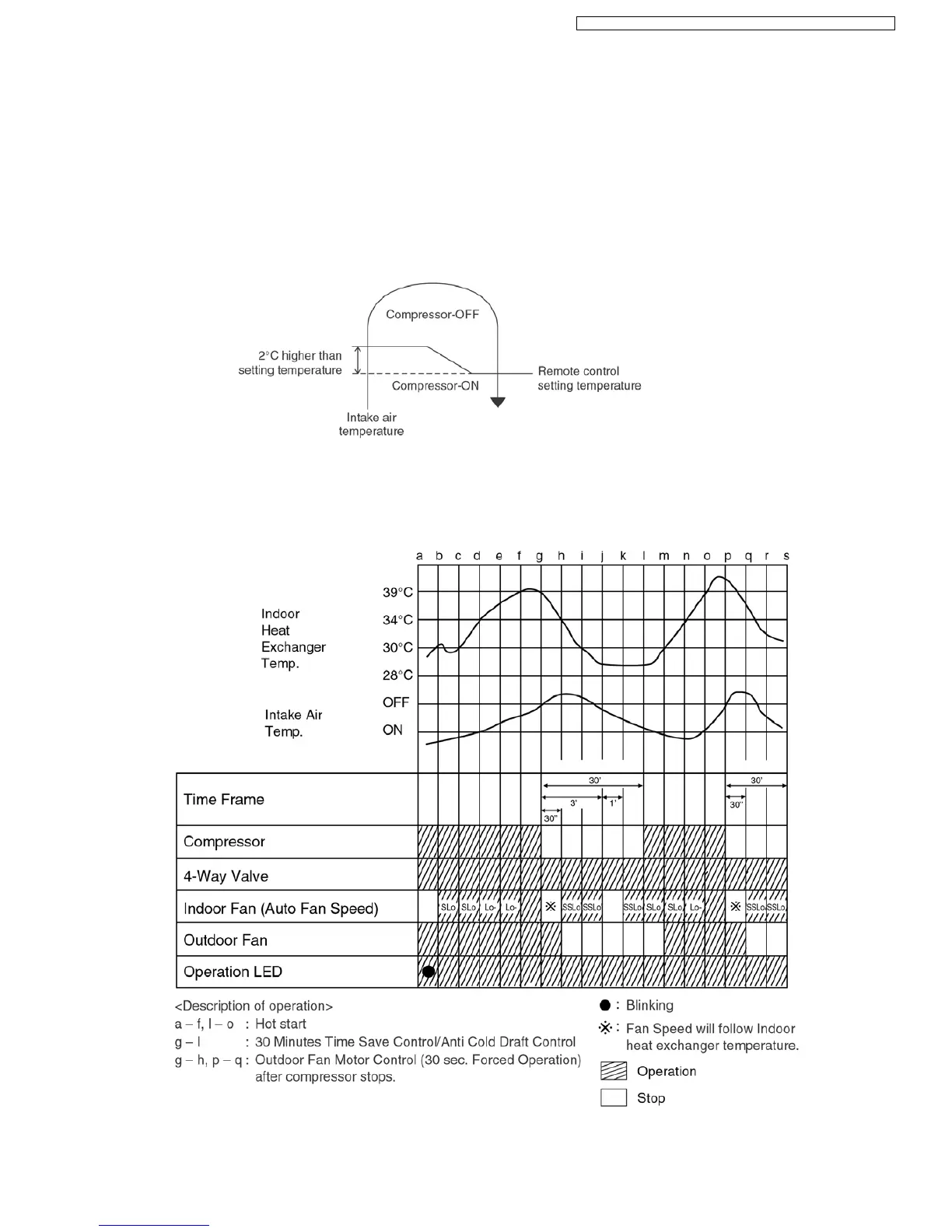

8.1.1. Heating Operation Time Diagram
19
CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /
