Panasonic CS-A9DKD

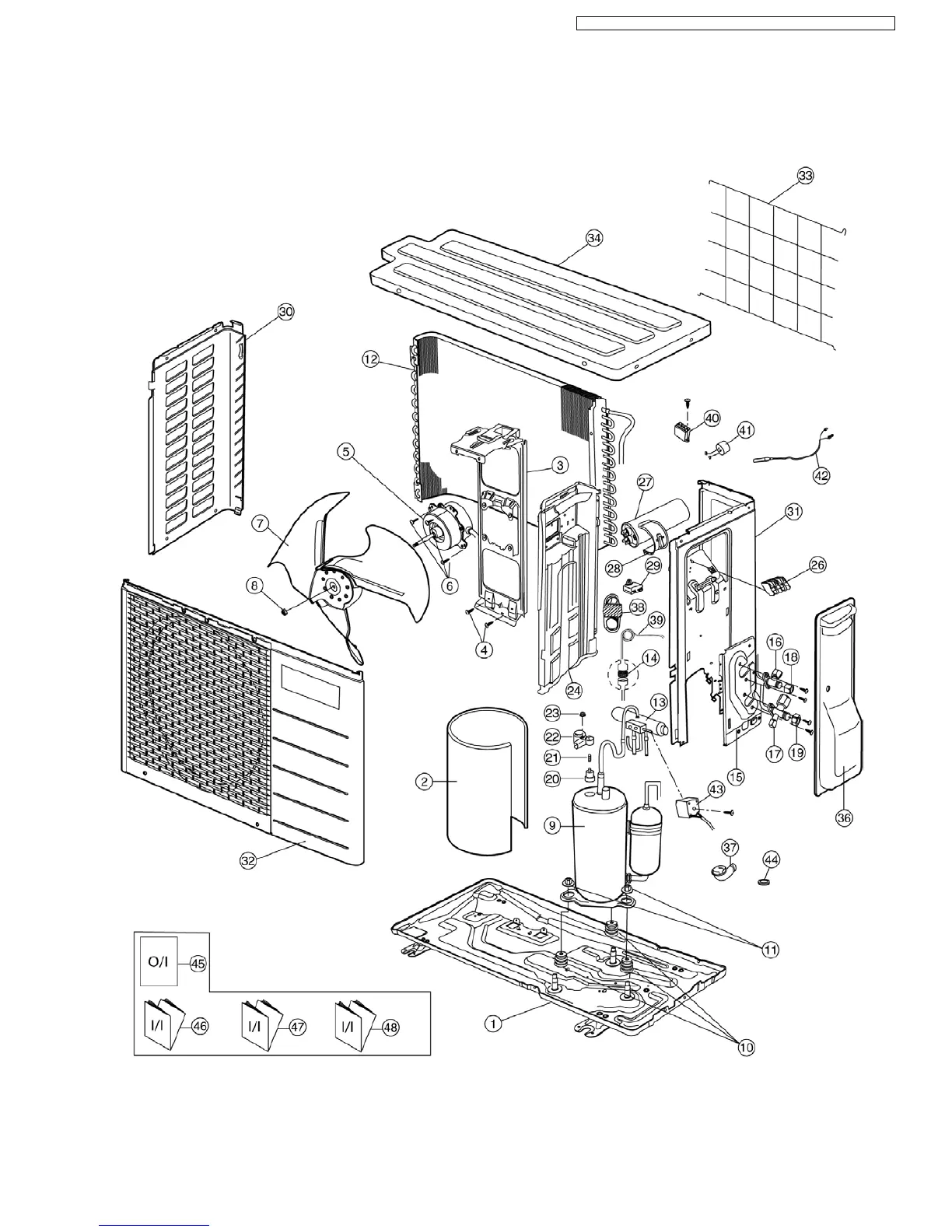

17 Exploded View (Outdoor Unit)
17.1. CU-A7DKD CU-A9DKD
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
75
CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /
