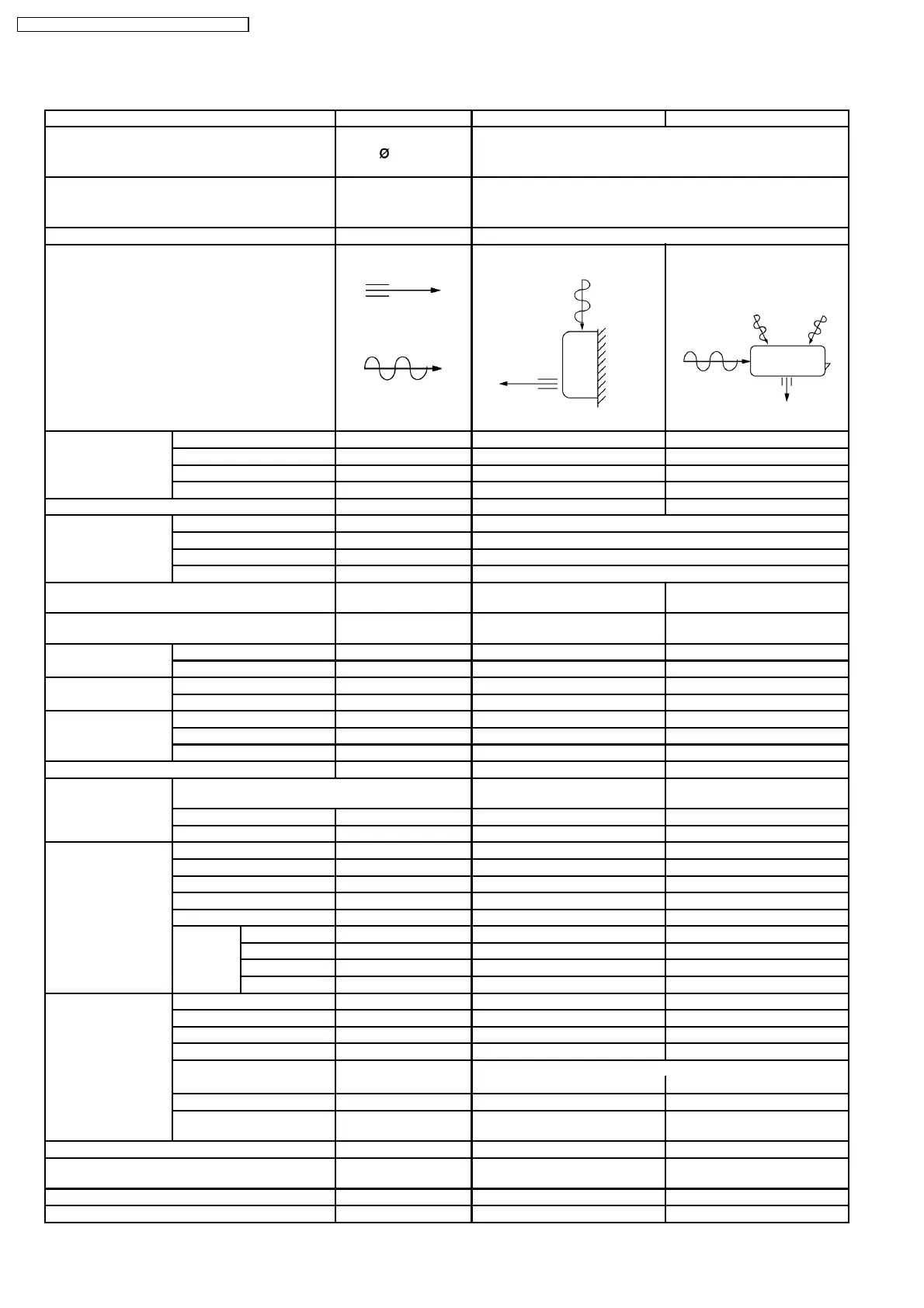

3.2. CS-C24DKV CU-C24DKV
Unit CS-C24DKV CU-C24DKV
Power Source (Phase, Voltage, Cycle) ,V,Hz Single, 220, 60
Cooling Capacity kW (BTU/h) 7.03 (24,000)
Moisture Removal l/h (Pint/h) 4.0 (8.5)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) 13.9 (492) 31.7 (1,120)
Me m
3
/min (cfm) 15.4 (544)
Hi m
3
/min (cfm) 16.9 (597) 51.0 (1,800)
SHi m
3
/min (cfm) 17.5 (617)
Noise Level dB (A) High 46, Low 40 High 55
Electrical Data Input Power kW 2.55
Running Current A 12.0
EER W/W (BTU/hW) 2.76 (9.41)
Starting Current A 63.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 5/8”
L ; Half Union 1/4”
G ; 3-way valve 5/8”
L ; 3-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12
Length mm 650
Power Cord Length m 1.9
Number of core-wire 3 (2.5 mm
2
)
Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)
Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)
Depth inch (mm) 9 - 1/16 (230) 13 - 19/32 (345)
Net Weight lb (kg) 24 (11.0) 131 (59.5)
Compressor Description Rotary (1 cylinder) rolling piston
type
Motor Type Induction (2-poles)
Rated Output kW 1.8
Air Circulation Description Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (6-poles)
Input W 60.0 148.4
Rated Output W 30 72
Fan Speed Low rpm 1,250 540
Medium rpm 1,390
High rpm 1,530 870
SuperHigh rpm 1,590
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Gold Coat)
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×34
FPI 21 18
Size (W × H × L) mm 810 × 315 × 25.4 850.5
870.5
× 714.0 × 25.4
Refrigerant Control Device Capillary Tube
Refrigeration Oil (cm
3
) SUNISO 4GDID or ATMOS
M60
Refrigerant (R-22) g (oz) 1,410 (49.8)
Thermostat Mechanical Control
8
CS-C18DKV CU-C18DKV / CS-C24DKV CU-C24DKV
