Panasonic CS-C9CKP Service Manual

−

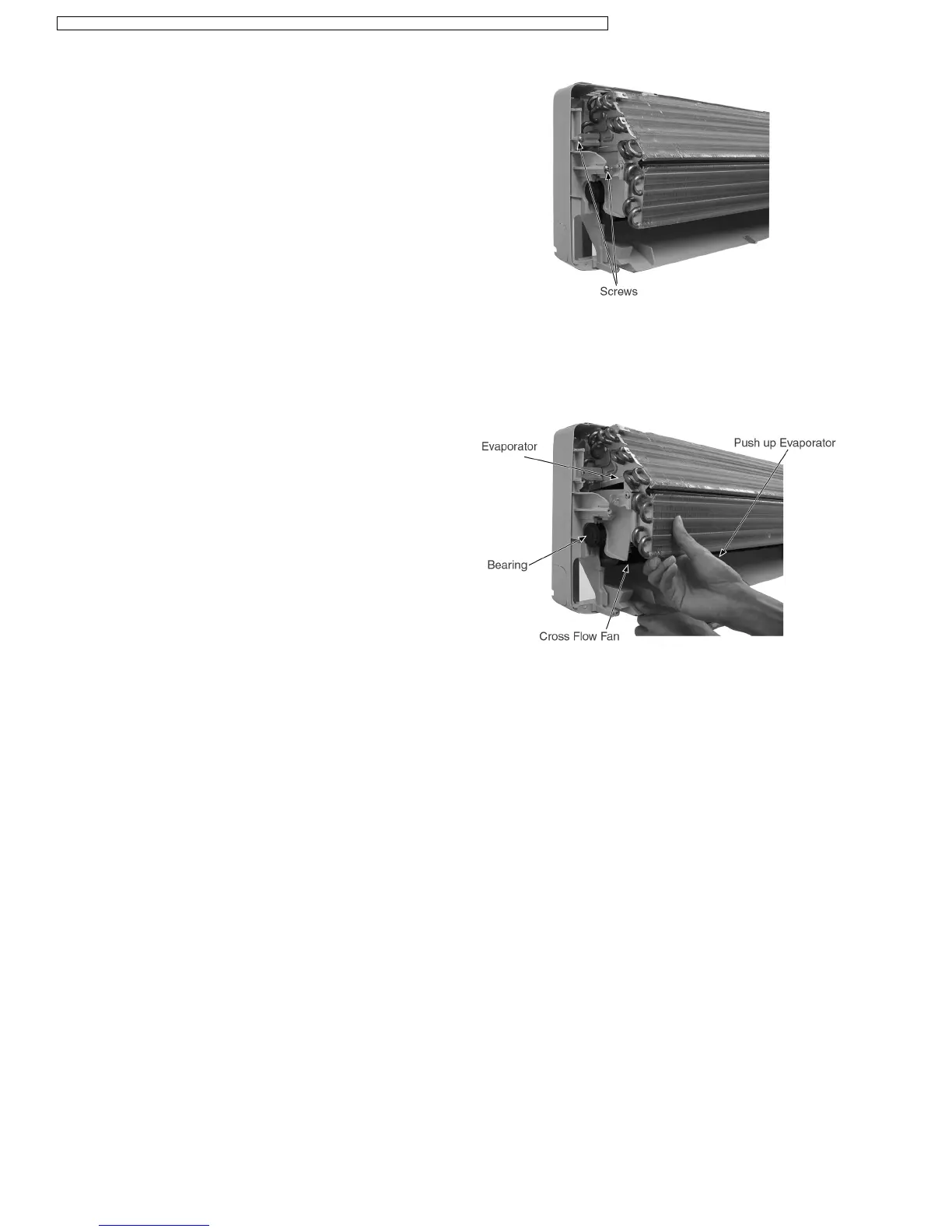

Remove the screws at the left of the Evaporator. (Fig. 8)
−
Remove the Bearing. (Fig. 9)
−
Push up the Evaporator and pull out the Cross Flow Fan
from shaft. By then, Fan Motor can be taken out. (Fig. 9)
Fig. 8
Fig. 9
62
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CKP6

Panasonic CS-C9CKP Specifications

General

Brand	Panasonic
Model	CS-C9CKP
Category	Air Conditioner
Language	English
