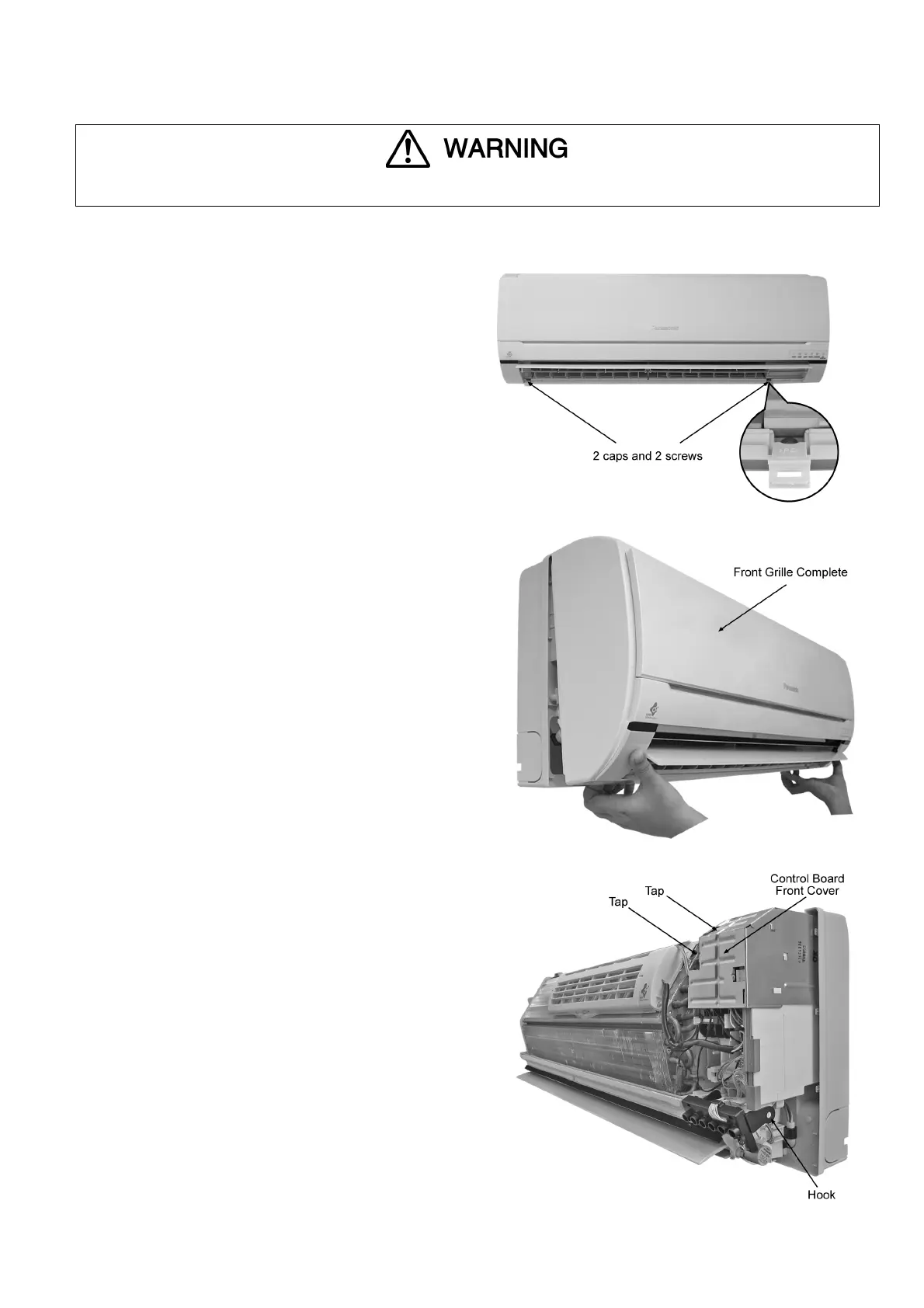

14 Disassembly and Assembly Instructions
14.1. Indoor Electronic Controllers Removal Procedures
Remove the 2 caps and 2 screws at the bottom of the Front
Grille. (Fig. 1)
Remove the Front Grille Complete. (Fig. 2)
Release the taps on the top and on the right side of Control
Board Front Cover. (Fig. 3)
Then remove the Control Board Front Cover. (Fig. 3)
Remove the Indicator Complete. (Fig. 3)
Fig. 1
Fig. 2
Fig. 3
High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
