Panasonic CS-E18DB4EW Service Manual

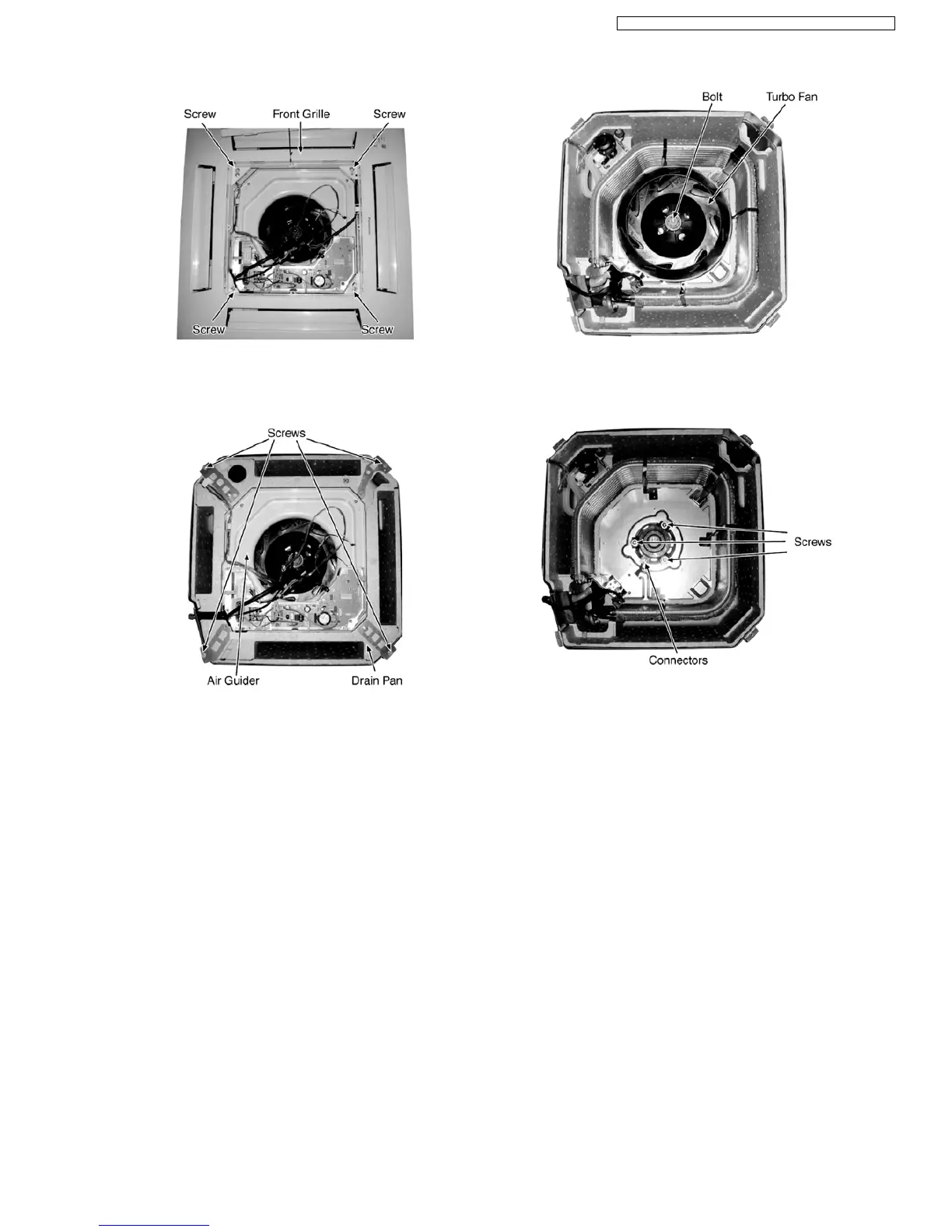

5. Remove the Front Grille by removing the screw A and
screw B, C & D half way open (Fig. 5).
Fig. 5
6. Remove the Air Guider and Drain Pan complete by
removing the screws (Fig. 6).
Fig. 6
7. Remove the Turbo Fan by removing the bolt (Fig. 7).
Fig. 7
8. Remove the Fan Motor by releasing the Fan Motor lead
wire connectors and Fan Motor screws (Fig. 8).
Fig. 8
157
