17.3. Outdoor Electronic Controller Removal Procedure
17.3.1. CU-E7LKE CU-E9LKE CU-E12LKE CU-E15LKE CU-E7LKE-3 CU-E9LKE-3
CU-E12LKE-3
Caution! When handling electronic controller, be careful of electrostatic discharge.
1. Remove the 3 screws of the Top Panel.

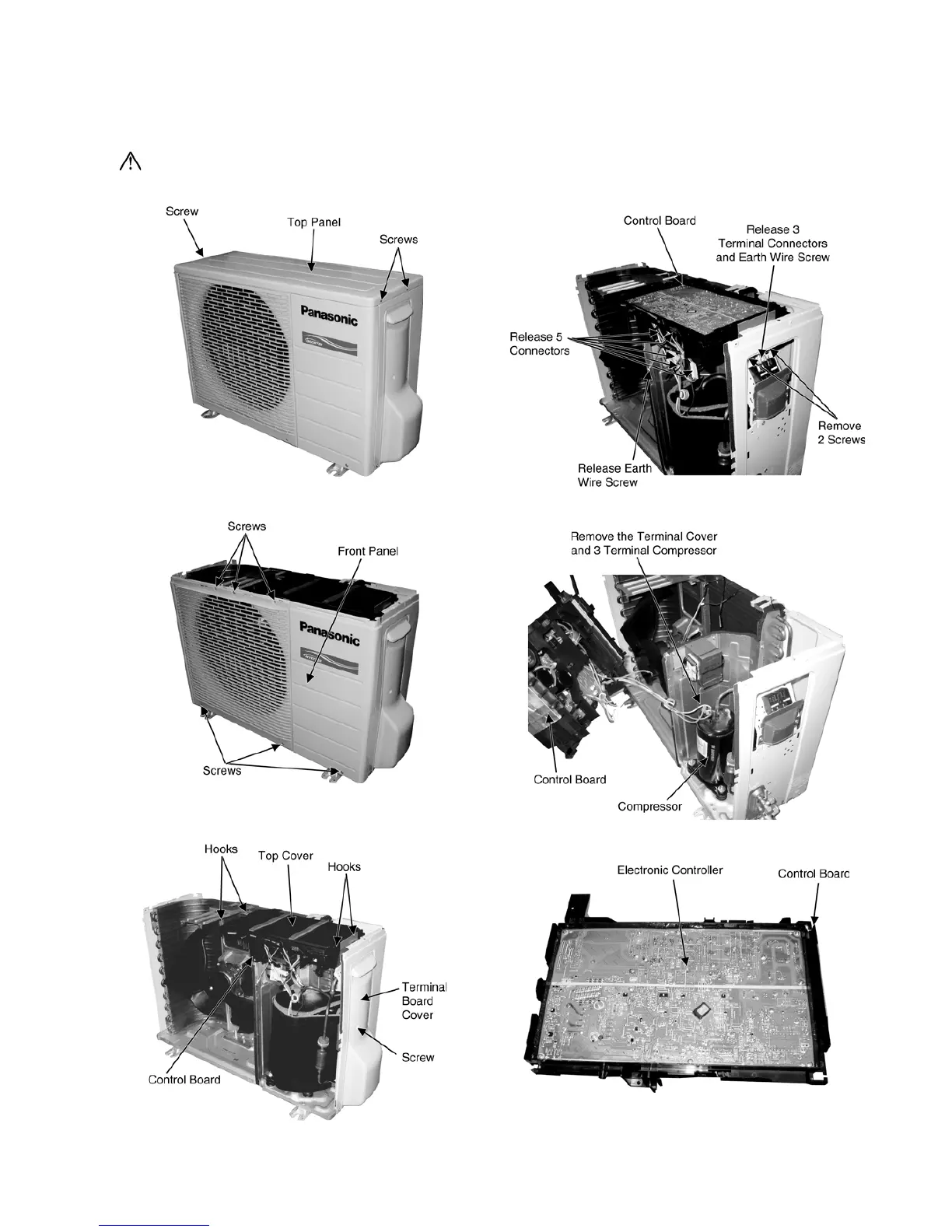

Fig. 1
2. Remove the 6 screws of the Front Panel.
Fig. 2
3. Remove the screw of the Terminal Board Cover.
4. Remove the Top Cover of the Control Board by 4 hooks.
Fig. 3
5. Remove the Control Board as follows:
Fig. 4
Fig. 5
Fig. 6
