Panasonic CS-E7NKR Service Manual

148
17.3.2 CU-E15NKR CU-E18NKR CU-E21NKR

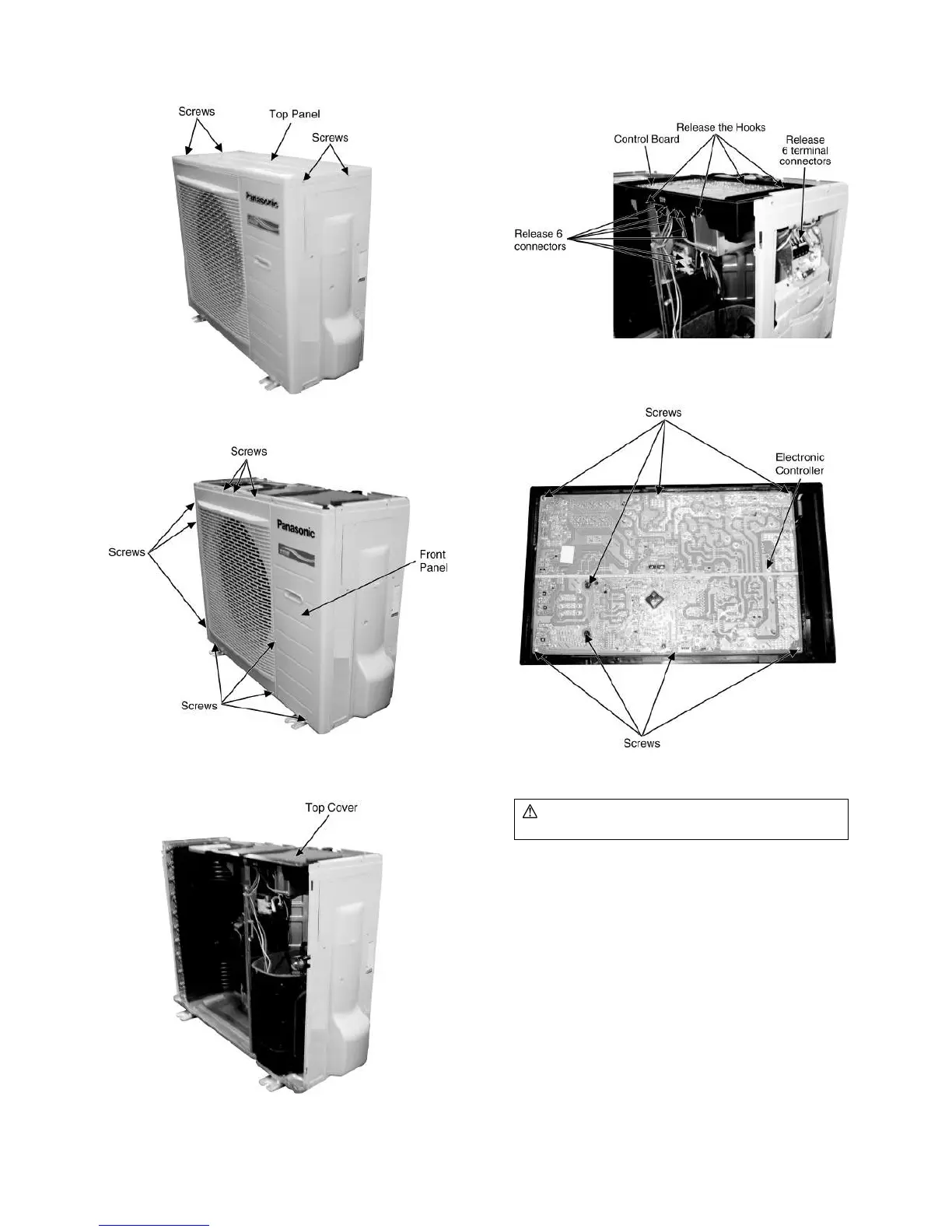

1 Remove the 4 screws of the Top Panel.
Fig.1
2 Remove the 10 screws of the Front Panel.
Fig.2
3 Remove the Top Cover of the Electronic
Controller.
Fig.3
4 Remove the Control Board.
Fig.4
5 Remove the 8 screws of the Electronic
Controller.
Fig.5
Caution! When handling electronic controller, be careful of
electrostatic discharge.
