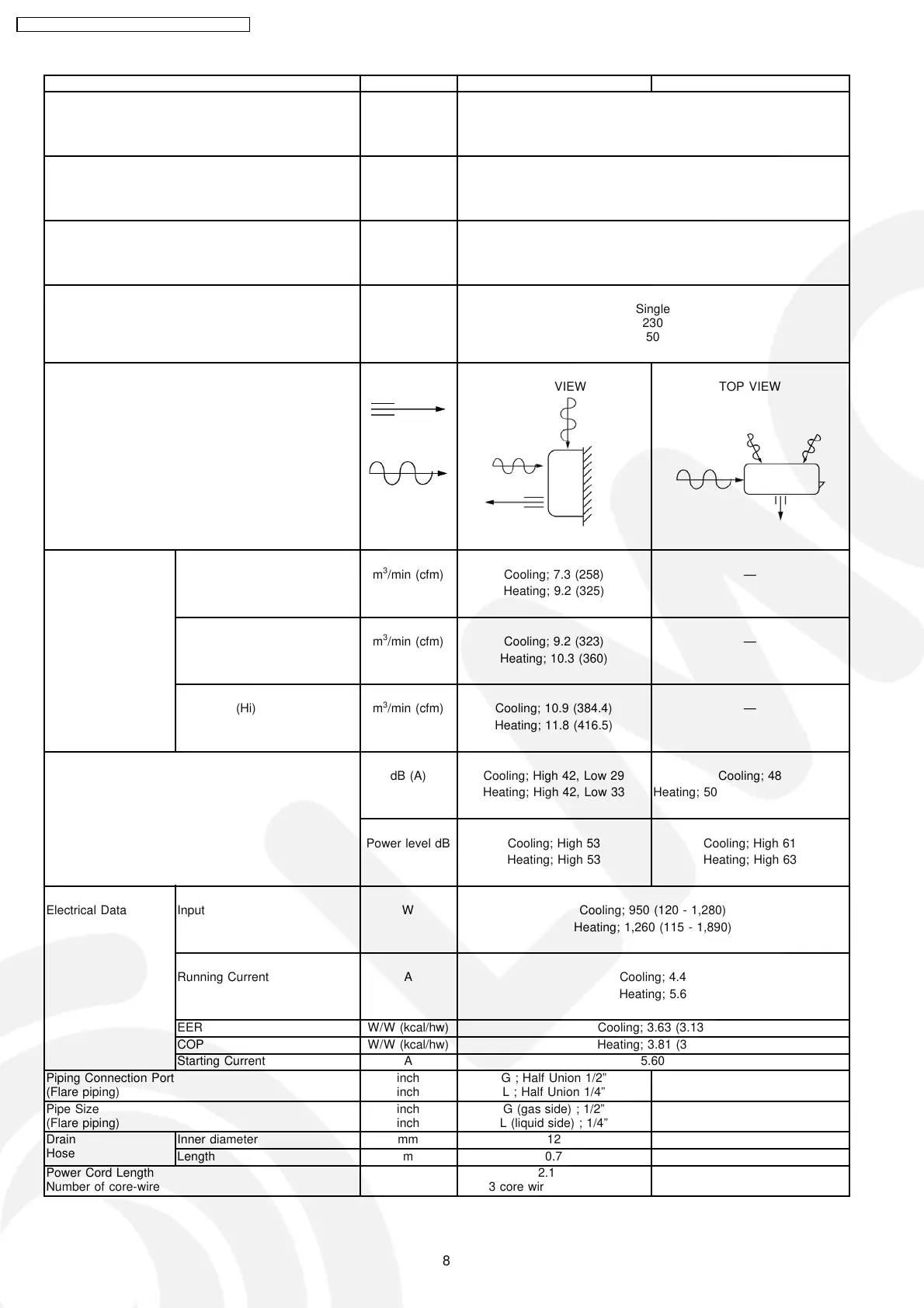

Panasonic CS-E9BKP Service Manual

Unit CS-E12BKP CU-E12BKP5
Cooling Capacity kW
kcal/h
3.45 (0.60 - 4.00)
2,970 (520 - 3,440)
Heating Capacity kW
kcal/h
4.80 (0.60 - 6.50)
4,130 (520 - 5,590)
Moisture Removal l/h
Pint/h
2.0
(4.2)
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) Cooling; 7.3 (258) —
Heating; 9.2 (325)
Indoor Air (Me) m
3
/min (cfm) Cooling; 9.2 (323) —
Heating; 10.3 (360)
Indoor Air (Hi) m
3
/min (cfm) Cooling; 10.9 (384.4) —
Heating; 11.8 (416.5)
dB (A) Cooling; High 42, Low 29 Cooling; 48
Heating; High 42, Low 33 Heating; 50
Noise Level
Power level dB Cooling; High 53 Cooling; High 61
Heating; High 53 Heating; High 63
Electrical Data Input W Cooling; 950 (120 - 1,280)
Heating; 1,260 (115 - 1,890)
Running Current A Cooling; 4.4
Heating; 5.6
EER W/W (kcal/hw) Cooling; 3.63 (3.13)
COP W/W (kcal/hw) Heating; 3.81 (3.28)
Starting Current A 5.60
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
Drain
Hose
Inner diameter mm 12 —
Length m 0.7 —
Power Cord Length
Number of core-wire
2.1 m
3 core wires × 1.5 mm
2
—
—
8
CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic CS-E9BKP Specifications

General

Brand	Panasonic
Model	CS-E9BKP
Category	Air Conditioner
Language	English
