91

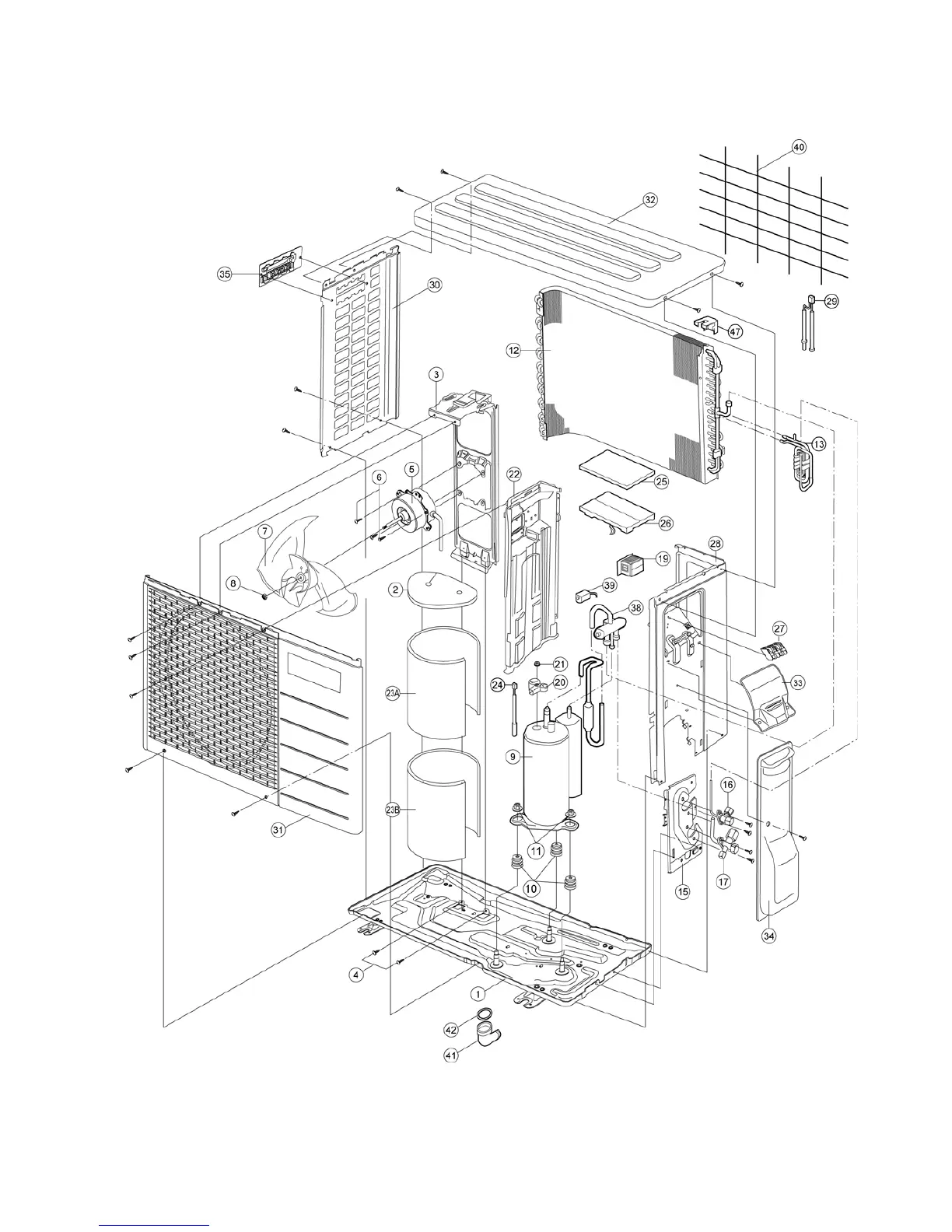

18.2. Outdoor Unit
18.2.1. CU-E7HKE CU-E9HKE CU-E12HKE
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
