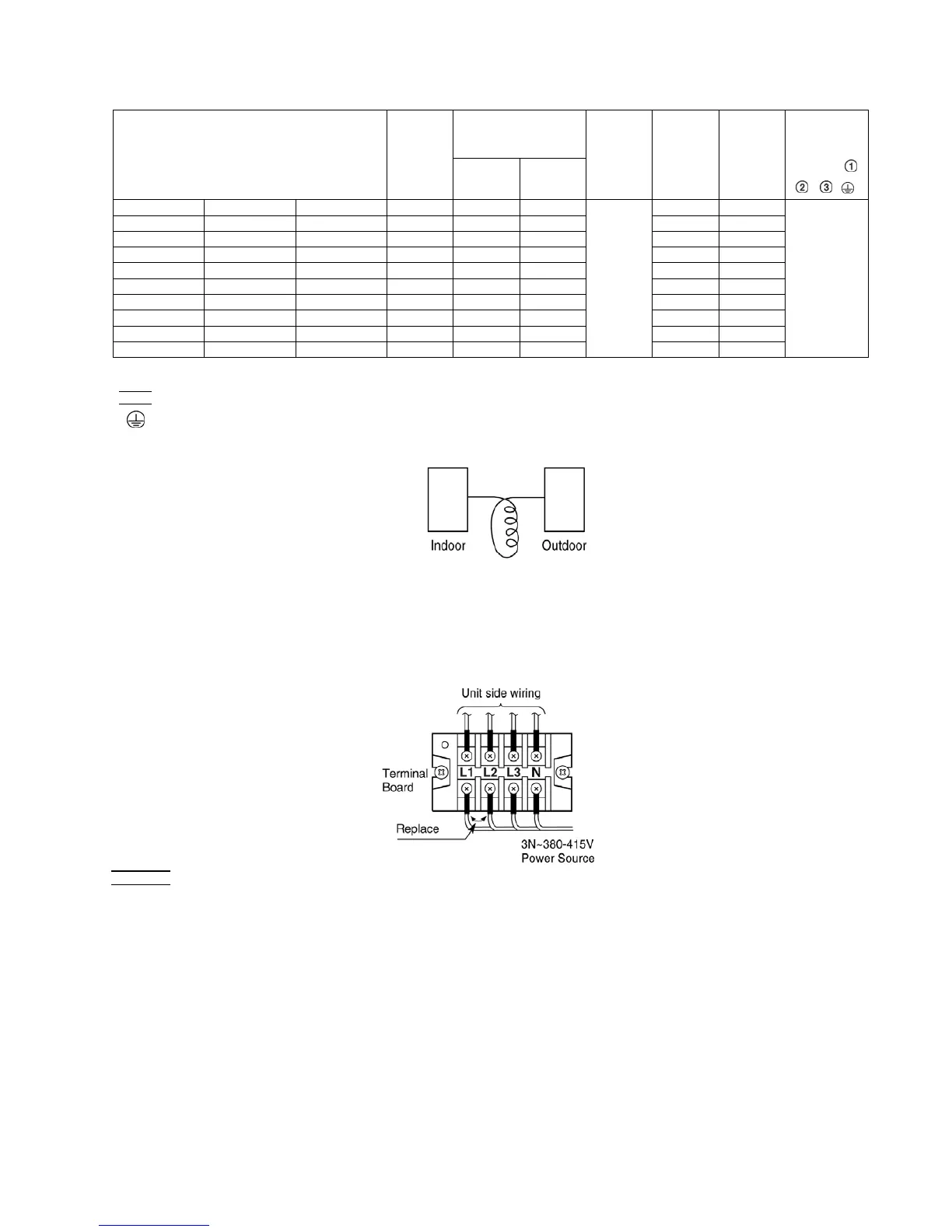

• Power supply specifications
10.5.10. Connecting power supply cables
CAUTION
• For three phase model, never operate the unit by pressing the electromagnetic switch.
• Never correct the phase by switching over any of the wires inside the unit.
Model name
Leakage
current
Circuit breaker
(Minimum Capacity) Minimum
power
4mm
2
cable
Maximum
permissible
impedance
(Ω)
Indoor/outdoor
unit connection
power cables
(terminals ,
, , )
breaker
(A)
Switch
(A)
Fuse
(A)
supply
cables
based on
length (m)
CU-B14DBE5 CU-J14DBE5 220V-240V~ 15 15 15
4 mm
2
35 0.0374
2.5 mm
2
× 4
CU-B18DBE5 CU-J18DBE5 220V-240V~ 20 20 20 24 0.0374
CU-B24DBE5 CU-J24DBE5 220V-240V~ 30 30 30 16 0.0374
CU-B24DBE8 CU-J24DBE8 380V-415V 3N~ 15 15 15 68 0.1017
CU-B28DBE5 CU-J28DBE5 220V-240V~ 30 30 30 16 0.0374
CU-B28DBE8 CU-J28DBE8 380V-415V 3N~ 15 15 15 59 0.1017
CU-B34DBE5 CU-J34DBE5 220V-240V~ 40 40 40 10 0.0374
CU-B34DBE8 CU-J34DBE8 380V-415V 3N~ 20 20 20 38 0.1017
CU-B43DBE8 CU-J43DBE8 380V-415V 3N~ 20 20 20 27 0.1017
CU-B50DBE8 CU-J50DBE8 380V-415V 3N~ 20 20 20 25 0.1017
NOTE
1. Where ground work (earth) is carried out, do not connect the ground return to the gas pipe, water line pipe, grounded circuit of the
telephone and lightning rod, or ground circuit of other product in which earth leakage breaker is incorporated. (Such action is pro-
hibited by statute, etc.)
Make sure the indoor and outdoor connection wires are detangled. (There might be effect to received outside noise.)
2. Use the standard power supply cables for Europe (such as H05RN-F or H07RN-F which conforms to CENELEC (HAR) rating spec-
ifications) or use the cables based on IEC standard. (245IEC57, 245IEC66)
3. Select the particular size of electrical wire for power supply cables in accordance with the standards of the given nation and region.
To Next Page
