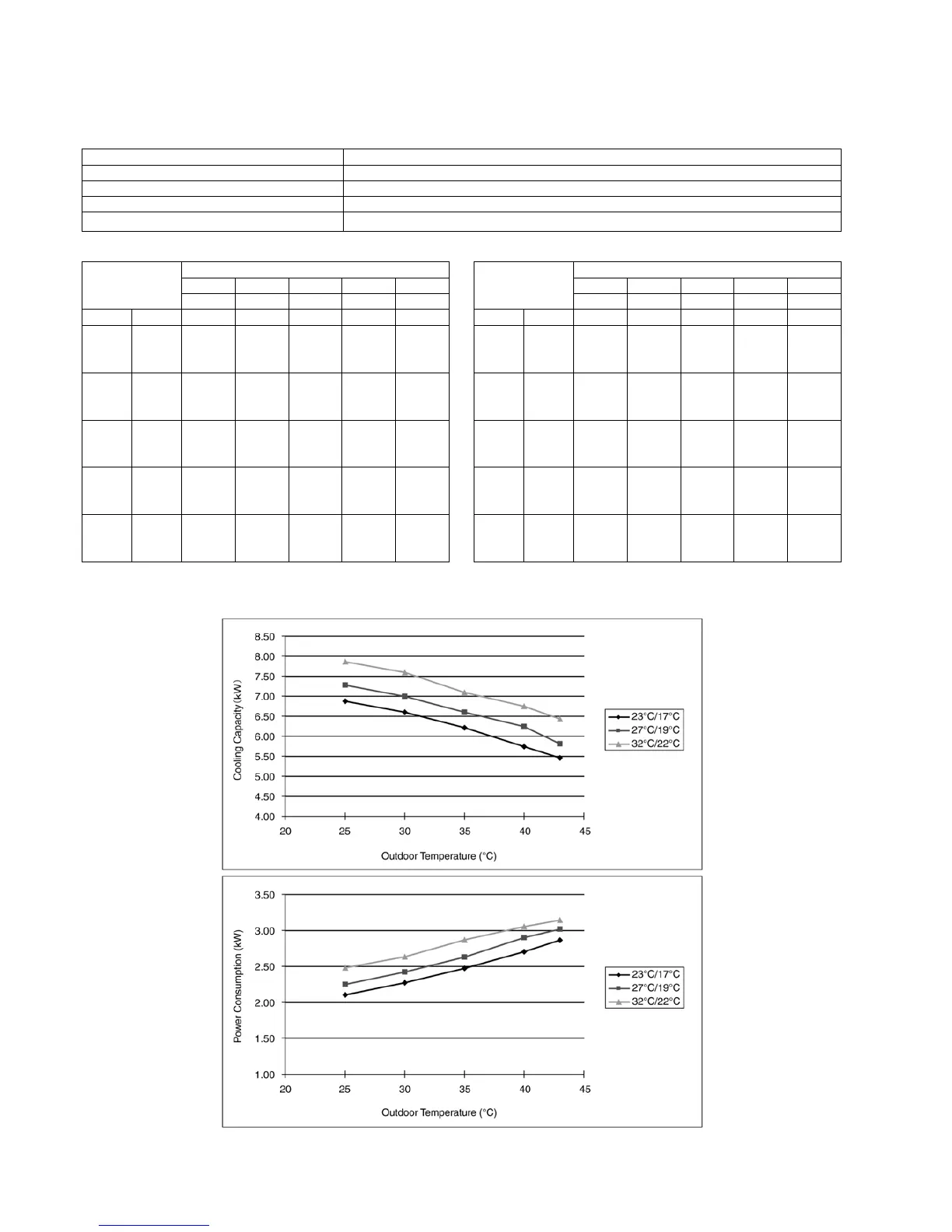

13.2. Capacity and power consumption
13.2.1. Cooling Performance
TC: Cooling Capacity IPT: Cooling Power Consumption
Model Cooling capacities are based on conditions
CS-F24DTE5 Single phase, 50Hz 230V, Three phase, 50Hz 400V
Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.
6.6kW Outdoor temp. 35°C D.B.
Standard air volume 17 m
3
/min
Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C30°C35°C40°C43°C
Air TCTCTCTCTC
D.B. W.B. kW kW kW kW kW
17 6.87 6.60 6.21 5.74 5.46
23 19 7.26 7.03 6.67 6.22 5.90
22 7.92 7.71 7.36 6.88 6.56
17 6.79 6.53 6.15 5.70 5.38
25 19 7.26 7.01 6.64 6.18 5.86
22 7.92 7.68 7.30 6.80 6.50
17 6.71 6.45 6.09 5.66 5.35
27 19 7.27 7.00 6.60 6.24 5.81
22 7.91 7.65 7.25 6.73 6.44
17 6.69 6.45 6.07 5.70 5.42
29 19 7.26 7.00 6.60 6.19 5.88
22 7.88 7.61 7.20 6.74 6.43
17 6.68 6.45 5.64 5.73 5.46
32 19 7.25 7.00 6.60 6.22 5.93
22 7.86 7.59 7.19 6.75 6.43
Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C30°C35°C40°C43°C
Air IPT IPT IPT IPT IPT
D.B. W.B. kW kW kW kW kW
17 2.09 2.27 2.47 2.71 2.87
23 19 2.22 2.40 2.62 2.87 3.04
22 2.40 2.60 2.83 3.10 3.29
17 2.10 2.26 2.47 2.69 2.85
25 19 2.23 2.41 2.62 2.87 3.04
22 2.41 2.60 2.83 3.09 3.28
17 2.10 2.26 2.46 2.67 2.83
27 19 2.24 2.42 2.63 2.86 3.03
22 2.42 2.61 2.84 3.09 3.27
17 2.09 2.26 2.43 2.61 2.72
29 19 2.23 2.41 2.60 2.79 2.91
22 2.46 2.66 2.86 3.07 3.20
17 2.08 2.25 2.41 2.57 2.65
32 19 2.22 2.41 2.58 2.75 2.83
22 2.48 2.64 2.88 3.06 3.16
