9 Operation Details

9.1. Cooling Operation

• Cooling operation can be set using remote control.

• This operation is applied to cool down the room temperature reaches the setting temperature set on the remote control.

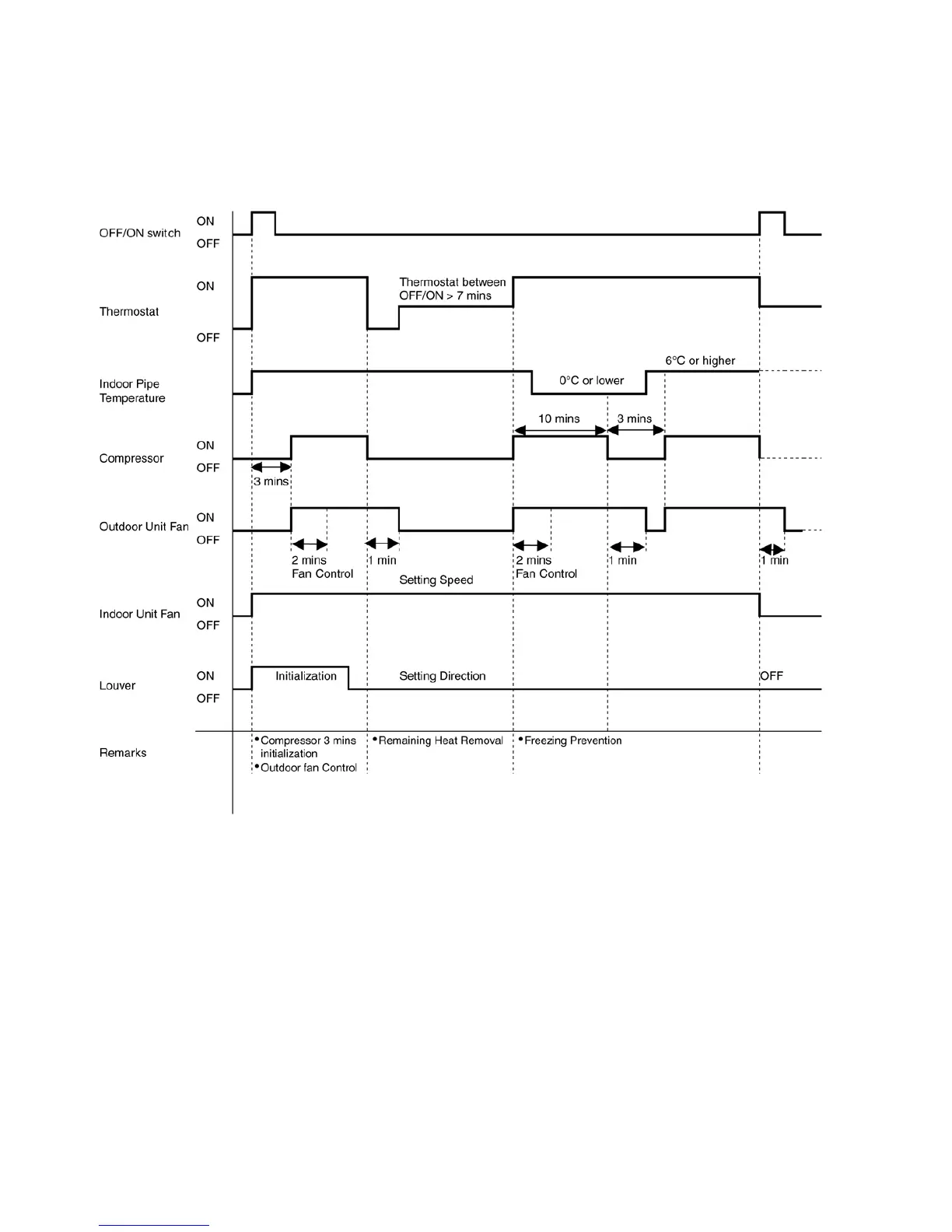

• Cooling Operation Time Diagram.
