58

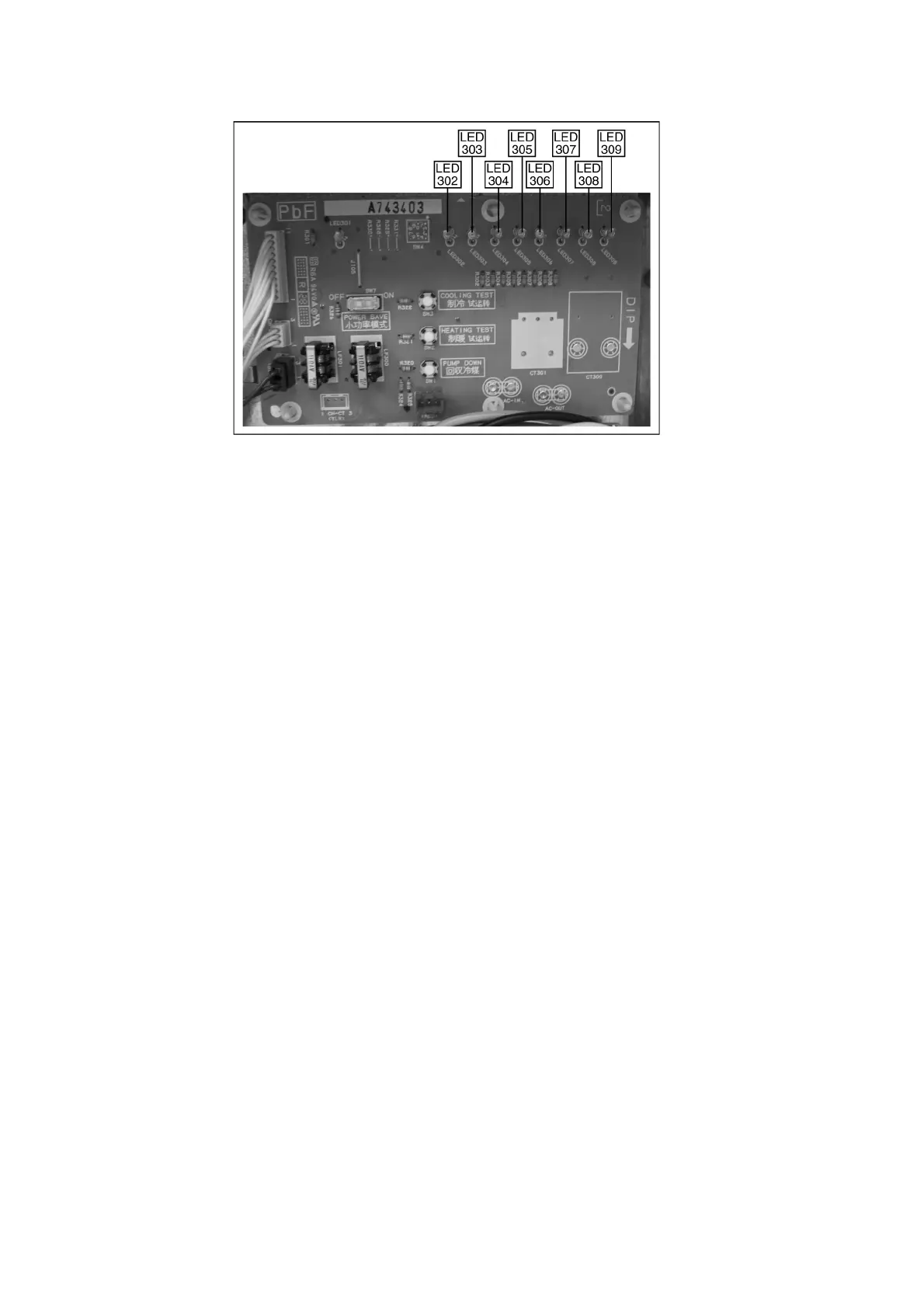

Example self-diagnosis LED location for CU-L50DBE8.
Note : This PCB is for explanation purpose only. It may be different from actual unit.
