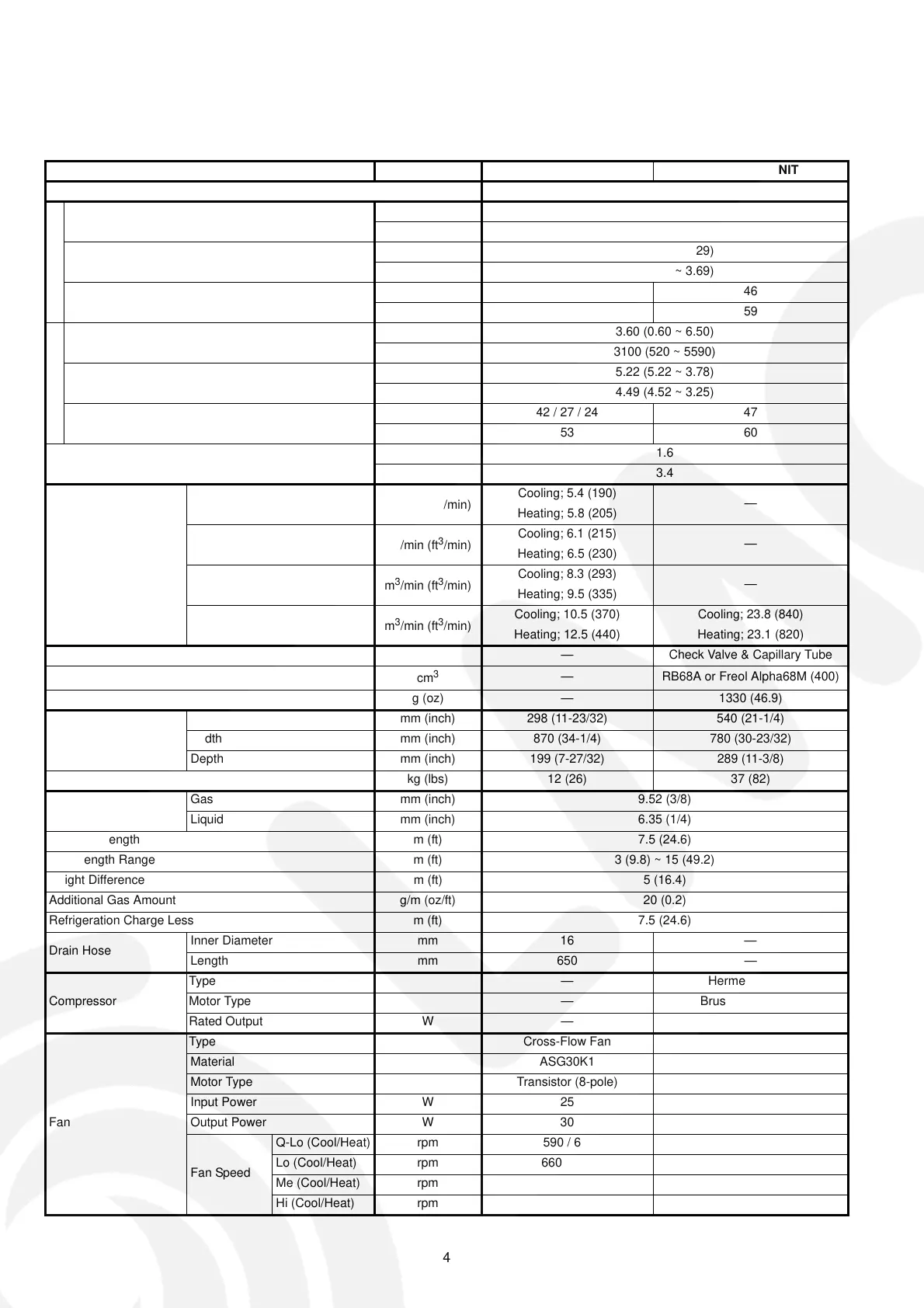

2 Specifications
2.1. CS-HE9GKE CU-HE9GKE
ITEM UNIT INDOOR UNIT OUTDOOR UNIT
Performance Test Condition EUROVENT
C
O
O
L
I
N
G
Capacity
kW 2.60 (0.60 ~ 3.00)
kCal/h 2240 (520 ~ 2580)
EER
W/W 5.10 (5.00 ~ 4.29)
kCal/hW 4.39 (4.33 ~ 3.69)
Noise Level
dB-A (H/L/Q-Lo) 39 / 26 / 23 46
Power level dB 52 59
H
E
A
T
I
N
G
Capacity
kW 3.60 (0.60 ~ 6.50)
kCal/h 3100 (520 ~ 5590)
COP
W/W 5.22 (5.22 ~ 3.78)
kCal/hW 4.49 (4.52 ~ 3.25)
Noise Level
dB-A (H/L/Q-Lo) 42 / 27 / 24 47
Power level dB 53 60
Moisture Removal
l/h 1.6
pt/h 3.4
Air Volume
Q-Lo
m
3
/min (ft
3
/min)
Cooling; 5.4 (190)
—
Heating; 5.8 (205)
Lo
m
3
/min (ft
3
/min)
Cooling; 6.1 (215)
—
Heating; 6.5 (230)
Me
m
3
/min (ft
3
/min)
Cooling; 8.3 (293)
—
Heating; 9.5 (335)
Hi
m
3
/min (ft
3
/min)
Cooling; 10.5 (370) Cooling; 23.8 (840)
Heating; 12.5 (440) Heating; 23.1 (820)
Refrigeration Control Device — Check Valve & Capillary Tube
Refrigeration Oil
cm
3
— RB68A or Freol Alpha68M (400)
Refrigerant (R410A) g (oz) — 1330 (46.9)
Dimension
Height mm (inch) 298 (11-23/32) 540 (21-1/4)
Width mm (inch) 870 (34-1/4) 780 (30-23/32)
Depth mm (inch) 199 (7-27/32) 289 (11-3/8)
Net Weight kg (lbs) 12 (26) 37 (82)
Pipe Diameter
Gas mm (inch) 9.52 (3/8)
Liquid mm (inch) 6.35 (1/4)
Standard Length m (ft) 7.5 (24.6)
Pipe Length Range m (ft) 3 (9.8) ~ 15 (49.2)
Height Difference m (ft) 5 (16.4)
Additional Gas Amount g/m (oz/ft) 20 (0.2)
Refrigeration Charge Less m (ft) 7.5 (24.6)
Drain Hose
Inner Diameter mm 16 —
Length mm 650 —
Compressor
Type — Hermetic Motor
Motor Type — Brushless (6-pole)
Rated Output W — 750
Fan
Type Cross-Flow Fan Propeller Fan
Material ASG30K1 PP
Motor Type Transistor (8-pole) Induction (6-pole)
Input Power W 25 65
Output Power W 30 40
Fan Speed
Q-Lo (Cool/Heat) rpm 590 / 690 —
Lo (Cool/Heat) rpm 660 / 750 —
Me (Cool/Heat) rpm 880 / 990 770 / -
Hi (Cool/Heat) rpm 1100 / 1230 —
